Arrco AA34KP-BFV Scroll Compressor 34,000 BTU (3 Ton) ZP34K_E-PFV

Product Description

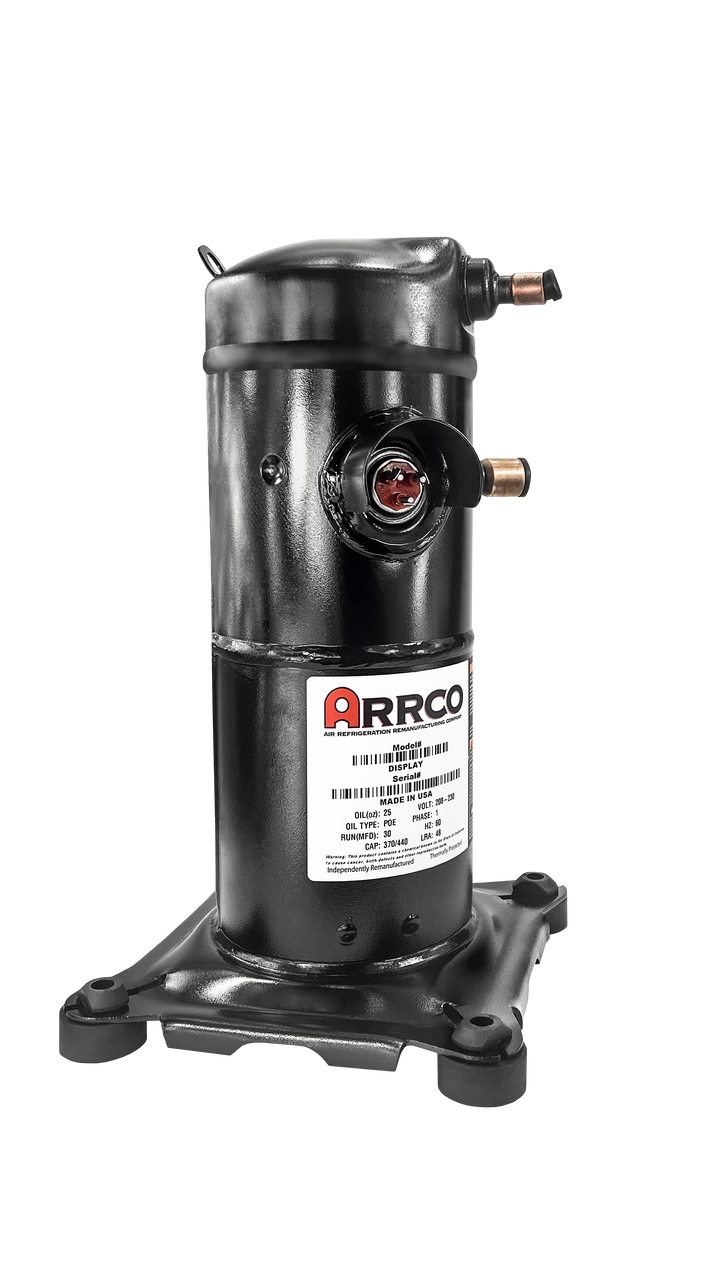

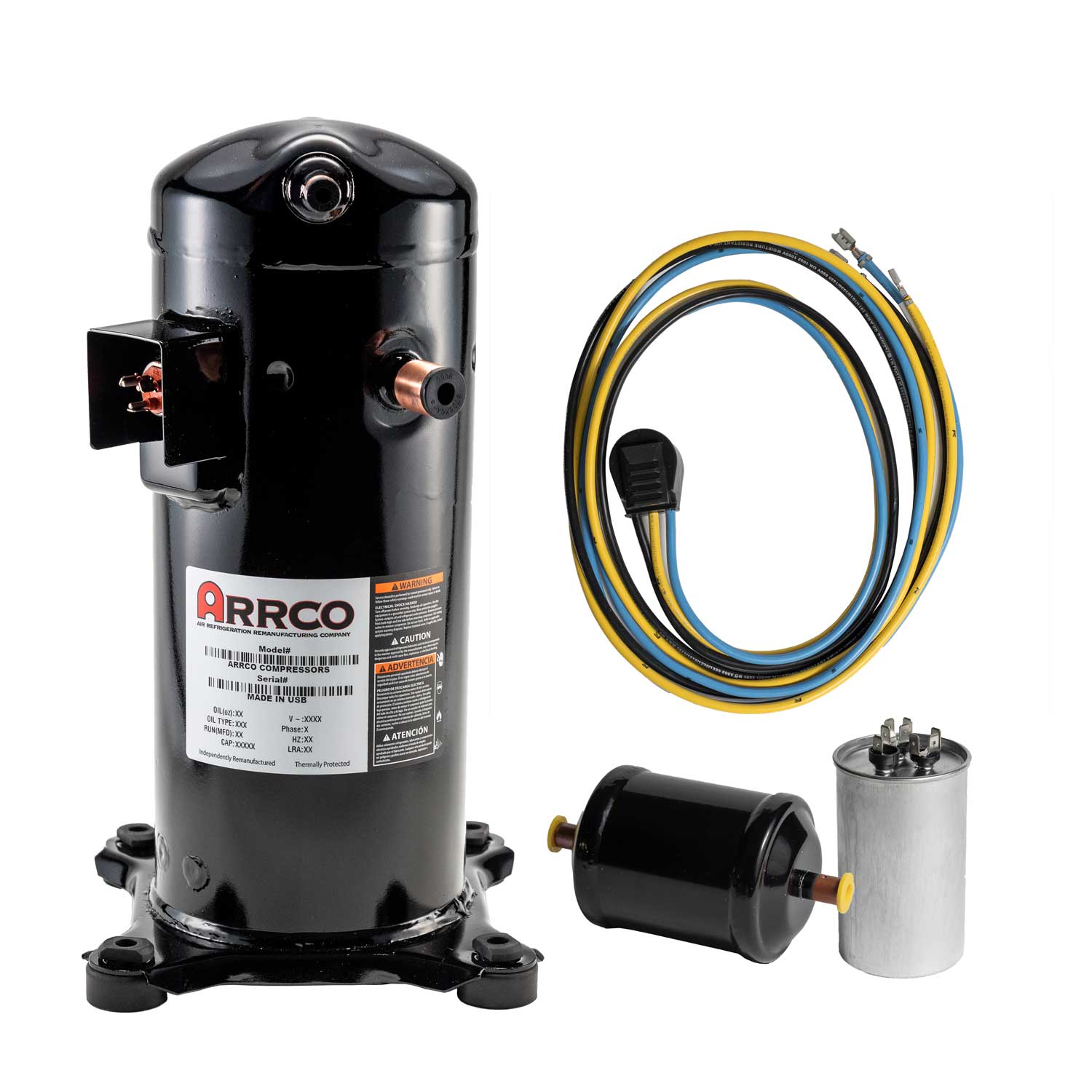

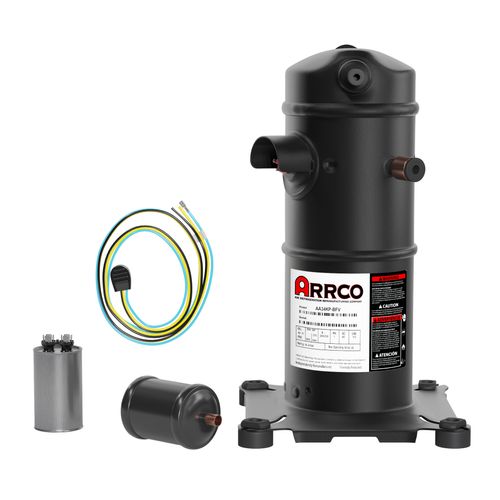

Arrco AA34KP-BFV is a remanufactured scroll compressor kit rated at 34,000 BTU (3 ton) for R-410A air conditioning systems. It operates on 208-230 V single-phase, 60 Hz power and ships with POE oil, a run/start capacitor, filter drier, and a 5-foot wiring harness. The unit uses a 3/4 in suction connection and a 1/2 in discharge connection and cross-references select Copeland scroll models.

• Remanufactured scroll compressor for R-410A; 34,000 BTU (3 ton) capacity
• 208-230 V, single-phase, 60 Hz operation with POE oil lubrication

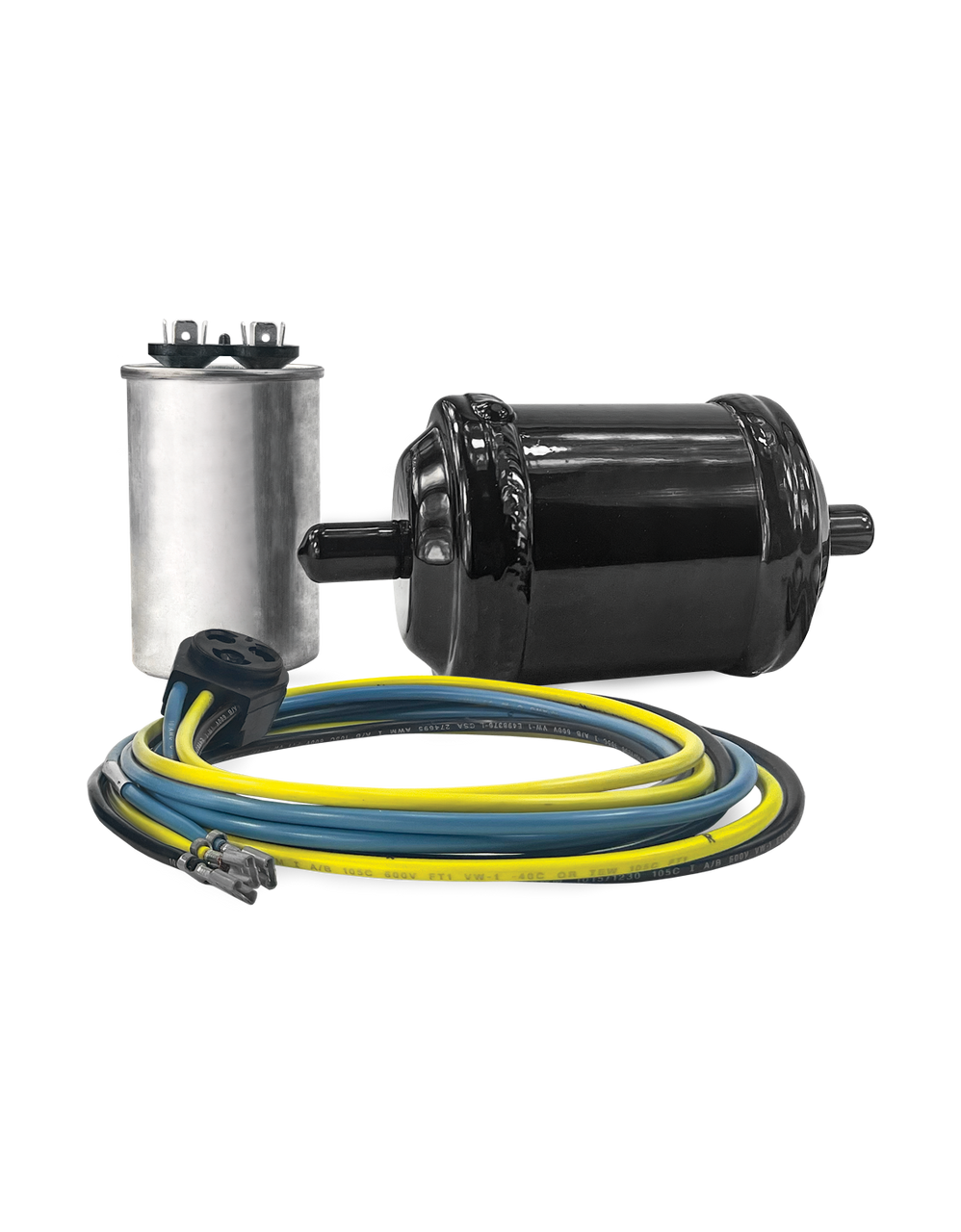

• Includes run/start capacitor, filter drier, and 5 ft wiring harness; suction 3/4 in, discharge 1/2 in

Product Highlights

Remanufactured 3-ton R-410A scroll compressor; 208-230 V 1-phase; includes POE oil, capacitor, filter drier and 5 ft wiring harness; Copeland cross-reference ZP34K_E-PFV.

Product Information

Standard Information

• Brand: ARRCO
• Manufacturer Part Number: AA34KP-BFV

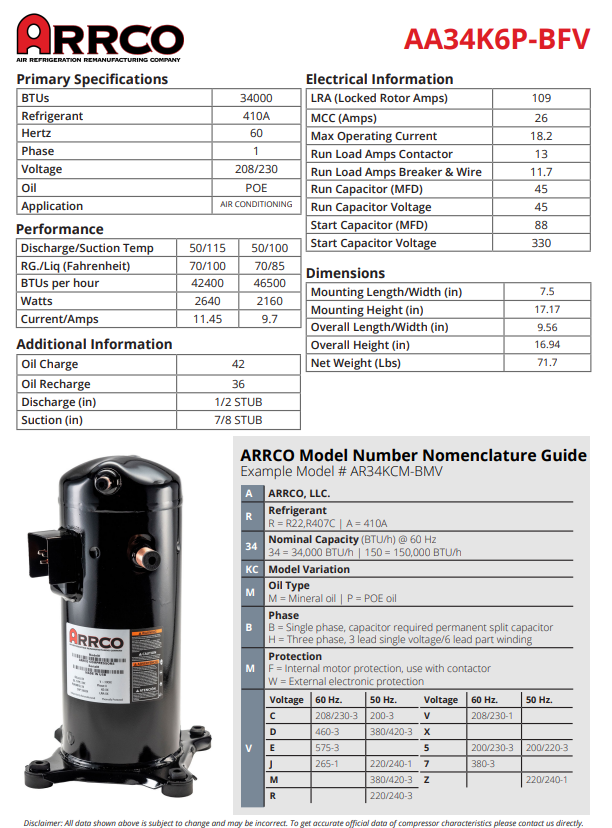

Technical Specifications

• Brand: Arrco
• MPN: AA34KP-BFV
• Product Type: Scroll Compressor
• Condition: Remanufactured
• Refrigerant: R-410A
• Capacity (BTU/hr): 34,000
• Tonnage: 3 ton
• Input Voltage: 208-230 V
• Phase: Single-phase
• Frequency: 60 Hz
• Suction Connection: 3/4 in
• Discharge Connection: 1/2 in
• Oil Type: POE
• Included Accessories: Run/start capacitor; filter drier; 5 ft wiring harness; POE oil
• Length: 7.5 in
• Width: 9.56 in
• Height: 16.02 in
• Weight: 69 lbs
• Cross Reference / Replacement MPNs: Copeland ZP34K_E-PFV; replaces ZP34K3E-PFV, ZP34K5E-PFV, ZP36K5E-PFV
• Application: Air conditioning; residential and light commercial
• Locked Rotor Amps (LRA): 109 A
• Maximum Operating Current: 18.2 A
• Run Load Amps (contactor): 13 A
• Run Capacitor: 45 MFD / 440 V
• Start Capacitor: 88 MFD / 330 V
• Oil Charge: 42 oz (recharge 36 oz)
