Arrco AA31KP-BFV Remanufactured Compressor with Kit 31,000 BTU (2.5 Ton) ZP31K5E-PFV

Product Description

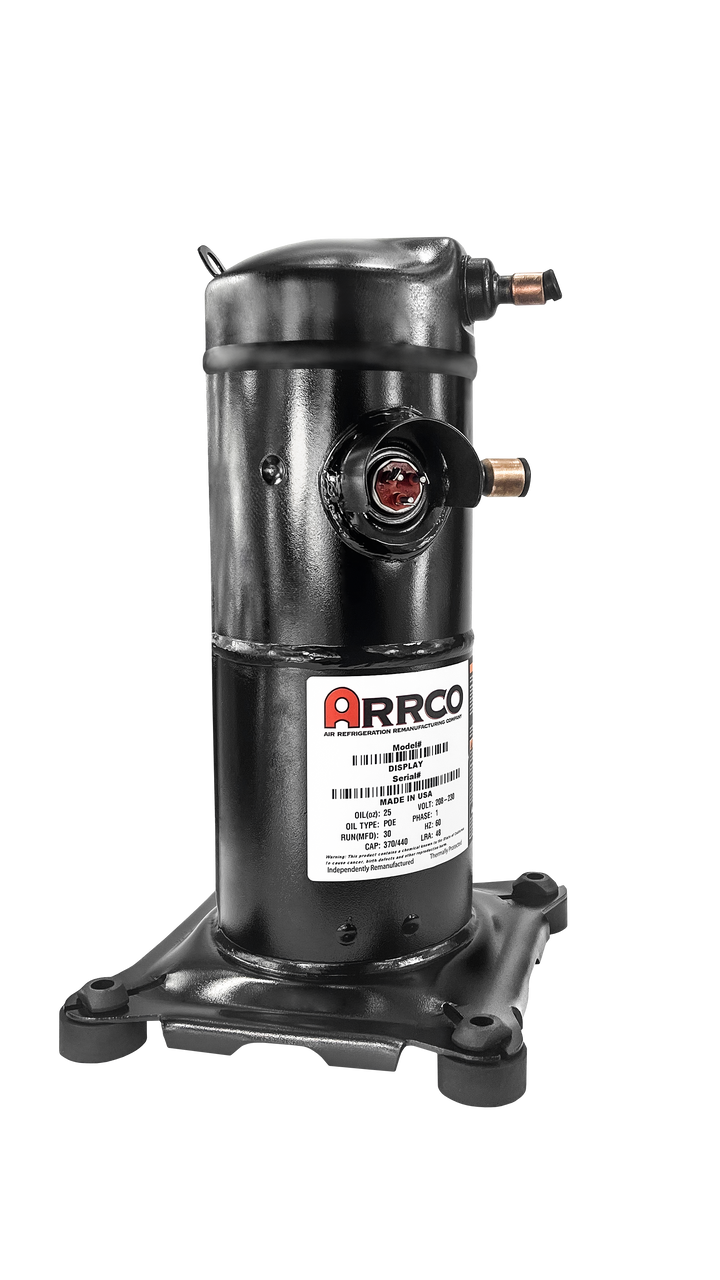

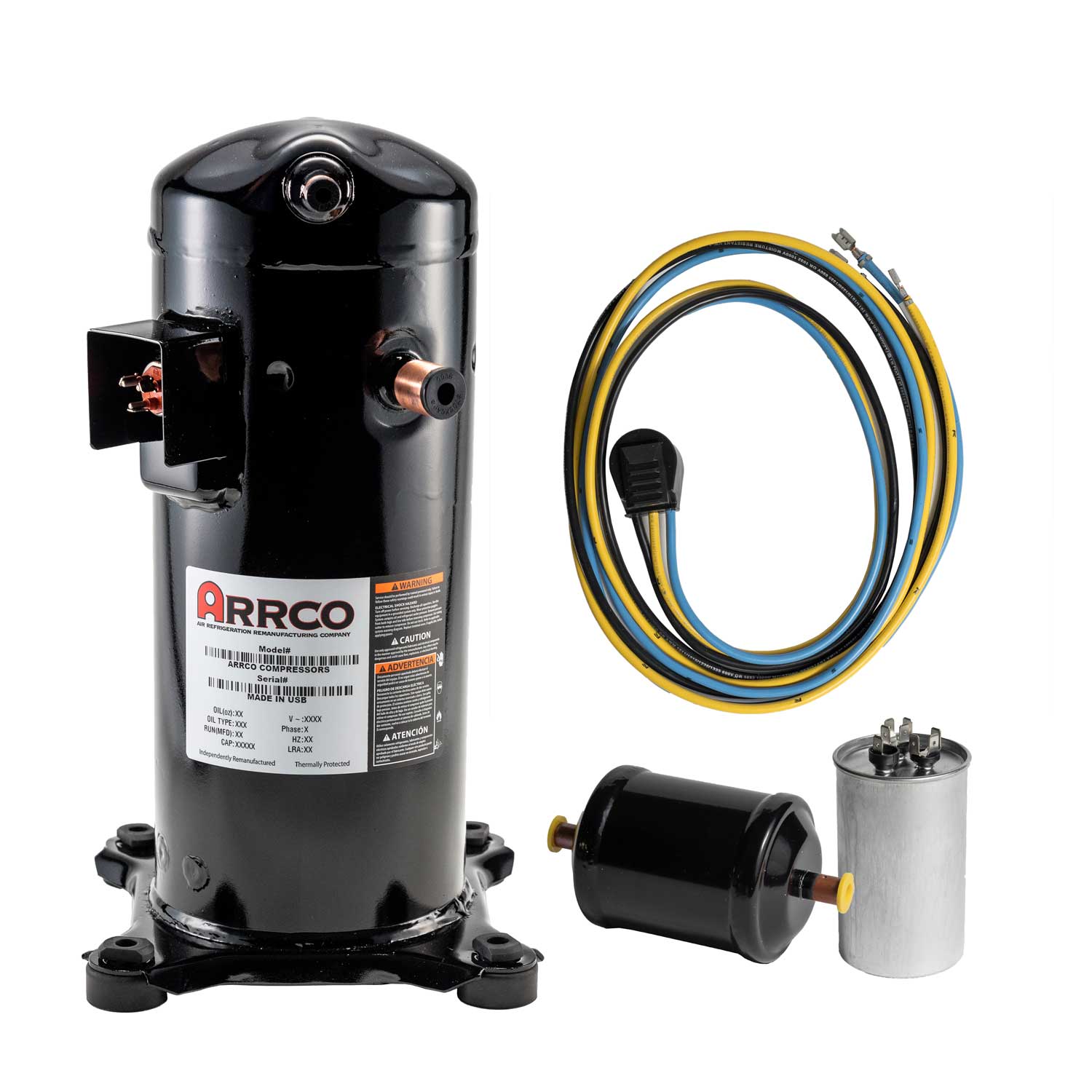

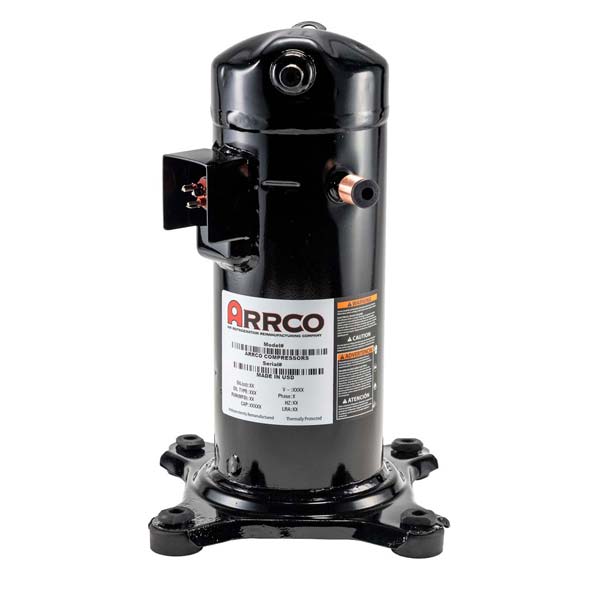

Arrco AA31KP-BFV is a remanufactured scroll compressor kit rated 31,000 BTU (2.5 ton) for R-410A air conditioning systems. The unit is configured for 208-230 V single-phase, 60 Hz operation and uses POE oil. The kit includes a run capacitor, filter drier and a 5-foot wiring harness, and the compressor features a 1/2 inch discharge and 3/4 inch suction fitting for HVAC replacement applications.

• 31,000 BTU (2.5 ton) capacity; designed for R-410A refrigerant
• 208-230 V, single-phase, 60 Hz electrical rating; POE oil charge
• Includes capacitor, filter drier, and 5 ft wiring harness; 1/2" discharge and 3/4" suction fittings

Product Highlights

Remanufactured scroll compressor kit for R-410A systems, 31,000 BTU (2.5 ton), 208-230 V single-phase, includes capacitor, filter drier and 5 ft wiring harness.

Product Information

Standard Information

• Brand: ARRCO
• Manufacturer Part Number: AA31KP-BFV
• Country of Origin: United States

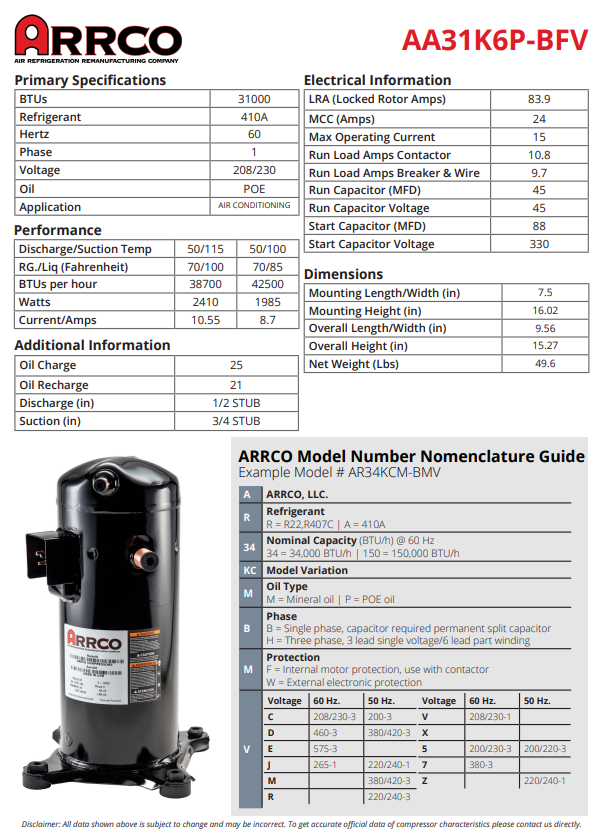

Technical Specifications

• Brand: Arrco
• Manufacturer Part Number (MPN): AA31KP-BFV
• Product Type: Remanufactured scroll compressor with kit
• Compressor Type: Scroll
• Refrigerant: R410A
• Capacity (BTU/hr): 31,000 BTU/hr
• Capacity (Tons): 2.5 Ton
• Input Voltage: 208-230 V
• Phase: Single-phase
• Frequency: 60 Hz
• Discharge Fitting Size: 1/2 inch (stub)
• Suction Fitting Size: 3/4 inch (stub)
• Oil Type: POE oil

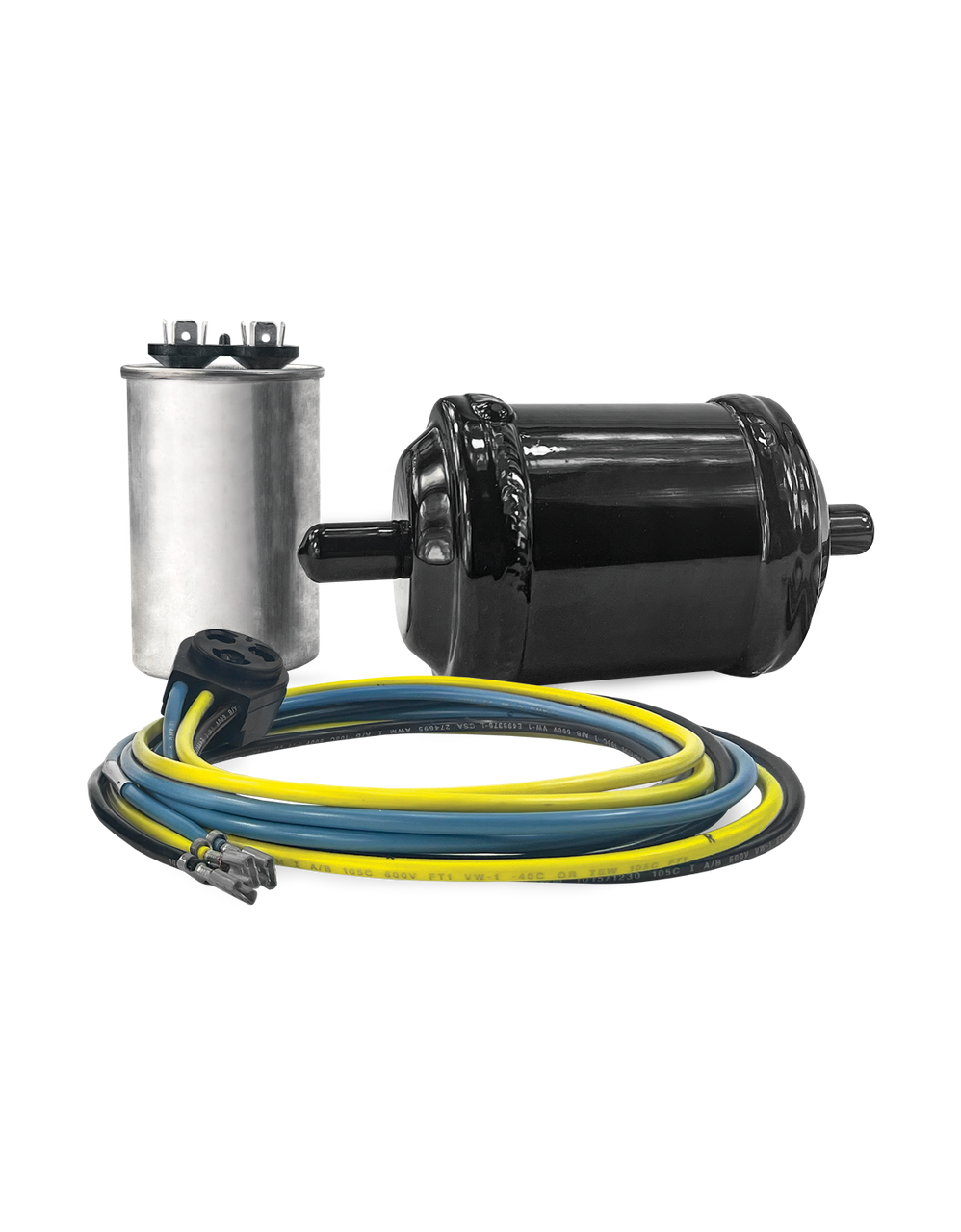

• Includes: Capacitor, filter drier, 5 ft wiring harness
• Locked Rotor Amps (LRA): 79
• Max Operating Current (Amps): 17.8
• Run Capacitor: See product label
• Start Capacitor (MFD): 88
• Start Capacitor Voltage: 330
• Run Capacitor Voltage: 370/440
• Application: Air conditioning / HVAC replacement
• Cross Reference / Replaces: ZP31K5E-PFV, ZP31K6E-PFV, ZP32K3E-PFV
