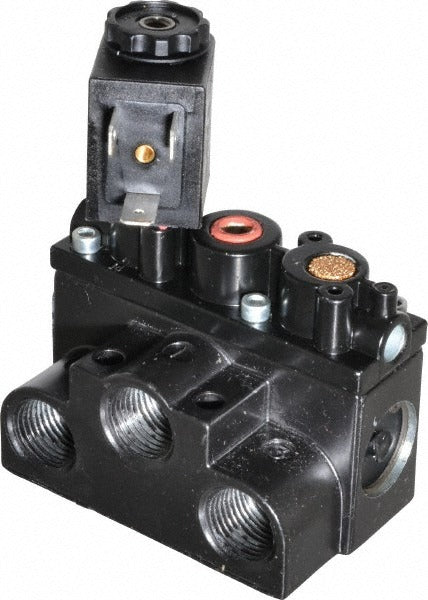

Aro/ingersoll-rand A213SS-024-D Solenoid Air Valve 63 Cfm

Product Description

The ARO/INGERSOLL-RAND A213SS-024-D is a body-ported, 4-way solenoid air valve designed for pneumatic directional control in industrial and mechanical systems. It operates on 24 VDC and delivers a flow rate of 63 CFM with a CV of 1.7, making it well-suited for actuating cylinders, air tools, and pneumatic circuits that require precise two-position control. The spring-return actuator configuration ensures the valve reverts to its default position on loss of signal. Port connections are 3/8 inch inlet and 3/8 inch outlet. Licensed HVAC technicians, industrial mechanics, and pneumatic system specialists are the typical installers of this component.

This valve is applicable in industrial automation, manufacturing, and mechanical utility systems where reliable 4-way directional control of compressed air is required. The 2-position, spring-return configuration suits single-acting cylinder control and fail-safe circuit designs. Its body-ported design simplifies manifold-style installations and plumbing. The 150 psi maximum working pressure accommodates standard shop-air and light industrial compressed-air systems. Operating temperature range is 0 to 180 degrees F, supporting use in a wide range of indoor and sheltered industrial environments.

Key Features

• 4-way, 2-position directional control with spring-return actuator for fail-safe operation
• 24 VDC solenoid input for low-voltage control circuit compatibility
• 63 CFM flow rate and 1.7 CV for efficient pneumatic actuation
• 150 psi maximum working pressure rated for standard industrial compressed-air systems
• Body-ported design for straightforward inline or manifold installation
• 3/8 inch inlet and 3/8 inch outlet ports for common pneumatic line sizing

Compatibility

Designed as an OEM-style directional control valve for 4-way pneumatic circuits requiring a 3/8 inch ported, spring-return solenoid valve operating at 24 VDC.

Installation Notes

Installation should be performed by a qualified industrial mechanic or pneumatic systems technician. Depressurize the air supply and de-energize all control circuits before removing or installing the valve. Verify the supply voltage matches the 24 VDC solenoid coil rating before energizing. Apply thread sealant appropriate for compressed-air service on all port connections and torque fittings per fitting manufacturer guidelines.
