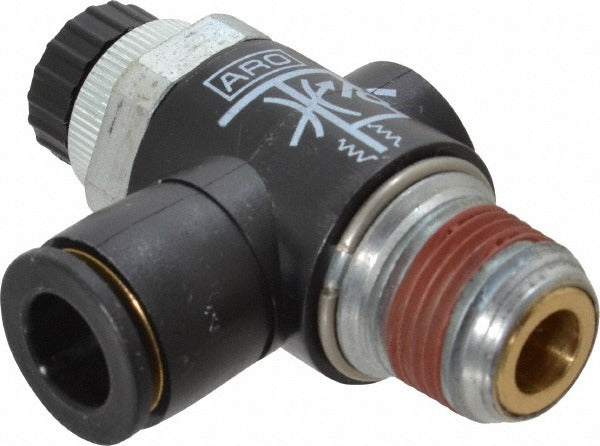

Aro/ingersoll-rand 119310-375 Right Angle Flow Control Valve

Product Description

The ARO/INGERSOLL-RAND 119310-375 is a right angle air flow control valve designed to regulate airflow in pneumatic plumbing and compressed air systems. Built with a brass body, it connects via an NPT male thread on one end and accepts tube on the other, with a 3/8 inch tube outside diameter. The right angle configuration allows installation in tight spaces where a straight-body valve would not fit. Working temperature range spans -32 degrees F to 158 degrees F, making it suitable for a wide range of shop and industrial service environments. Licensed plumbers, pipefitters, and industrial maintenance techs are the primary installers.

This valve is used in pneumatic control circuits, compressed air distribution lines, and fluid power systems where directional flow restriction is needed. The right angle body style is a common choice in panel-mounted or bulkhead applications where tubing must make a 90-degree turn at the valve. The NPTM x tube connection type allows direct integration with standard NPT-threaded ports and compatible OD tubing without additional adapters in most setups.

Key Features

• Right angle body routes tubing at 90 degrees, saving space in compact installations
• Brass body construction provides corrosion resistance in compressed air and light fluid service
• 3/8 inch tube OD connection on tube side for direct tubing integration
• 3/8 inch NPT male thread for standard port compatibility
• Rated operating range from -32 degrees F to 158 degrees F

Compatibility

Designed as an OEM-style replacement or direct-install flow control valve for pneumatic and compressed air systems using 3/8 inch OD tubing and 3/8 inch NPT-threaded ports.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or industrial maintenance technician. Depressurize and isolate the compressed air line completely before removing or installing any flow control valve. Apply appropriate thread sealant to the NPT male threads per the fitting manufacturer and applicable plumbing code guidance. Do not overtighten the tube fitting connection; verify tube seating and leak-check at full system pressure before returning the circuit to service.
