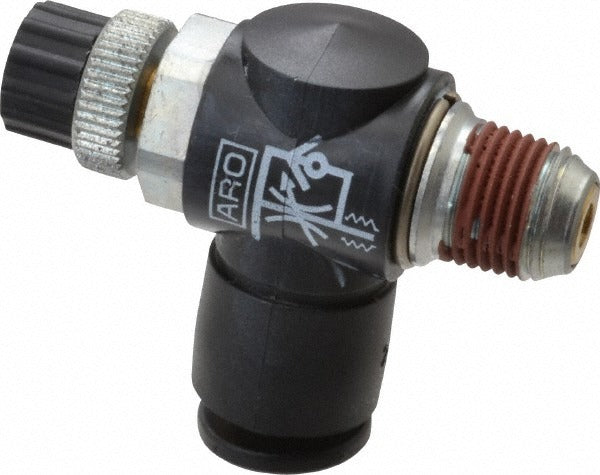

Aro/ingersoll-rand 119310-125 Right Angle Flow Control Valve

Product Description

The ARO/INGERSOLL-RAND 119310-125 is a right angle air flow control valve designed to regulate airflow in pneumatic lines and systems. Constructed with a brass body, it connects via NPTM x Tube configuration and accepts a 1/4 inch tube outside diameter with a 1/8 inch NPT male thread. The right angle configuration allows installation in tight or confined spaces where a straight-body valve would not fit. This valve is rated for working temperatures from -32 degrees F to 158 degrees F, making it suitable for most industrial and light commercial pneumatic applications. It is typically installed by pipefitters, pneumatic systems technicians, and industrial maintenance professionals.

This flow control valve is used in compressed air lines where directional flow regulation is required at a 90-degree connection point. The NPTM x Tube interface allows it to bridge threaded pipe fittings and tubing runs in pneumatic circuits. Common install scenarios include air tool supply lines, pneumatic actuator circuits, and general industrial automation plumbing where controlled airflow rates are necessary at a right angle junction. The brass body offers good resistance to corrosion in typical compressed air environments.

Key Features

• Right angle body design for installations in space-constrained pneumatic runs
• Brass body construction for corrosion resistance in compressed air service
• NPTM x Tube connection bridges threaded pipe and tubing in a single fitting
• Accepts 1/4 inch tube outside diameter with 1/8 inch NPT male thread
• Rated for operating temperatures from -32 degrees F to 158 degrees F

Compatibility

Designed as an OEM-style replacement or direct-use right angle flow control valve for pneumatic systems requiring a 1/4 inch tube OD and 1/8 inch NPT male thread interface.

Installation Notes

Installation is typically performed by a licensed pipefitter or qualified pneumatic systems technician. Depressurize and bleed the pneumatic line completely before removing or installing any flow control valve. Apply appropriate thread sealant to NPT threads per shop practice and tighten to fitting manufacturer standards. Verify flow direction and tube seating before returning the system to operating pressure.
