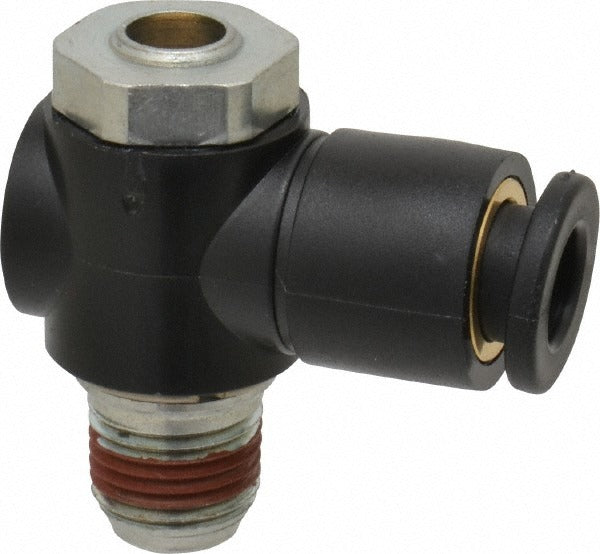

Aro/ingersoll-rand 119309-125 Right Angle Flow Control Valve

Product Description

The ARO/INGERSOLL-RAND 119309-125 is a right angle air flow control valve designed to regulate airflow in pneumatic systems. The valve features an NPTM x tube connection configuration with a 1/4 inch tube outside diameter and a 1/8 inch male NPT thread size. Constructed from brass, it handles pressures up to 150 psi and operates across a temperature range of -32 degrees F to 158 degrees F. This type of valve is typically installed by pneumatic system technicians and industrial maintenance professionals who need precise flow control in compressed air lines.

This right angle flow control valve is suited for use in compressed air distribution systems, pneumatic tool lines, and automation equipment where directional space constraints require a 90-degree connection. The NPTM x tube design allows direct connection to tubing runs without additional fittings in many configurations. It is commonly used in light industrial, manufacturing, and process control environments where consistent airflow regulation is required at the point of use.

Key Features

• Right angle body design accommodates tight-space installations in pneumatic plumbing runs
• Brass body construction provides durability and corrosion resistance in compressed air service
• 1/4 inch tube OD connection with 1/8 inch male NPT thread for direct inline installation
• Rated to 150 psi maximum working pressure for standard compressed air system use
• Wide operating temperature range from -32 degrees F to 158 degrees F

Compatibility

Designed as an OEM-style replacement or direct-fit flow control valve for pneumatic systems using 1/4 inch OD tubing with 1/8 inch NPT male thread connections operating at or below 150 psi.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize and lock out the compressed air supply completely before removing or installing any flow control valve. Use appropriate thread sealant on NPT connections and ensure tubing is cut cleanly and seated fully before pressurizing. Verify that system pressure does not exceed the 150 psi rated maximum working pressure of this valve.
