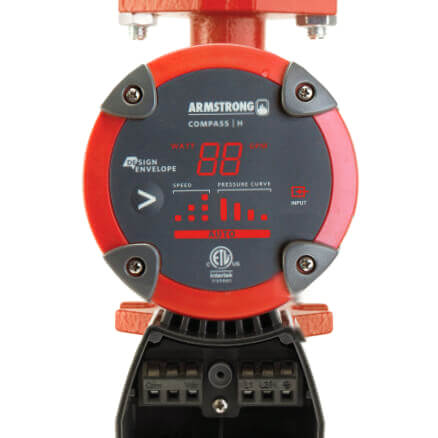

Armstrong Pumps 180203-687 SS Compass V/S PMP

Product Description

The Armstrong Pumps 180203-687 SS Compass V/S PMP is a stainless steel wet-rotor circulator pump designed for efficiency. It features a flanged connection and is capable of supporting a flow rate between zero and twenty gallons per minute. This pump operates with a maximum head of twenty feet, integrating Design Envelope intelligent variable speed technology with ECM motors, thus reducing operating costs significantly.

• Supports flow rates from 0 to 20 gallons per minute
• Maximum head of 20 feet
• Equipped with Design Envelope technology for enhanced efficiency

Product Highlights

This circulator pump is easy to install and set up, offering multiple operating modes for energy savings. It is suitable for hydronic systems, providing a reliable solution for various heating applications.

Product Information

Standard Information

• Type: Pump
• Warranty: 5 Years

Technical Specifications

• Hertz: 60
• Voltage: 115V
• Material: Stainless Steel
• Horse Power: 1/25
• Max Head (Ft): 20
• Max Flow (GPM): 20
• Max Fluid Temp: 230 Degrees F
• Connection Type: Flanged x Flanged
• Max Pressure (PSI): 150
• RPM: 3,000
• Amps: 0.65
• Overall Width: 4 in
• Overall Height: 6.5 in
• Overall Length: 7.11 in
• Shaft Material: Ceramic
• Impeller Material: 30% Glass-Filled Noryl
• Inlet/Outlet Size: 1/2 in
• Drive Type: Direct
