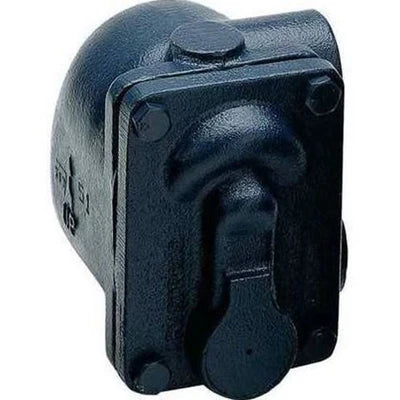

Armstrong International 15B8 Steam Trap 15 PSI Size 2 Inch

Product Description

The Armstrong International 15B8 is a robust steam trap with a 2-inch FNPT connection and a maximum operating pressure of 15 psi. Designed for effective steam control, this steam trap is commonly used across various HVAC systems in industrial and commercial settings.

• Effective in steam lines to prevent waterlogging.
• Responsive bi-metallic thermostatic element for precise temperature control.
• Cast iron construction for durability in high-pressure environments.

Product Highlights

This steam trap features a floating and thermostatic design which assures effective removal of condensate without steam loss. It serves a dual function of discharge and non-return to maximize efficiency and reliability in steam systems.

Product Information

Technical Specifications

• Item Number: 15B8
• Brand: Armstrong International
• Type: Float and Thermostatic
• Max Temperature: 377 Degrees at 175 psig
• Condensate Capacity: 9000 Lbs/Hr
• Body Material: Cast Iron
• Pipe Configuration: Same Side
• Trap Position: Horizontal
