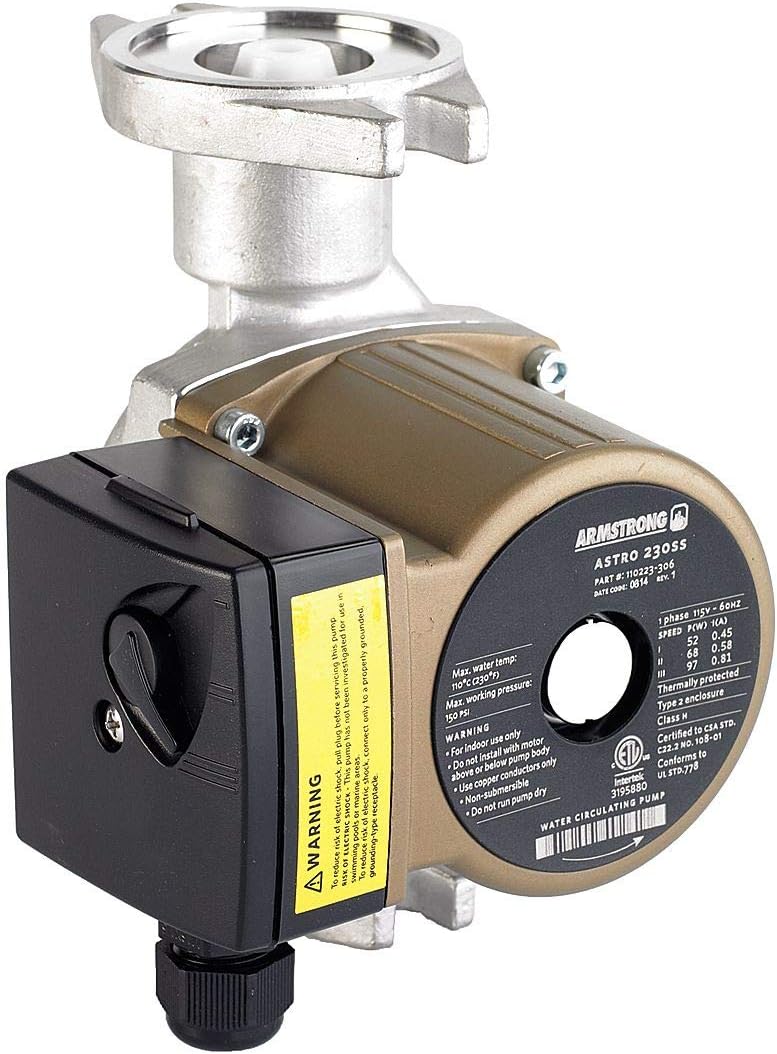

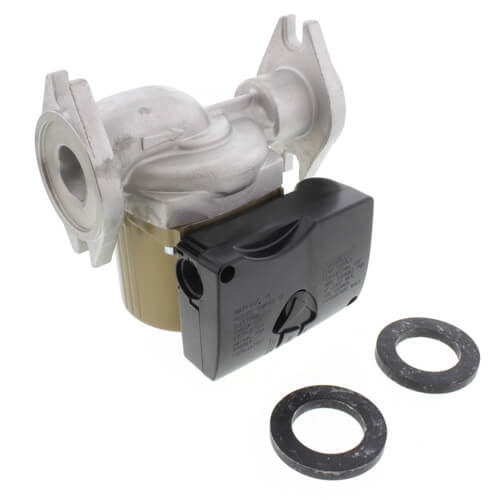

Armstrong 110223-306 1/25 Horsepower Astro 230SS Wet Rotor Circulator Stainless Steel

Product Description

The Armstrong Astro 230SS 1/25 Horsepower Circulator, model number 110223-306, is designed for efficient and maintenance-free circulation of water or ethylene-glycol solutions in closed hydronic or solar heating systems. Ideal for residential, small industrial, and commercial applications.

• Three-speed switch for customized flow
• Stainless steel construction for durability
• Quiet operation and zero maintenance

Product Highlights

The Armstrong 110223-306 Astro 230SS circulator pump features a robust stainless steel body and a versatile three-speed switch. It is designed to operate quietly and requires no maintenance, making it ideal for various heating applications in residential and small industrial settings.

Product Information

Standard Information

• Brand: Armstrong
• Model: 110223-306
• Type: Wet Rotor Circulator
• Material: Stainless Steel
• Applications: For residential heating or cooling, potable water, water conservation

Technical Specifications

• Horsepower: 1/25 hp
• Voltage: 115 VAC
• Amperage Capacity: 0.81 Amps
• Wattage: 80.5 watts
• Flow Rate: 0-18 GPM
• Maximum Feet of Head: 18.2 ft
• RPM: 2800 rpm
• Frequency: 60 Hz
• Pressure Rating: 150 psi
• Temperature Range: 0-230 Degrees Fahrenheit
• Impeller Material: Noryl
• Certifications: cETLus Intertek listed, NSF 372 certified
