Armstrong Fluid Technology 806026-001K Spring Coupler

Product Description

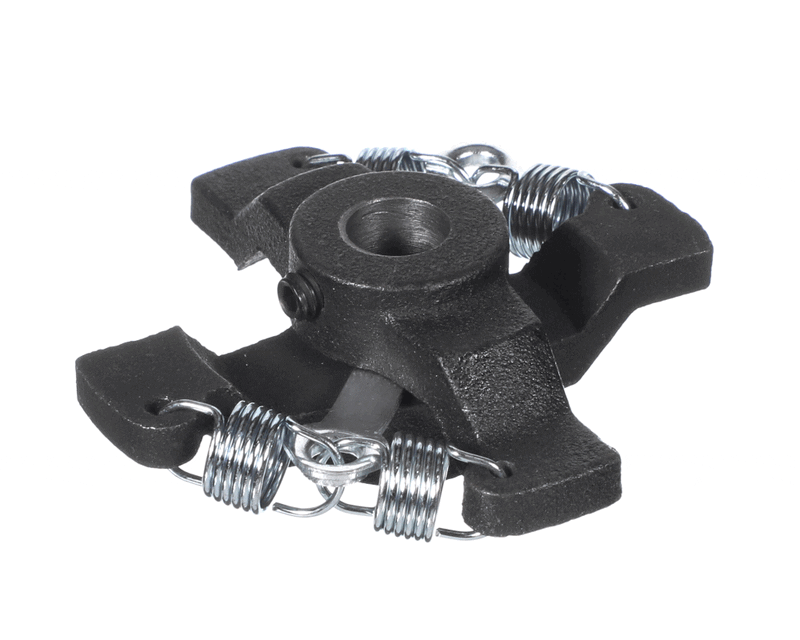

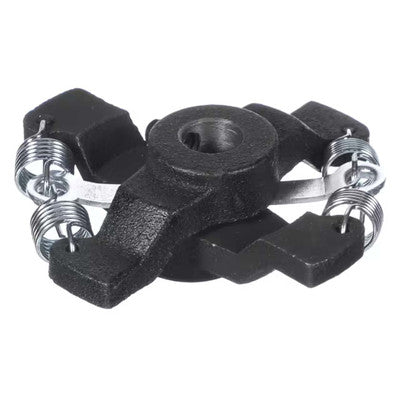

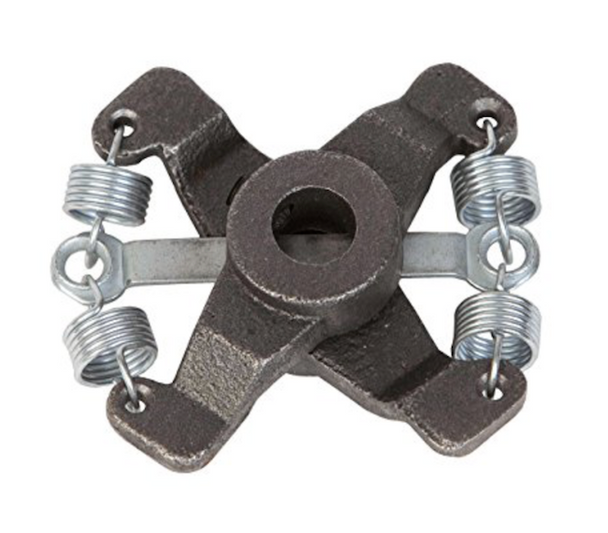

The Armstrong Fluid Technology 806026-001K is a spring-type coupler designed for use with specific Armstrong series pumps. This coupler enables a flexible connection within circulator assemblies. It includes a coupling sleeve and two coupling flanges, providing durability and reliability.

• Compatible with Armstrong Series H and S pumps.
• Works with models H-32, H-41, S-25, S-34, and S-35.
• Constructed from cast iron for strength.

Product Highlights

This coupler is a key component for ensuring smooth operation in circulator systems. Its design allows for effective connection and disconnection in pumps.

Product Information

Standard Information

• Brand: Armstrong Fluid Technology
• MPN: 806026-001K

Technical Specifications

• Pump Part Type: Coupler Spring-Type
• Shaft Size: 1/2 x 1/2
• Pump Series Repaired: Series H, Series S
• Pump Model Repaired: H-32, H-41, S-25, S-34, S-35
• Length: 3 inches
• Width: 4 inches
• Height: 4 inches
