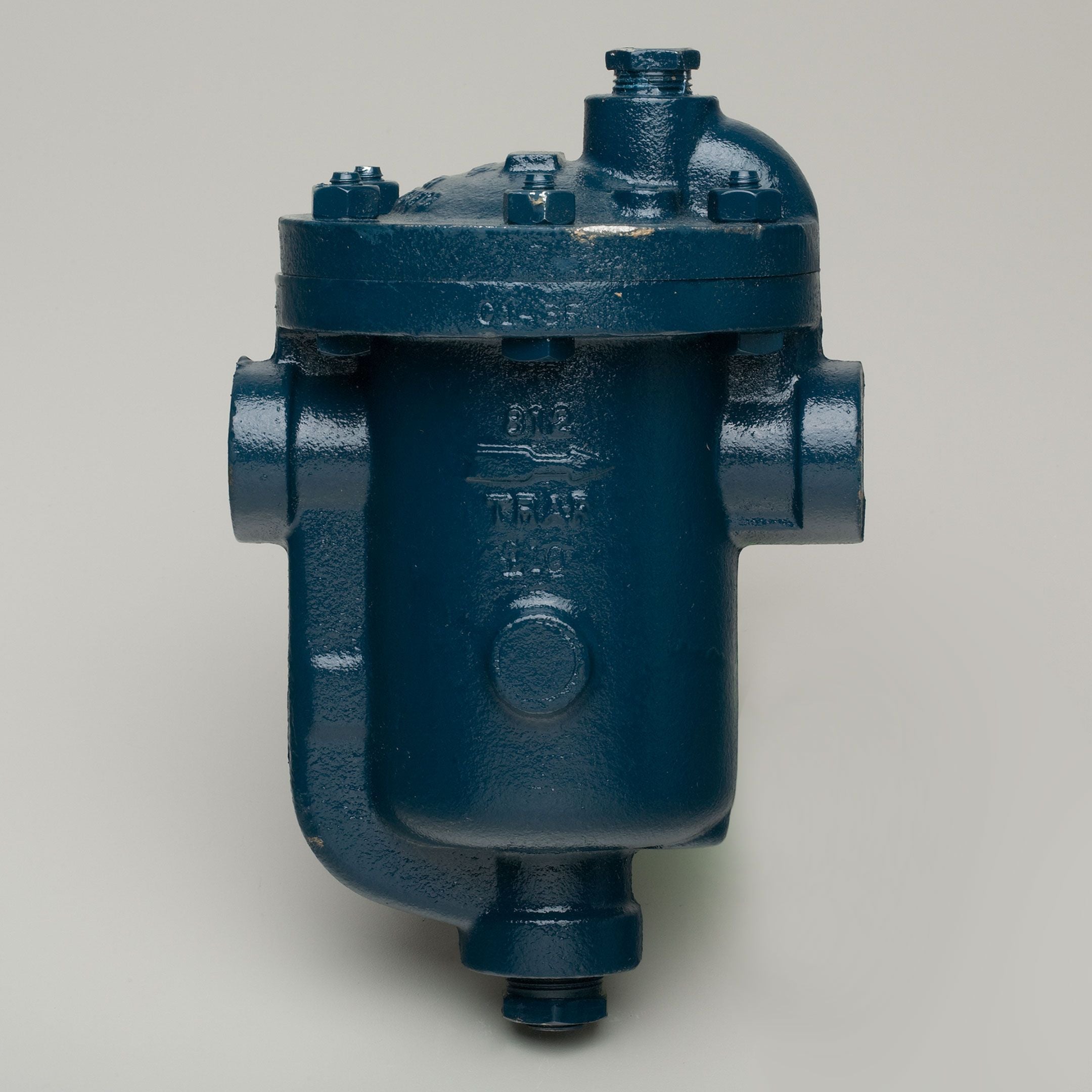

Armstrong D501486 812 Inverted Bucket Trap 125 PSI 1/2 Replacement MPN

Product Description

The Armstrong inverted bucket steam trap, model 812, has a one-half inch pipe connection. It operates in an in-line horizontal configuration. The setup allows steam to enter from below, discharging condensate from above. Inverted bucket traps utilize the weight of the bucket to manage valve pressure effectively.

• Maximum operating pressure of 125 psi
• Capacity for 2,000 pounds per hour
• Designed for heat exchange equipment to quickly vent air and non-condensable gases

Product Highlights

This steam trap is a reliable solution for air purging and handling dirt, performing well under light loads.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D501486

Technical Specifications

• Series: 800 Series
• Steam Trap Type: Inverted Bucket
• Body Material: Cast Iron
• Steam Trap Connection Size: 1/2 inches
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 125 psi
• Orifice Size: 5/32 inches
• Weight: 15.00 lbs
