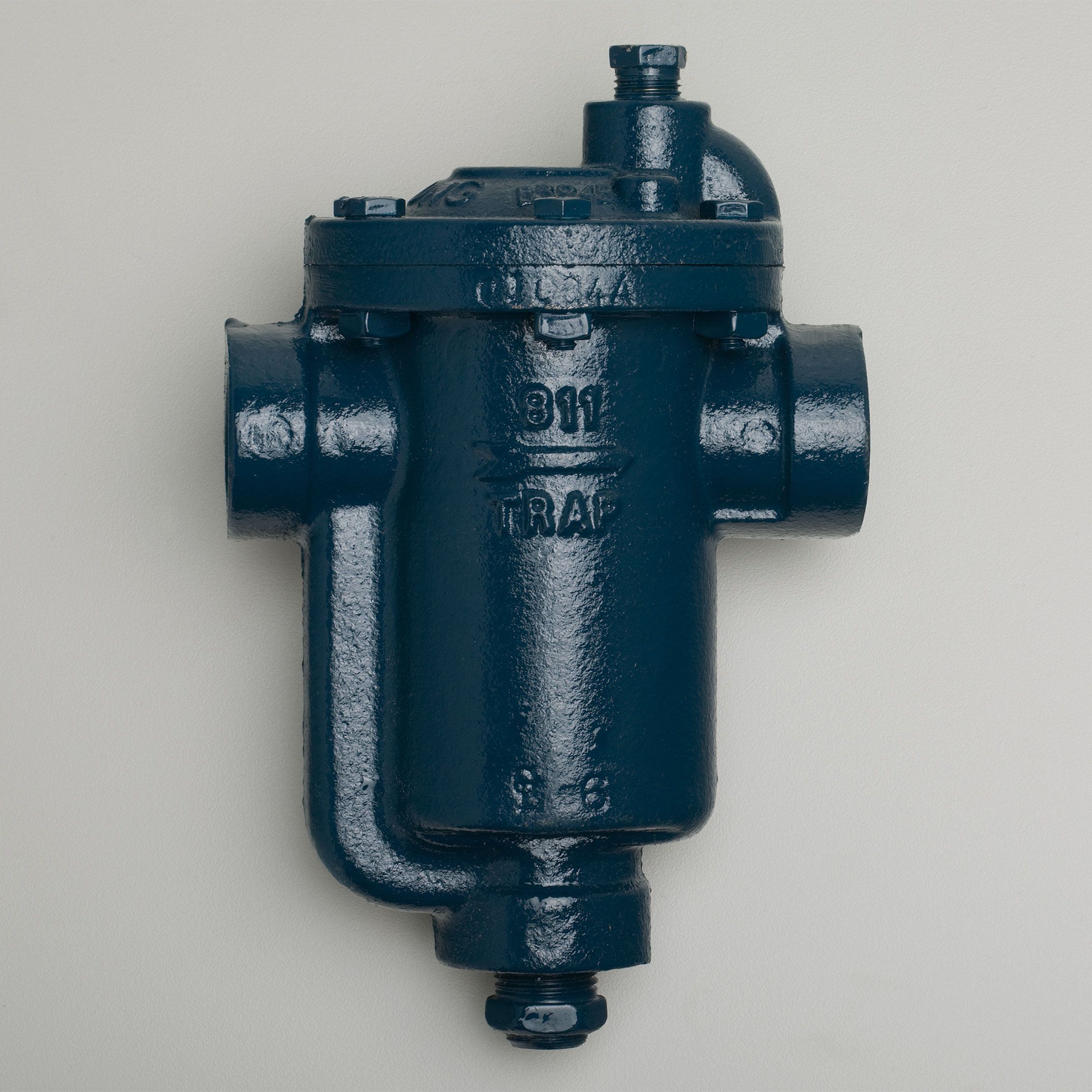

Armstrong C5297-20 811 Inverted Bucket Trap 1/2 NPT 70 PSI 5/32 Orifice

Product Description

The Armstrong inverted bucket steam trap, model 811, features a half inch pipe connection in an in-line horizontal configuration. This design allows steam to flow in from the bottom while allowing condensate to exit from the top. The system efficiently handles air and non-condensable gases, making it useful in various heat exchange applications. Inverted bucket traps utilize the bucket's weight to open the valve against pressure, providing durability against wear and corrosion.

• Constructed from cast iron for durability.
• Operates at a maximum pressure of seventy psi.
• Designed for a capacity of nine hundred fifty pounds per hour.

Product Highlights

Ideal for use on heating equipment, the Armstrong 811 steam trap quickly vents air and performs well under light loads while managing back pressure effectively.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5297-20

Technical Specifications

• Series: 800 Series
• Body Material: Cast Iron
• Steam Trap Connection Size: 1/2 inch
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 70 psi
• Orifice Size: 5/32 inch
• Weight: 6.00 lbs
