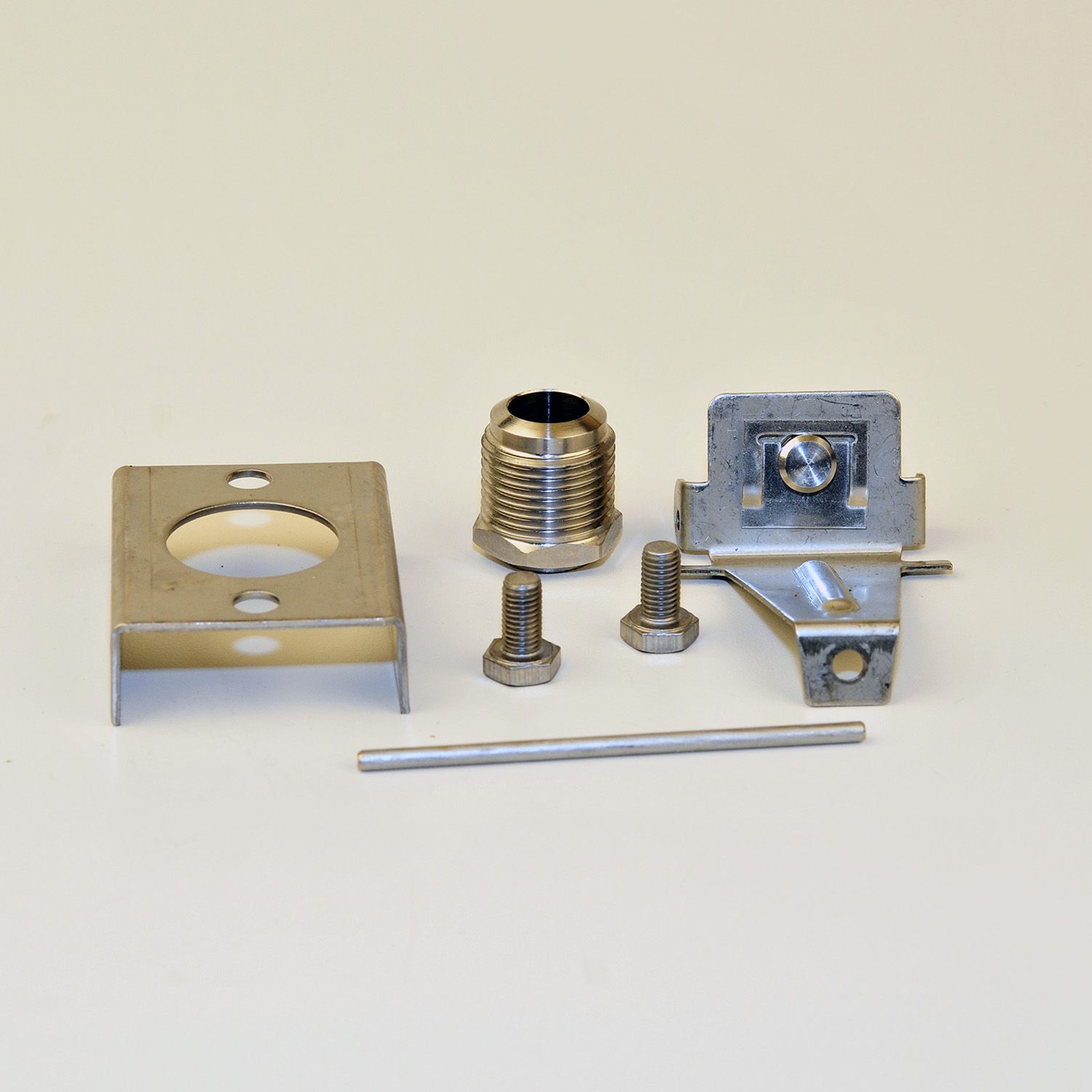

Armstrong B4027-1 Mechanism Assembly

Product Description

The Armstrong B4027-1 is a mechanism assembly designed for model 15-B6 float and thermostatic traps with half-inch orifices. This assembly allows for efficient condensate drainage from the steam trap through a simple lever and seat operation. The mechanism is secured by screwing the seat into the trap's outlet port. Attached to the float, the weight ensures the lever remains down, keeping the seat closed during steam presence. As steam cools and condenses, the accumulated condensate raises the float, opening the seat for drainage.

• Compatible with model 15-B6 F&T traps
• Facilitates condensate drainage through lever operation
• Lightweight design enhances installation and maintenance

Product Highlights

Efficient design for steam trap maintenance and operation.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: B4027-1

Technical Specifications

• Steam Trap Series Repaired: B Series
• Steam Trap Model Repaired: 15-B6
• Weight: 0.25 pounds
• Replaces: Armstrong B4027-1
