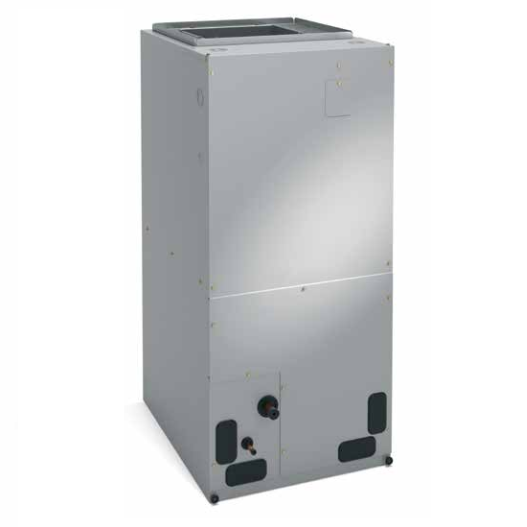

Armstrong Air BCE5V24MA4X-50 BCE5V Variable Speed Air Handler 2 ton R-410A

Product Description

The Armstrong Air BCE5V24MA4X-50 is a versatile air handler designed for efficiency and comfort. It features a variable-speed motor that can adjust airflow to maintain optimal temperature and humidity levels. This air handler is ideal for high-humidity environments and can be paired with heat pumps and air conditioners to provide year-round comfort and savings.

• Variable-speed motor for precise airflow control
• Designed for high-efficiency performance
• Includes anti-microbial protection in drain pans

Product Highlights

The BCE5V series provides enhanced humidity control and temperature regulation in homes and buildings, boosting energy efficiency and reducing noise levels compared to single-speed models.

Product Information

Standard Information

• Brand: Armstrong Air
• Manufacturer: Allied Air Enterprises

Technical Specifications

• Type: Multi-Position
• Series: 5 Series
• Material: Galvanized Steel
• Flow Rate: 1120 cfm
• Dimensions: 18-1/2 inches W x 22 inches D x 45-1/2 inches H
• Motor Type: Variable Speed
• Power Source: 208/230 VAC, 1 ph, 60 Hz
• Heating Capacity: 32700 Btu/hr
• Nominal Capacity: 2 ton
• Refrigerant Type: R-410A
• Certifications: AHRI Certified, cETLus Listed
• Filter Size: 15 x 20 x 1
• Liquid Line Size: 3/8 inches
• Suction Line Size: 3/4 inches
• Return Air Opening: 16-1/4 inches W x 20-3/8 inches D
• Supply Air Opening: 16-1/2 inches W x 14-1/2 inches H
