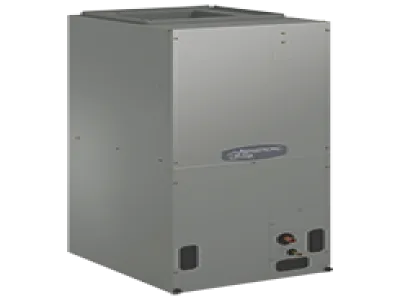

Armstrong Air 1.913021 BCE5E Constant Torque Air Handler 3 Ton BCE7

Product Description

The Armstrong Air 1.913021 BCE5E Constant Torque Air Handler is ideal for residential applications. It features a constant torque motor that offers lower operating costs and increased efficiency. This air handler works best when paired with Armstrong Air heat pumps or air conditioners, potentially qualifying for utility rebates.

• Applications: Residential
• Delivering more consistent airflow compared to single-speed motors
• Anti-microbial protection to inhibit the growth of mold and bacteria

Product Highlights

This air handler provides steady airflow, saving energy while maintaining comfort.

Product Information

Standard Information

• Brand: Armstrong Air
• Manufacturer: Allied Air Enterprises

Technical Specifications

• Type: Multi-Position Enhanced
• Series: BCE7
• Material: Galvanized Steel
• Dimensions: 21-1/4 inches W x 22-5/8 inches D x 50 inches H
• Motor Type: Blower/Constant Torque
• Power Source: 1/2 hp 208 to 230 V 5 A 1 ph 60 Hz
• Cooling Capacity: 36000 Btu/hr
• Nominal Capacity: 3 ton
• Filter Size: 20 x 20 x 1
• Refrigerant Type: R-410A
• Certifications: AHRI Certified, cETLus Listed, UL Listed, CEC Certified, NEC Certified
• Liquid Line Size: 3/8 inches
• Suction Line Size: 3/4 inches
