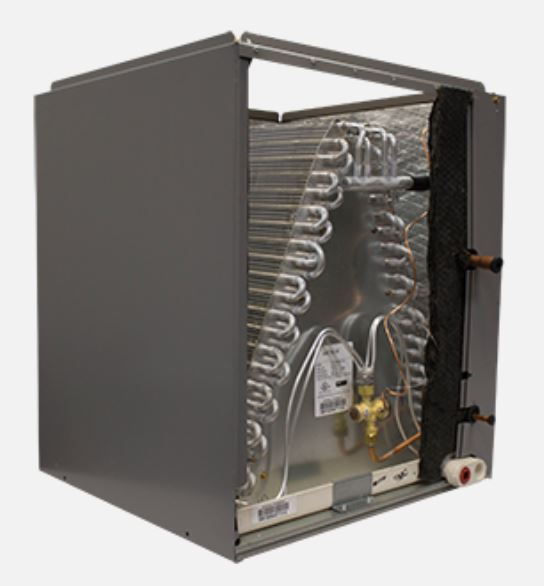

Armstrong Air 1.911528 Omniguard EAC4X-50 Cased Evaporator Coil 3 ton

Product Description

The Armstrong Air 1.911528 is a cased evaporator coil designed for effective cooling in residential and commercial settings. This component is ideal for HVAC systems where efficient airflow is critical. It's suitable for use with R-410A refrigerant and works effectively in systems requiring 800 to 1600 cfm.

• Factory-installed TXV for easy setup in high-efficiency applications
• Foil-face insulation for energy efficiency
• Microban additive helps prevent mold and mildew growth

Product Highlights

This evaporator coil features a tightly sealed cabinet, ensuring minimal air leakage and improved efficiency.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8509

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: 23.75 inches L x 18.75 inches W x 27.62 inches H
• Flow Rate: 800 to 1600 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Metering Device: TXV
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 3 ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
