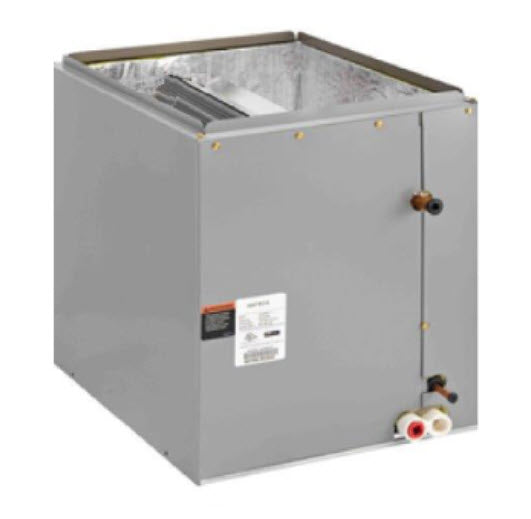

Armstrong Air 1.911524 Omniguard Evaporator Coil 2.5 ton Nominal R-410A

Product Description

The Armstrong Air 1.911524 is an evaporator coil designed for efficient cooling and increased durability. This unit provides an upflow air flow type and is compatible with R-410A refrigerant. It features a cased enclosure that is 17.5 wide.

• Nominal capacity of 2.5 tons
• Factory-installed TXV for optimal refrigerant management
• Durable construction with aluminum tubing

Product Highlights

The Armstrong Air evaporator coil promotes effective heat transfer and ensures long-lasting performance. The Microban protection prevents mold and bacteria growth.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8505

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: Seventeen and one half inches wide x twenty-one inches deep x twenty-two and one half inches high
• Flow Rate: Six hundred to fourteen hundred cfm
• Line Size (Liquid): Three eighths inch
• Line Size (Suction): Three fourths inch
• Metering Device: TXV
• Standards/Approvals: AHRI Certified | cULus Listed
• Refrigerant Type: R-410A
• Warranty: Ten Years Limited Parts
