Armstrong 570200-476 Flo-trex Valve Angle Pattern Flanged

Product Description

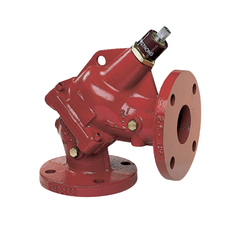

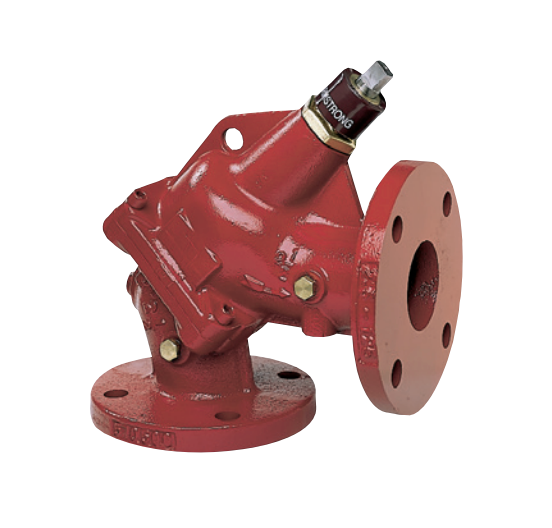

The ARMSTRONG 570200-476 is an angle-pattern Flo-Trex combination valve designed for installation on the discharge side of hydronic pumping equipment. This single device integrates four functions into one compact assembly: a shut-off valve, a non-slam check valve, a flow throttling valve, and a 90-degree elbow. Supplied with ANSI-125 flanged pump system connections, the 570200-476 eliminates the need for separate flange adapter kits. Weighing 34 pounds, it is sized for 2.5-inch piping and suited for commercial and industrial hydronic systems where mechanical room space is at a premium.

The 570200-476 is applied on pump discharge piping in hydronic heating and cooling systems, including chilled water, hot water, and condenser water loops. By combining check, shutoff, throttling, and directional-change functions in one body, it reduces the number of individual fittings required at each pump station. This makes it a practical choice for new construction and retrofit mechanical rooms where minimizing pipe runs and connection points is a priority. Licensed mechanical contractors and pipefitters handle installation as part of pump skid commissioning or pump replacement work.

Key Features

• Four-function design: shut-off valve, non-slam check valve, flow throttling valve, and 90-degree elbow in a single body
• Angle-pattern configuration eliminates a separate 90-degree elbow fitting at the pump discharge
• Supplied with ANSI-125 flanged pump system connections — no separate flange adapter kits required
• Non-slam check action protects pump from reverse flow damage during shutdown
• Reduces mechanical room space requirements and installation labor at pump stations
• Extends operating life of system components by protecting pump from back-pressure and reverse rotation

Compatibility

Designed for installation on the discharge side of centrifugal pumping equipment with ANSI-125 flanged connections in 2.5-inch hydronic piping systems. Compatible with Armstrong pump stations and other ANSI-125 flanged pump configurations requiring combination valve protection.

Installation Notes

Installation is performed by a licensed mechanical contractor or pipefitter in accordance with applicable ASME and local mechanical codes. Shut down and de-energize the pump, and isolate and depressurize the system before beginning work. The angle-pattern body replaces both a standard combination valve and a 90-degree elbow, so verify piping layout and support requirements before final assembly. Do not exceed the rated flange pressure class during system pressurization testing.

Technical Specifications

• Model: FTV-2.5FA
• Pattern: Angle
• Connection Type: ANSI-125 Flanged
• Pipe Size: 2.5 inches
• Weight: 34 pounds

Standard Information

• Brand: ARMSTRONG
• Manufacturer Part Number: 570200-476
