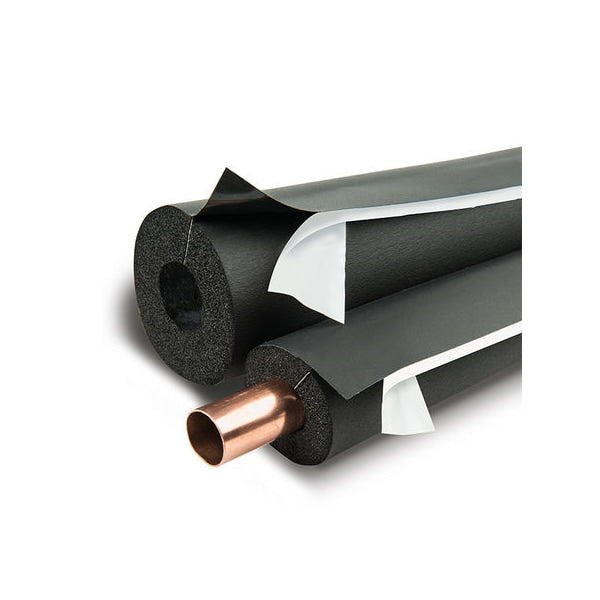

Armaflex BST07810 ap™ Armaflex® pipe insulation 1 in thick wall

Product Description

The ARMAFLEX BST07810 AP™ ArmaFlex® pipe insulation answers the demand for easy installation with a secure lap seal closure system. Installers will appreciate the enhancements to this pipe insulation innovation. It's an ideal solution for speeding up install times or making hard-to-reach installation areas easier to accommodate. The insulation is 6 ft in length.

• Elastomeric pipe insulation with a flexible lap seal for greater seam security and increased protection against condensation, mold and energy loss
• Interior adhesive liner for quicker application
• Durable, low profile lap seal with wider release tab, stays closed and looks neat

Product Highlights

Easy-to-install pipe insulation with a flexible lap seal, interior adhesive liner and durable, low profile lap seal.

Product Information

Standard Information

• Brand: ARMAFLEX
• Manufacturer Part Number: BST07810

Technical Specifications

• Material: Elastomeric Foam
• Length: 6 ft
• Nominal Size: 7/8 in
• Inside Diameter: 3/4 in
• Outside Diameter: 7/8 in
• Wall Thickness: 1 in
• Facing Type: SSL
• Construction: Closed Cell
• R-Value: R7
• Density: 3 to 6 pcf
• Thermal Conductivity: 0.235 to 3 Btu-in/hr-sq-ft-deg F
• Temperature Rating: -297 to 220 deg F
• Application: For refrigeration hot, cold lines, HVAC systems, exposed ceilings/air plenums, industrial/mechanical, schools, universities, hospitals and exterior applications
• Flame Spread Index: 25
• For Pipe Size: 1/2 in IPS
• Iron Pipe Size: 1/2 in
• Smoke Developed Index: 50
• Sub Brand: AP ArmaFlex Black LapSeal
• Water Absorption: 0.2 %
• Water Vapor Permeability: 0.05 perm-in
