Armacell DGS05812 Tubolit Ss 5/8Id X 1/2 Wall Per Ft Self-Seal Split Poly

Product Description

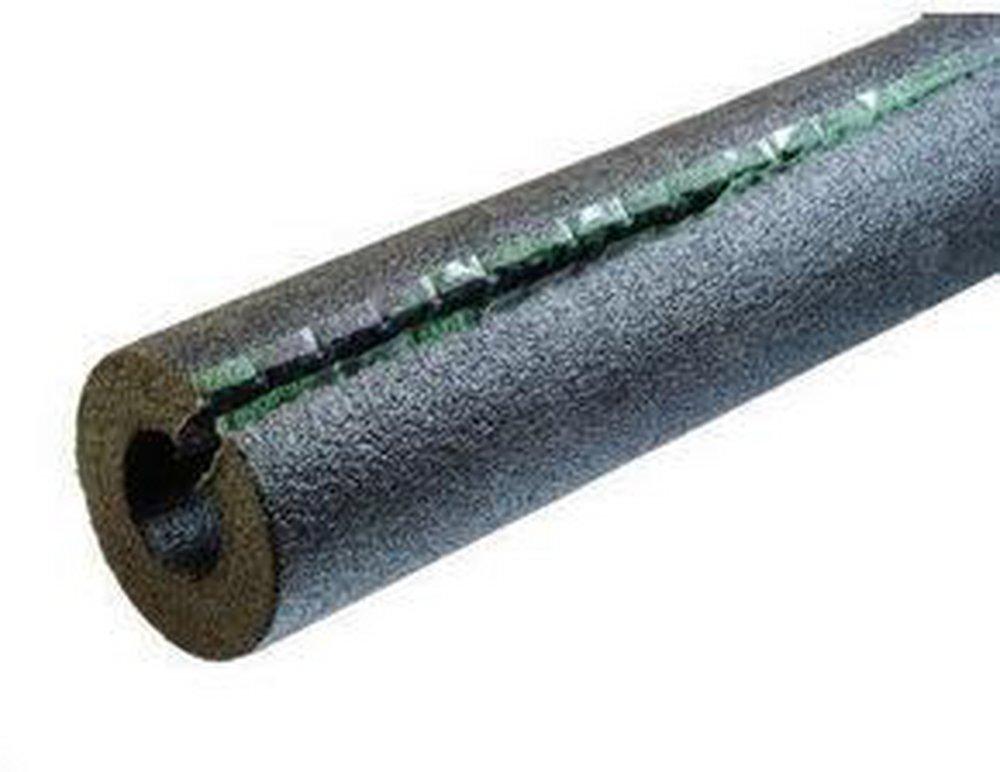

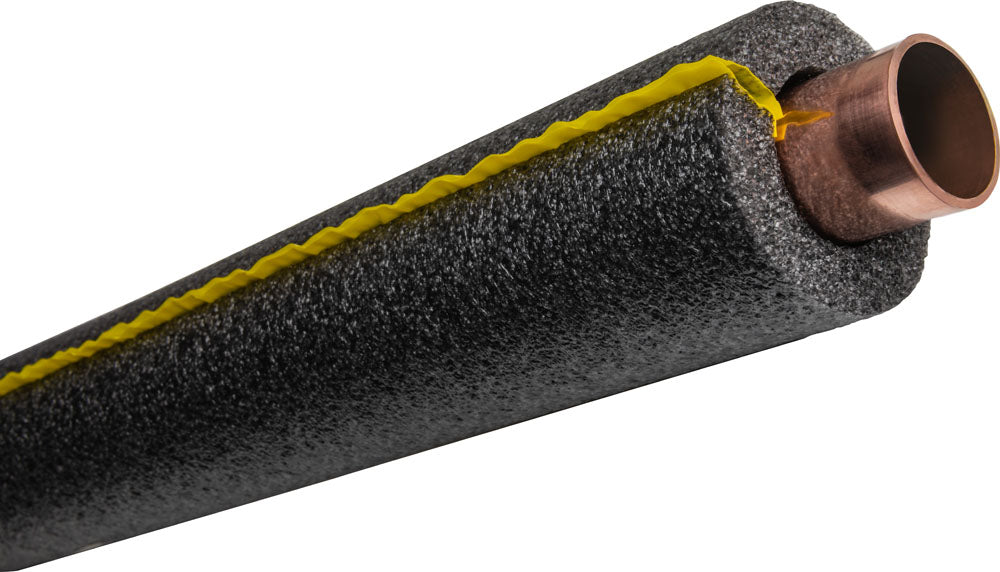

The Armacell DGS05812 Tubolit Ss pipe insulation is a closed-cell, flexible, self-seal polyethylene pipe covering. Designed for 5/8 inch inner diameter pipes with a 1/2 inch insulation thickness and 6 foot length. Suitable for domestic heating, plumbing lines, and mechanical insulation. Conforms to UL 181/2818 and ASTM C1427/E84 standards.

• Greenguard Gold Certified
• Self-Seal Adhesive Reduces Installation Time
• Reduces Plumbing Noise

Product Highlights

Easy-to-install and cost effective thermal solution that reduces heat loss and gain on plumbing systems. Resists mold and mildew.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: DGS05812
• Country of Origin: USA

Technical Specifications

• Type: Closed Cell, Flexible, Self-Seal
• Pipe Size: 5/8 Inch Inner Diameter (Pipe Covering), 1/2 Inch Inner Diameter x 5/8 Inch Outer Diameter Copper Tubing, 3/8 Inch Iron/PVC Pipe
• Insulation Thickness: 1/2 Inch
• Roll Sheet Dimensions: 6 Foot Length
• Material: Polyethylene
• Density: 1 to 3 Pound per Cubic Foot at 73 Deg F
• Maximum Temperature Rating: 200 Deg F
• Minimum Temperature Rating: -297 Deg F
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation
• Application: For refrigeration hot, cold lines, PEX, heating and plumbing lines
• Applicable Standard: UL 181/2818, ASTM C1427/E84, MEA 6-02-M, ISO 9001
• Additional Information: Flame Spread 25, Smoke Developed 50
• Brand Name: Armaflex, Tubolit
• Manufacturer Name: Armacell
• Manufacturer Part Number: DGS05812
• UNSPSC Code: 30141500
• Connection Type: IPS
• Construction: Closed Cell
• Length: 6 ft
• R-Value: R3.3
• Thermal Conductivity: 0.265 to 0.28 Btu-in/hr-sq-ft-deg F
• Wall Thickness: 1/2 in
• Facing Type: SSL
• For Pipe Size: 3/8 in IPS
• Copper Tubing Size: 5/8 in O.D.
• Inside Diameter: 5/8 in
• Iron Pipe Size: 3/8 in
• Flame Spread Index: 25
• Flexural Strength: >50 psi
• Smoke Developed Index: 50
• Sub Brand: Tubolit
• Temperature Rating: -297 to 220 deg F
• Water Vapor Permeability: 0.02 perm-in
