Armacell BST03438 AP/Armaflex Lap Seal Pipe Insulation 3/4in ID x 3/8in Wall 6ft Length

Product Description

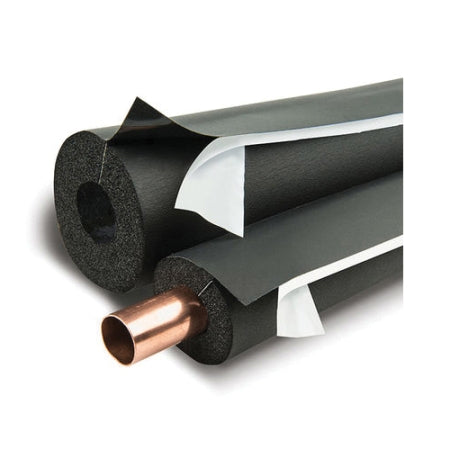

The ARMACELL BST03438 AP/Armaflex Lap Seal Pipe Insulation is an elastomeric pipe cover designed for thermal insulation. It features a 3/4 inch inside diameter and a 3/8 inch insulation thickness, with a self-seal lap for secure closure. This closed-cell insulation is suitable for refrigeration hot and cold lines, HVAC systems, and exposed ceilings, offering a temperature rating from -297 to 220 deg F. It helps prevent condensation and energy loss.

• Improved lap seal closure system for easy installation and secure closure.
• Closed-cell foam structure prevents moisture wicking and eliminates need for additional vapor retarder.
• Fiber-free, formaldehyde-free, low VOC, and non-particulating formulation protects indoor air quality.

Product Highlights

Flexible elastomeric pipe insulation with a secure lap seal for thermal integrity and moisture protection.

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: BST03438
• Country of Origin: Domestic

Technical Specifications

• Brand: ARMACELL
• MPN: BST03438
• Type: AP/Armaflex Black Lap Seal Pipe Insulation
• Wall Thickness: 3/8 in
• Manufacturer: Armacell
• DI Part Number: RUPC00703BSA
• Application: For Refrigeration Hot and Cold Lines, HVAC Systems, Exposed Ceilings/Air Plenums, Industrial/Mechanical, Schools, Universities and Hospitals, Exterior Applications Must be Painted with Wb Finish to Protect Against Radiation
• Construction: Closed-Cell
• Facing Type: Self Seal Lap
• Flame Spread Index: 25
• For Use With Tube Size: 5/8 in Tube
• Inside Diameter: 3/4 in
• Item Name: Elastomeric Pipe Cover
• Lap Type: Reinforced
• Length: 6 ft
• Material: Elastomeric
• Smoke Developed Index: 50
• Special Features: Flexible
• Sub Brand: AP ArmaFlexBlack LapSeal
• Temperature Rating: -297 to 220 deg F
• Thermal Conductivity: 0.245 to 0.254 Btu-in/hr-sq-ft-deg F
• Water Vapor Permeability: 0.05 perm-in
• Water Vapor Sorption: 0.2 %
• Color: Black
• Density: 3 to 6 cu-ft/lb
• Origin: Domestic
• R-Value: 2.4
• Water Absorption: 0.2 %
• Item Number: 01301203
