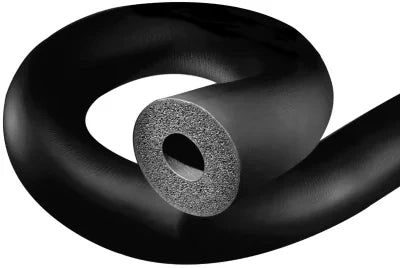

Armacell ARMA-APT05812 Elastomeric Pipe Insulation 0.5in

Product Description

The Armacell ARMA-APT05812 is a closed-cell, flexible elastomeric pipe insulation tube designed to control condensation, resist mold growth, and reduce energy loss on refrigerant and chilled-water piping. The tube measures 0.625 inches wall thickness by 0.5 inches inner diameter and comes in a 72-inch length. Its fiber-free, formaldehyde-free, low-VOC formulation protects indoor air quality, making it well suited for occupied buildings and sensitive environments. A built-in vapor retardant barrier is integrated into the closed-cell Nitrile/PVC structure, eliminating the need for a separate vapor retarder wrap. The product carries a 25/50 flame and smoke rating and is approved for use in air plenums with wall thickness up to 2 inches.

AP Armaflex pipe insulation is used on refrigerant suction lines, chilled-water lines, and other cold piping in residential and commercial HVAC and refrigeration systems. It performs reliably across a wide temperature range of -297 degrees F to 220 degrees F, covering most mechanical refrigeration and low-temperature applications. Microban antimicrobial protection is built into the material to provide long-term mold resistance in humid mechanical rooms, exposed ceiling spaces, and air plenums where condensation control is critical. HVAC and refrigeration technicians typically use this product during new equipment installation, repiping, or insulation replacement.

Key Features

• Closed-cell Nitrile/PVC construction with built-in vapor retardant barrier eliminates the need for a separate vapor retarder
• Fiber-free, formaldehyde-free, and low-VOC formulation for indoor air quality protection
• Microban antimicrobial product protection provides long-term mold resistance
• 25/50 flame and smoke rating approved for use in air plenums up to 2 inches wall thickness
• R-Value of R3.3 for effective thermal performance on cold piping
• Wide service temperature range of -297 degrees F to 220 degrees F

Compatibility

Designed as an OEM-style replacement and standard-fit insulation for 0.5-inch inner diameter refrigerant and chilled-water piping in residential and commercial HVAC and refrigeration systems.

Installation Notes

Installation is performed by licensed HVAC or refrigeration technicians. Power down the system and relieve any refrigerant pressure before working on refrigerant lines. The tube slips over the pipe and is adhered at seams and butt joints using a compatible elastomeric contact adhesive. Follow applicable mechanical codes and manufacturer adhesive instructions to ensure a continuous vapor seal at all joints and penetrations.

Technical Specifications

• Wall Thickness: 0.625 inches
• Inner Diameter: 0.5 inches
• Length: 72 inches
• R-Value: R3.3
• Temperature Range: -297 degrees F to 220 degrees F
• Flame/Smoke Rating: 25/50
• Composition: Nitrile, PVC
• Weight: 0.39 pounds
• Prop 65: Yes

Standard Information

• Brand: Armacell
• Manufacturer Part Number: ARMA-APT05812
