Armacell APT05812 Apt05812 5/8Id x 1/2 Wall /Ft Ap Armaflex

Product Description

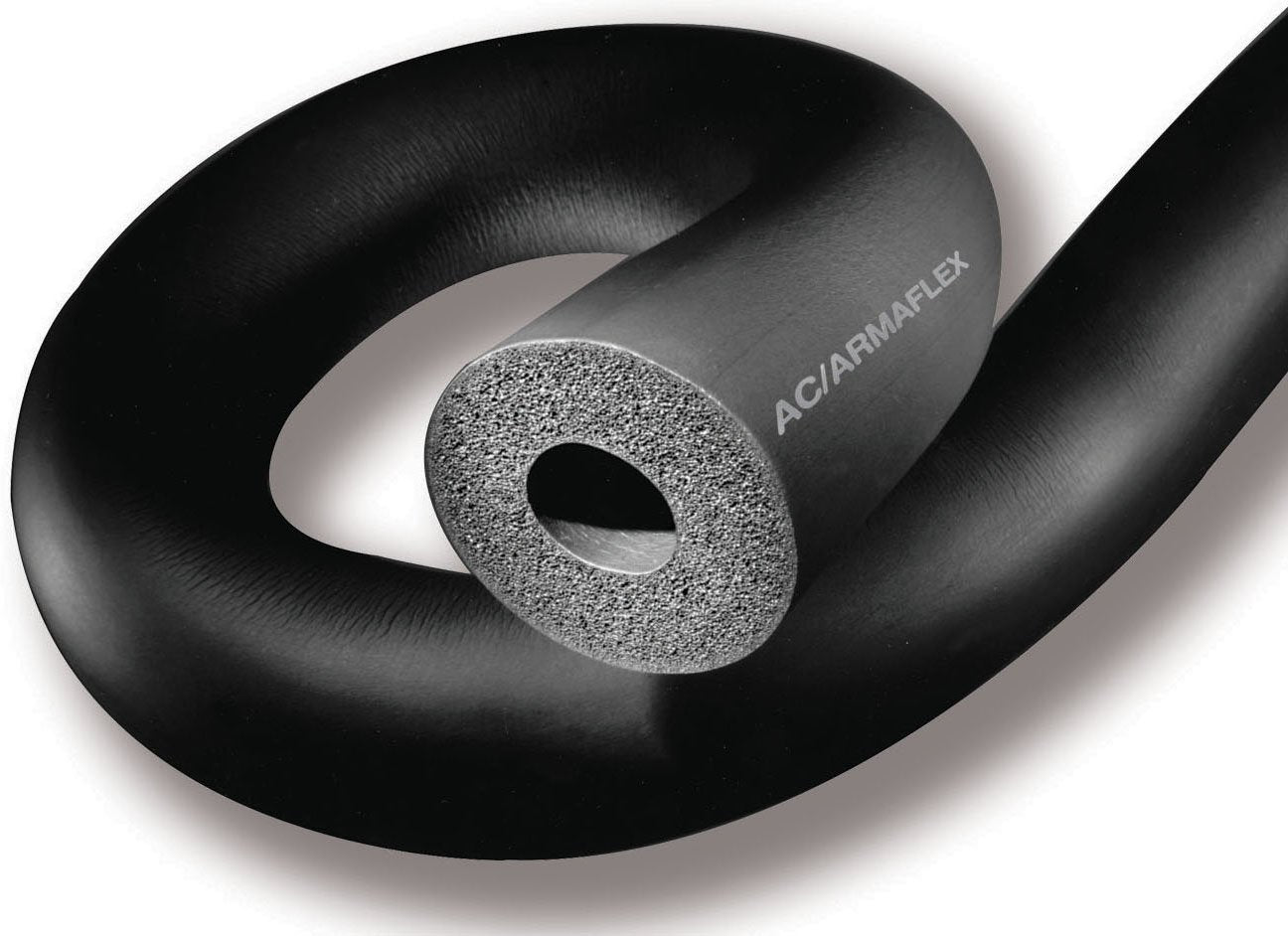

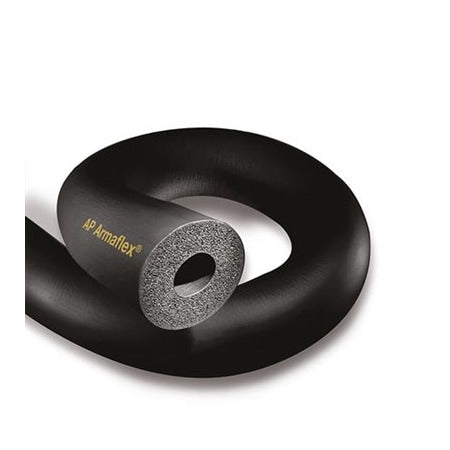

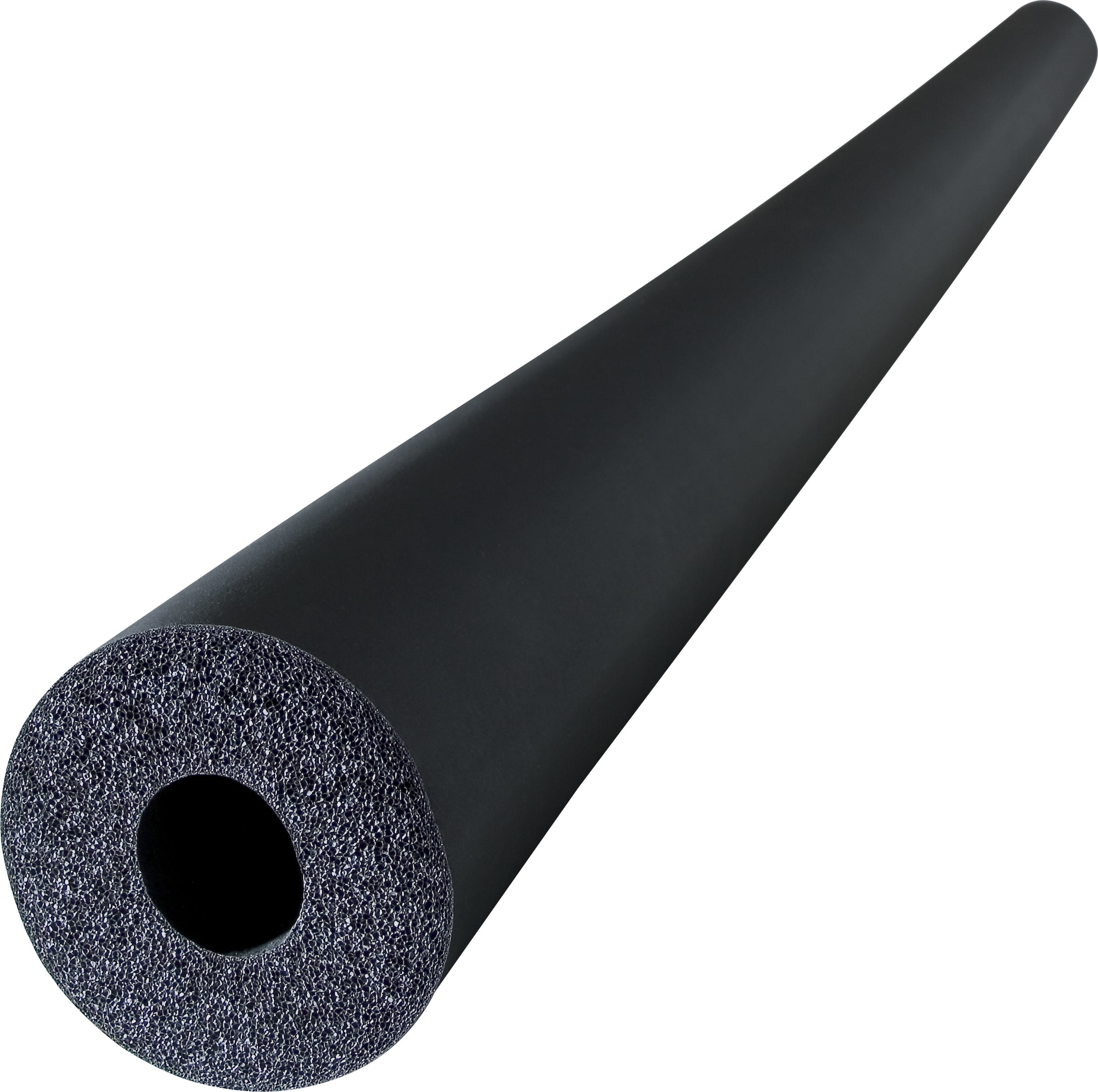

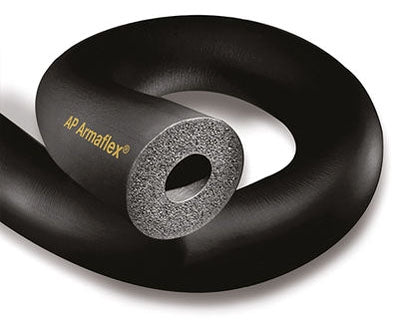

The Armacell APT05812 pipe insulation is a closed-cell, flexible elastomeric foam designed for reliable protection against condensation, mold, and energy loss. It is suitable for refrigeration, HVAC, and plumbing systems. This insulation has a 5/8 inch inner diameter and a 1/2 inch insulation thickness and comes in 6 foot lengths.

• Fiber-free and formaldehyde-free, ensuring indoor air quality.
• Closed-cell structure provides excellent condensation control.
• Built-in vapor barrier eliminates the need for an additional vapor retarder.

Product Highlights

Provides superior protection against thermal losses and moisture accumulation. It is ideal for insulating mechanical piping systems.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: APT05812
• Country of Origin: USA

Technical Specifications

• Type: Closed Cell, Flexible
• Pipe Size: 5/8 Inch Inner Diameter (Pipe Covering), 1/2 Inch Inner Diameter x 5/8 Inch Outer Diameter Copper Tubing, 3/8 Inch Inner Diameter Iron/PVC Pipe
• Insulation Thickness: 1/2 Inch
• Roll Sheet Dimensions: 6 Foot Length
• Material: Rubber
• Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
• Maximum Temperature Rating: 220 Deg F
• Minimum Temperature Rating: -297 Deg F
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
• Application: Refrigeration, HVAC and Plumbing System, Mechanical System
• Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
• Water Absorption: 0.2 Percent
• Sleeving Size: 1-5/8 Inch Inner Diameter
• Flame Spread: 25
• Smoke Developed: 50
• Brand Name: Armaflex
• Catalog Number: APT05812
• UNSPSC Code: 30141503
• Manufacturer Name: Armacell
• Manufacturer Part Number: APT05812
• Series/Model: AP
• Additional Information: Water Absorption 0.2 Percent; Sleeving Size 1-5/8 Inch Inner Diameter; Flame Spread 25, Smoke Developed 50
• Length: 6'
• Thickness: 1/2"
• Inside Diameter: 5/8
• For Pipe Size: 3/8 in, 1/2 in
• For Pipe Type: Copper, IPS
• Temperature Rating: -297 to 220 deg F
• Wall Thickness: 1/2 in
• Nominal Size: 0 to 1 inch
• Overall Length: 6 ft
• Sub Brand: Armaflex
• Water Vapor Permeability: 0.05 perm-in
• Standards/Certifications: ASTM C534, Type II - Grade 1, ASTM D1056, 2B1, ASTM E84, NFPA 255, UL 723, ASTM G21/C1338, ASTM G22, CAN/ULC S102, MEA 107-89M, MIL-P-15280J, Form S, MIL-C-3133C (MIL STD 670B), grade SBE 3, NFPA 90A, 90B, UL 181, UL 94-5VA, V0, E55798, City of LA - RR 7642, GreenGuard Gold certified, ISO 90012008 standard
• Applications: For piping associated with HVAC, VRV and VRF systems, chillers, hot and cold water, refrigeration
• Connection Type: IPS x CTS
• Construction: Closed-Cell
• Thermal Conductivity: 0.035 to 0.037 W
• Iron Pipe Size: 3/8 in
• R-Value: R3.3
