Arlington SG50A Saddlegrip Cable Connector 1/2 in

Product Description

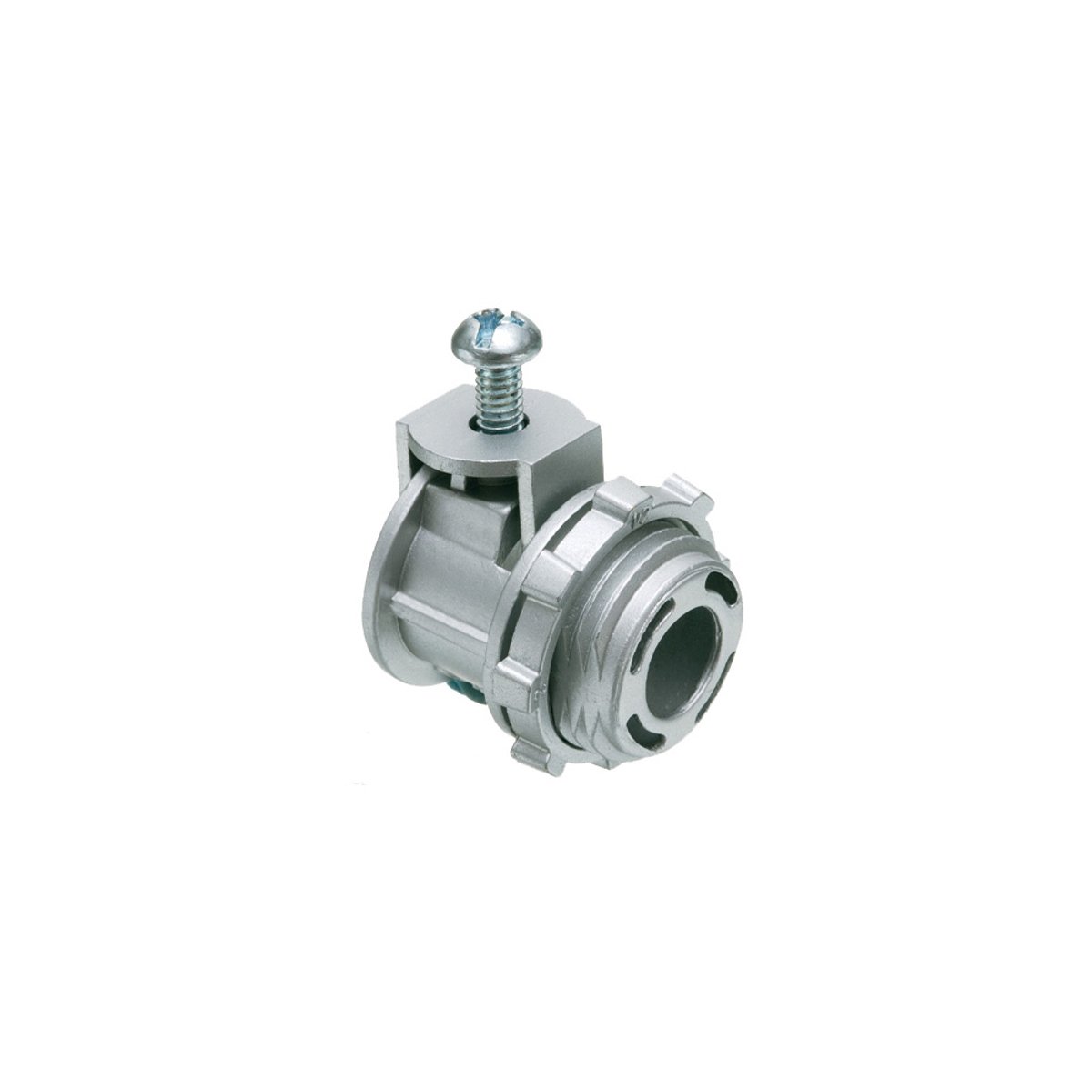

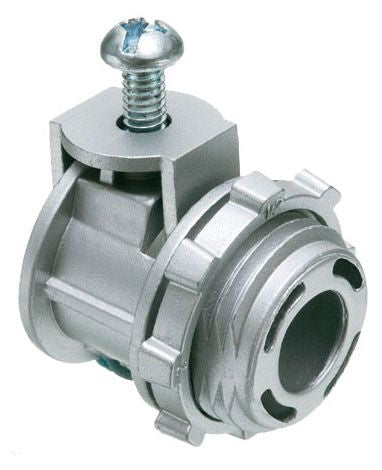

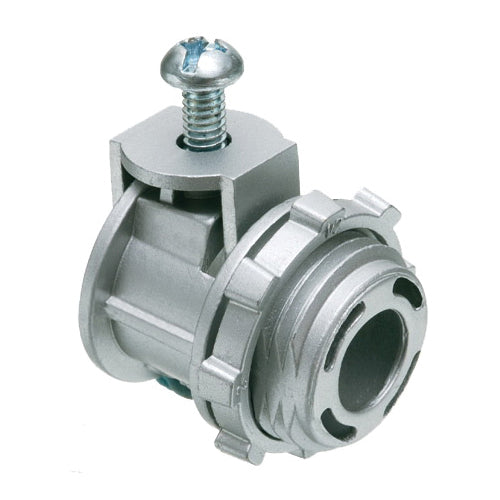

The ARLINGTON SG50A Saddlegrip Cable Connector is a straight connector with a 1/2 in trade size and 1/2 in knockout. It is designed for Aluminum/Steel/Flex/AC/AC90/MC/MCI/MCI-A cables with openings from 0.71 to 0.91 inches. The connector features a saddle/screw connection and is made of die-cast zinc.

• Connector with spring set screw for securing aluminum and steel cable
• Secures into knockout with a die cast zinc locknut
• Concrete tight when taped

Product Highlights

This Arlington cable connector ensures secure connections for various cable types and provides a concrete-tight seal when taped.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: SG50A
• Country of Origin: USA

Technical Specifications

• Color: Silver
• Material: Die Cast Zinc
• Cable Type: Aluminum/Steel/Flex/AC/AC90/MC/MCI/MCI-A
• Trade Size: 1/2 in
• Knockout Size: 1/2 in
• Cable Openings: 0.71 to 0.91 in
• Connection Type: Saddle/Screw
• Country of Origin: US
• Sub Brand: Saddlegrip
• Made in USA: Yes
• Application: AC/MC/HCF/MCI-A/AC90/ACG90/Flex/MC-PCS
• Special Features: With Insulated Throat, Concrete Tight
• Standard: CULUS and CSA
• Item Type: Snap-on
• Size: L(1.511) x W(1.277) x H(1.277)
• Type: Straight
• ECCN: EAR99
• UNSPSC: 39121419
• Standards/Approvals: CSA File No. LR49636|cULus 372D|UL Listed
• Conductor Range: 0.71 to 0.91
• End Stop Diameter: 0.620
• Cable Range: 0.710 - 0.910
• End Stop: .620
