Arlington RTS421 Roof Topper Support 21 inches Strut

Product Description

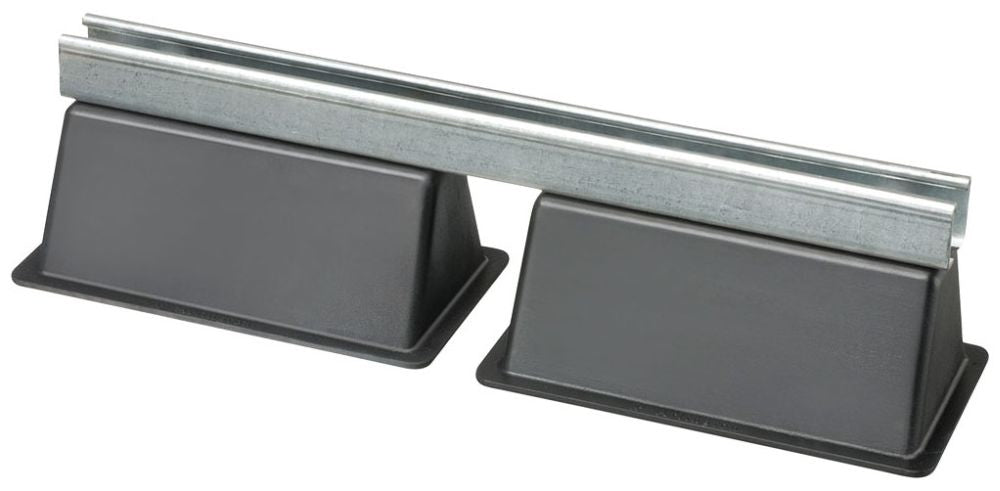

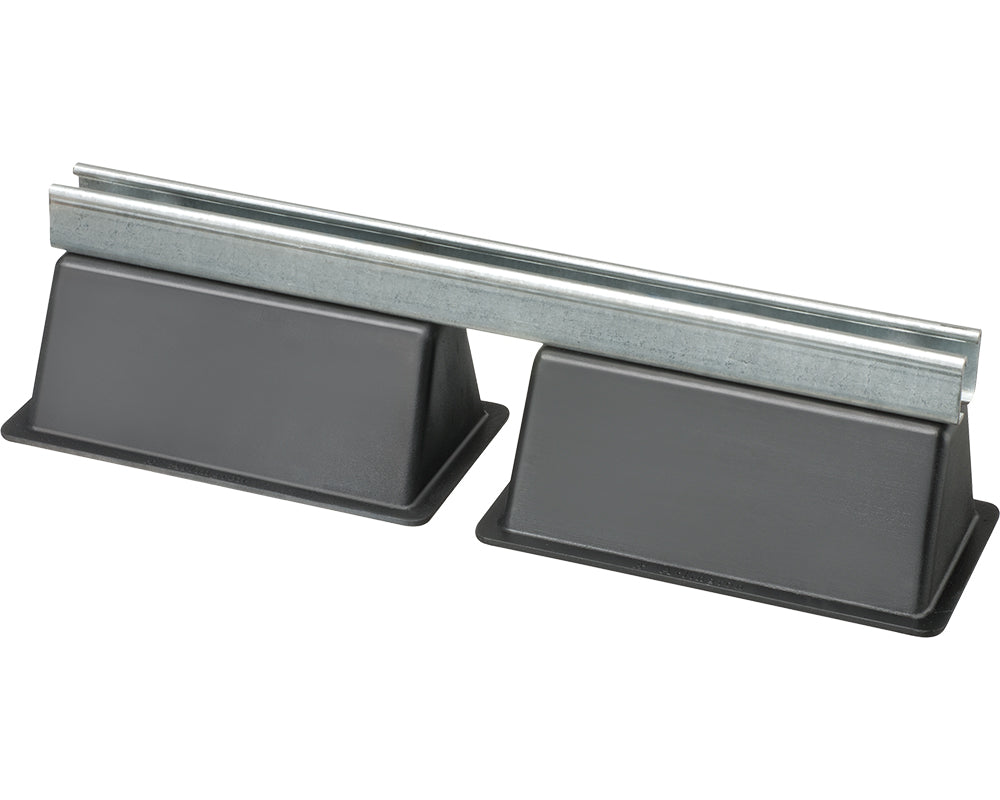

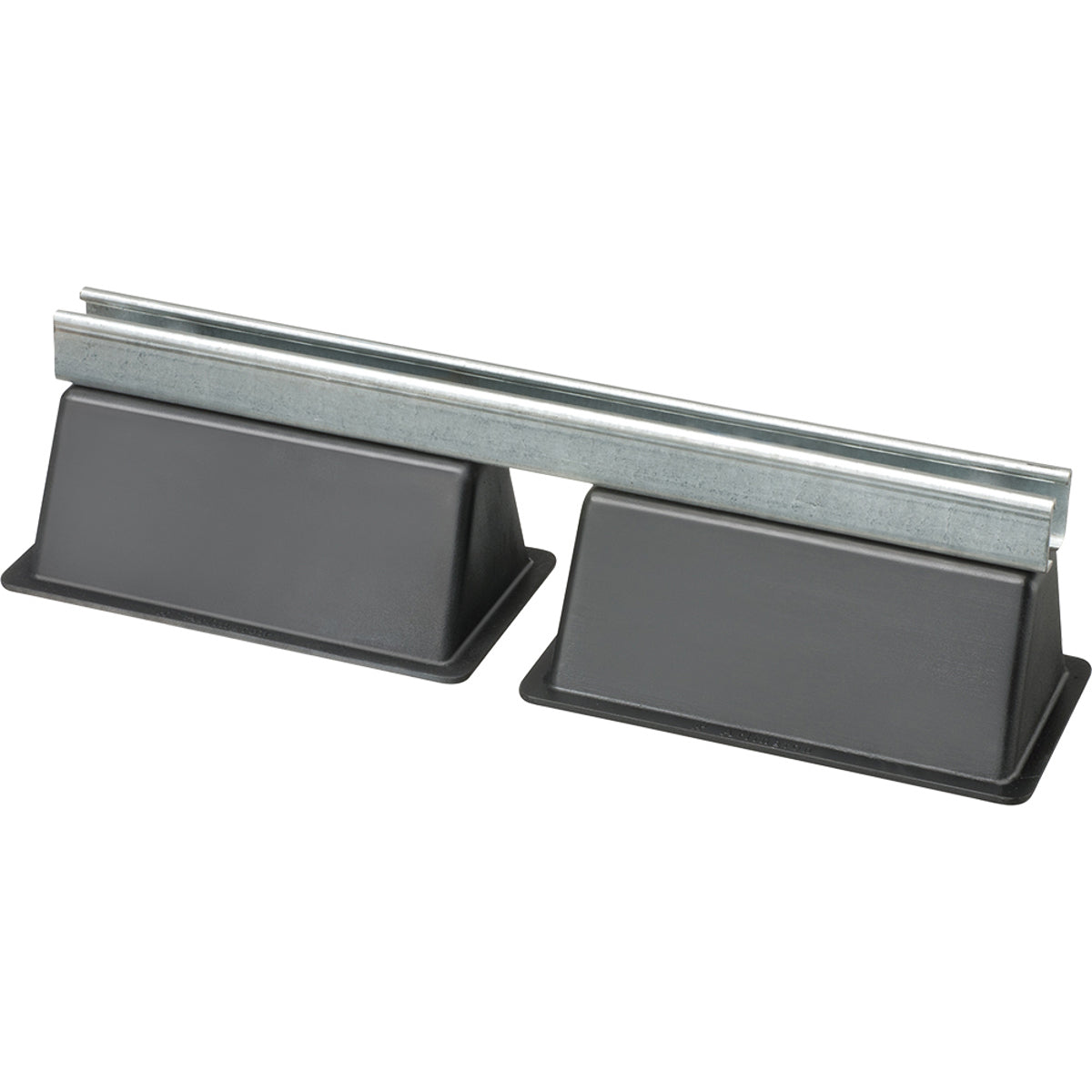

The Arlington RTS421 Roof Topper supports and raises conduit or raceway 4" off the roof surface. It is made of 100% UV resistant recycled material and supports up to 2000lbs with a 21" strut and split base. Designed for new work and retrofit applications, it allows for temperature adjustment for circular conduit.

• Supports and raises conduit or raceway 4" off the roof surface
• Made of 100% UV resistant recycled material
• Supports up to 2000lbs

Product Highlights

Raises conduit off roof surface to comply with NEC requirements. Heavy-duty base sits on the roof deck without the need for mechanical fasteners.

Product Information

Standard Information

• Brand: Arlington
• Manufacturer Part Number: RTS421
• Country of Origin: USA

Technical Specifications

• Catalog Number: RTS421
• Manufacturer: Arlington
• Brand: Arlington
• Sub Brand: Roof Topper
• Country of Origin: United States
• Made in USA: Yes
• Application: New work and Retrofit
• Material: 100% UV Recycled Plastic
• Special Features: Made of UV resistant recycled material
• Depth: 4 in
• Length: 6 in
• Width: 22.697 in
• Suitable For Use With: Circular/Raise Conduit and 4 in Off Roof Surface Raceway
• Mfg Standards/Approvals: Meets 2011 NEC Requirements
• Type: Open Base
• Load Rating: 2,000lbs
• Usage: Raise conduit off roof surface to comply with 2011 NEC requirements.
• Comes With: (2) Roof Topper® Bases (1) Installed Strut
