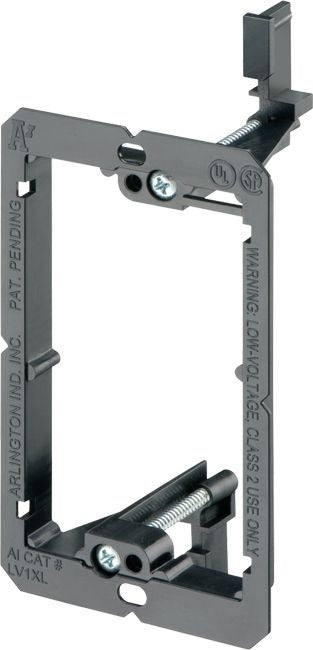

Arlington lv1xl Low Voltage Mounting Bracket 10 Pack

Product Description

The ARLINGTON lv1xl is a low voltage single-gang mounting bracket designed for installation in walls with up to 5/8 inch double drywall. It ships with extra-long screws to accommodate the added wall thickness, giving installers a secure, flush mount without improvising fasteners. This bracket is used to support low voltage wiring devices such as data plates, cable TV faceplates, and structured wiring inserts. Electricians and low voltage technicians install this type of bracket during rough-in or finish work on residential and light commercial projects. The 10-pack format suits multi-room or multi-unit jobs where consistent hardware across all mounting locations matters.

This bracket is suited for walls finished with double-layer 5/8 inch drywall, a common assembly in fire-rated wall construction and soundproofing applications. It is a standard choice for installing low voltage mounting brackets in new construction and retrofit projects where thicker drywall is specified. The extra-long screw design eliminates the need to source specialty fasteners separately, keeping the installation straightforward and code-friendly.

Key Features

• Accepts up to 5/8 inch double drywall wall assemblies
• Includes extra-long screws for secure fastening through thicker drywall
• Single-gang configuration fits standard low voltage device plates
• 10-pack quantity supports multi-room and multi-unit installations
• No electrical box required, installs directly into the drywall cutout

Compatibility

Designed as an OEM-style replacement and standard-fit bracket for single-gang low voltage mounting applications in residential and light commercial drywall assemblies up to 5/8 inch double drywall thickness.

Installation Notes

Low voltage mounting brackets of this type are typically installed by electricians or low voltage technicians and do not require a junction box. Cut the wall opening to the specified dimensions before inserting the bracket, and ensure the drywall surface is clean and flat for a flush fit. No line voltage is present at this bracket, but always verify the work area is clear of active wiring before cutting into any wall. Installation should comply with applicable NEC low voltage wiring guidelines and local building codes.

Technical Specifications

• Configuration: Single gang
• Maximum Wall Thickness: 5/8 inches double drywall
• Includes: Extra-long screws
• Quantity per Pack: 10

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: lv1xl
