Product Description

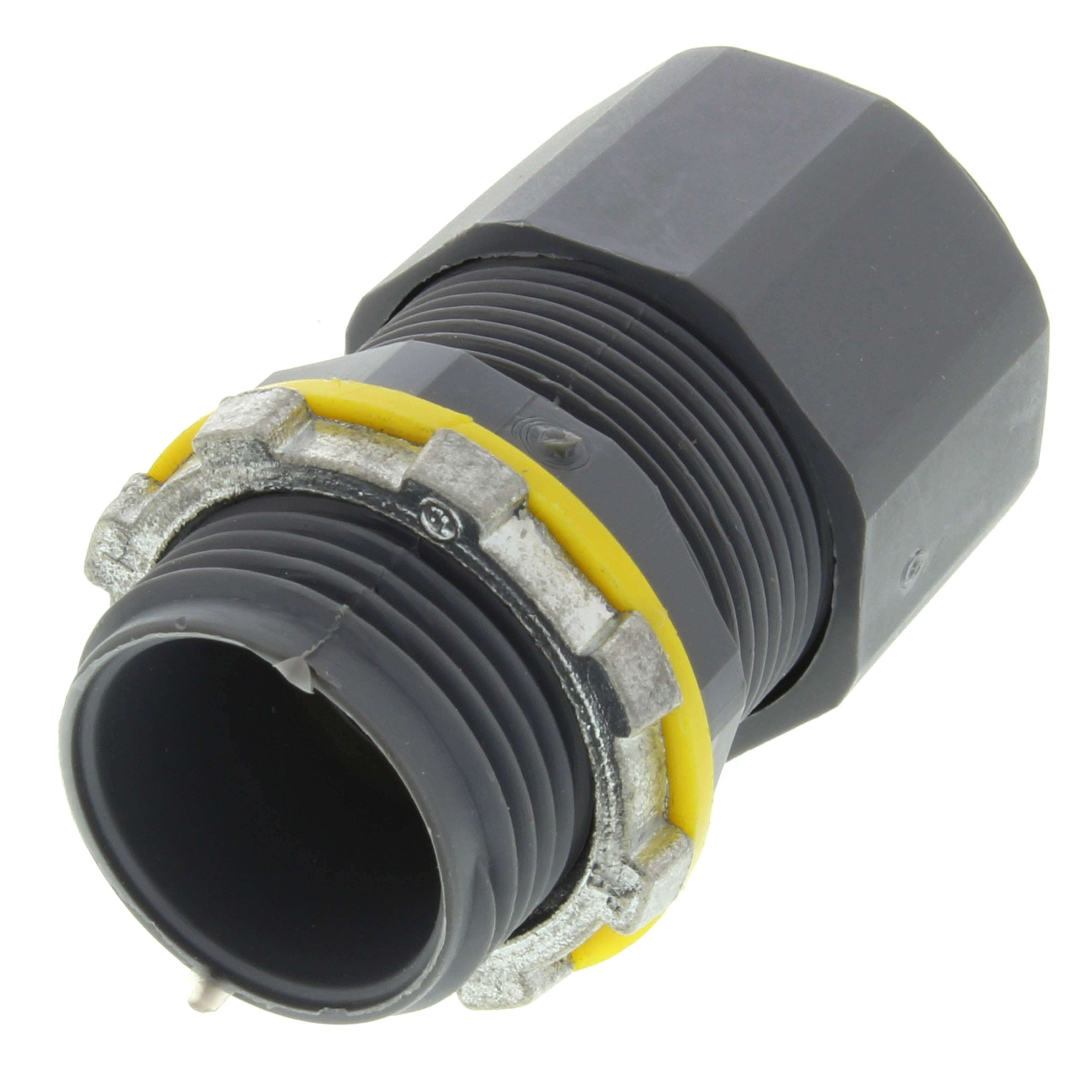

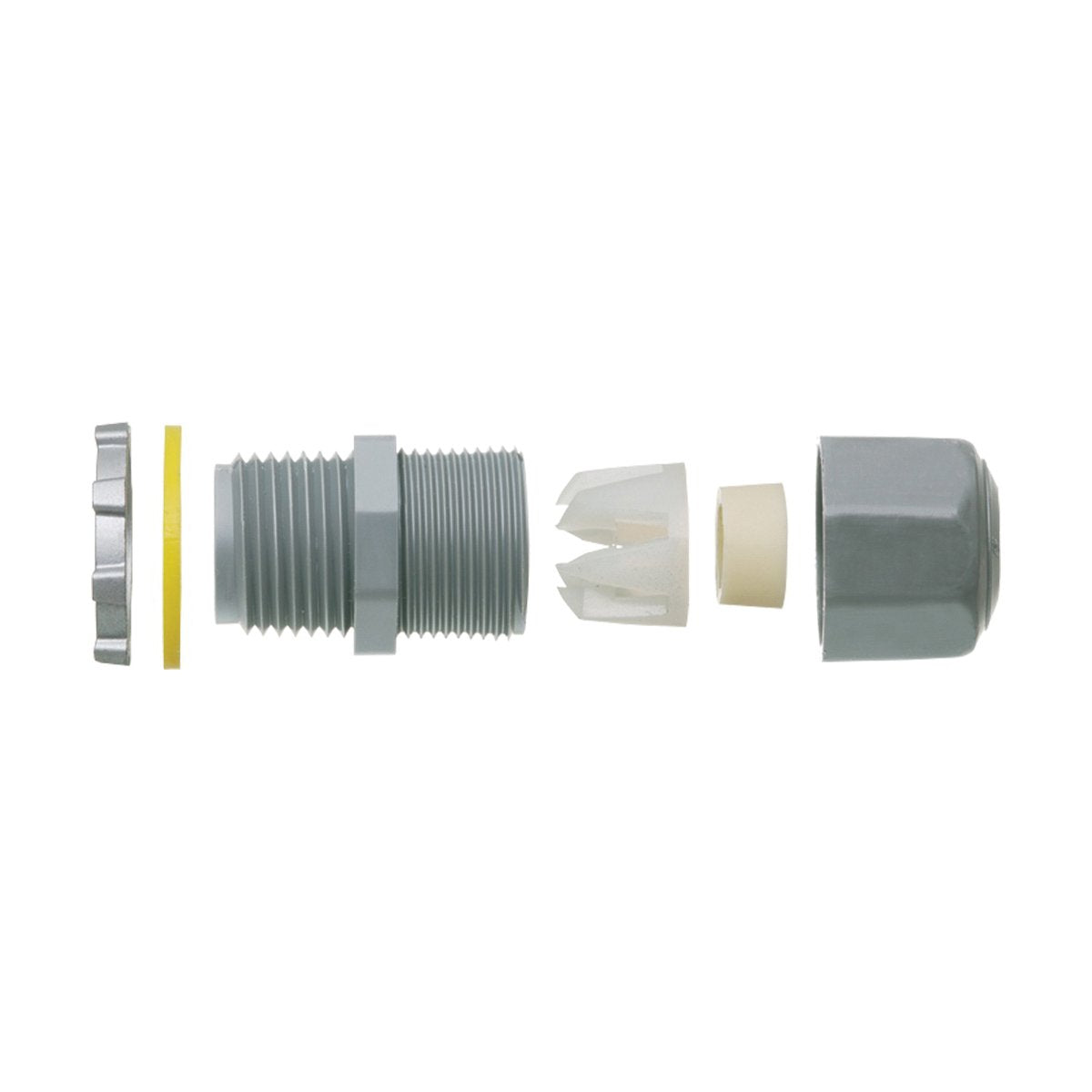

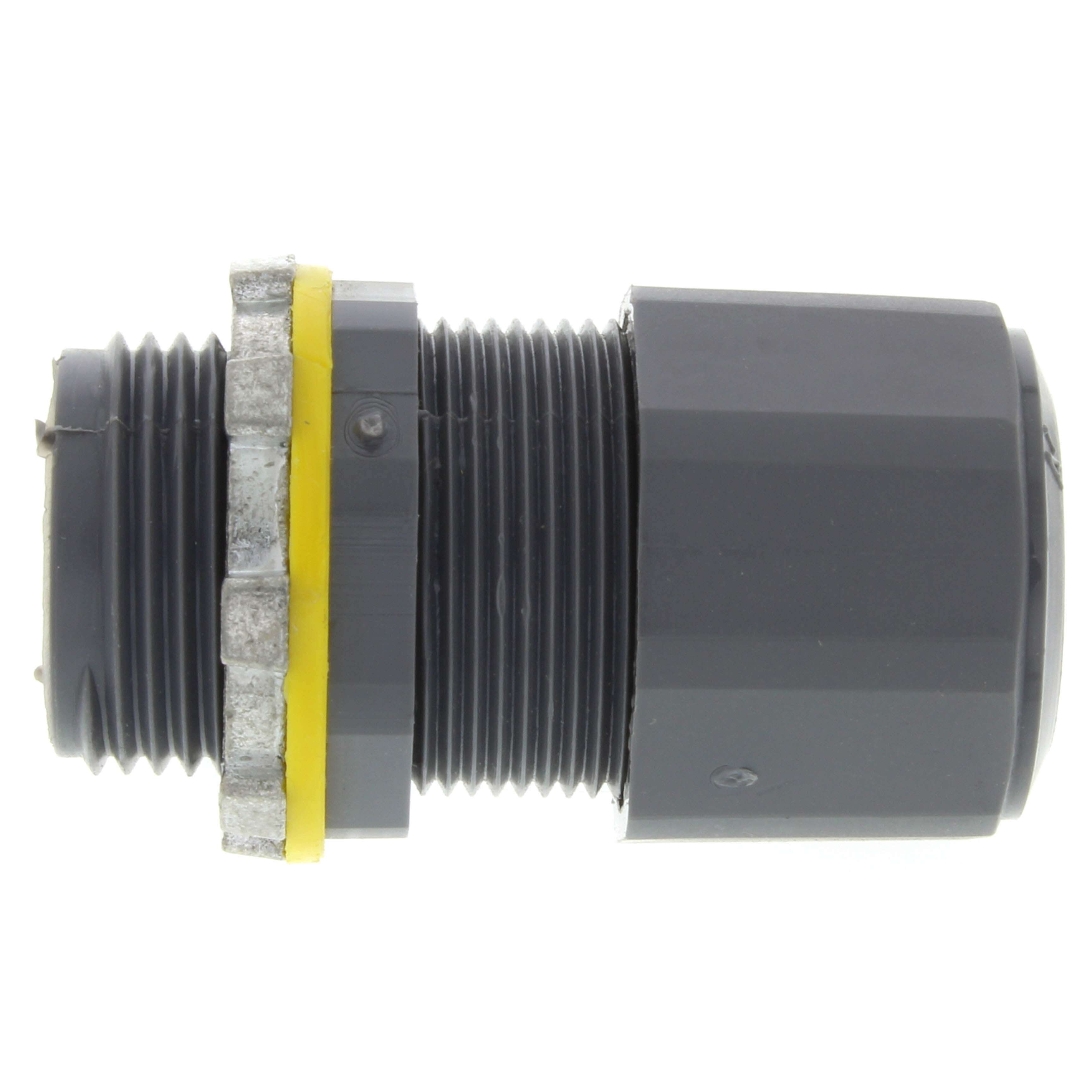

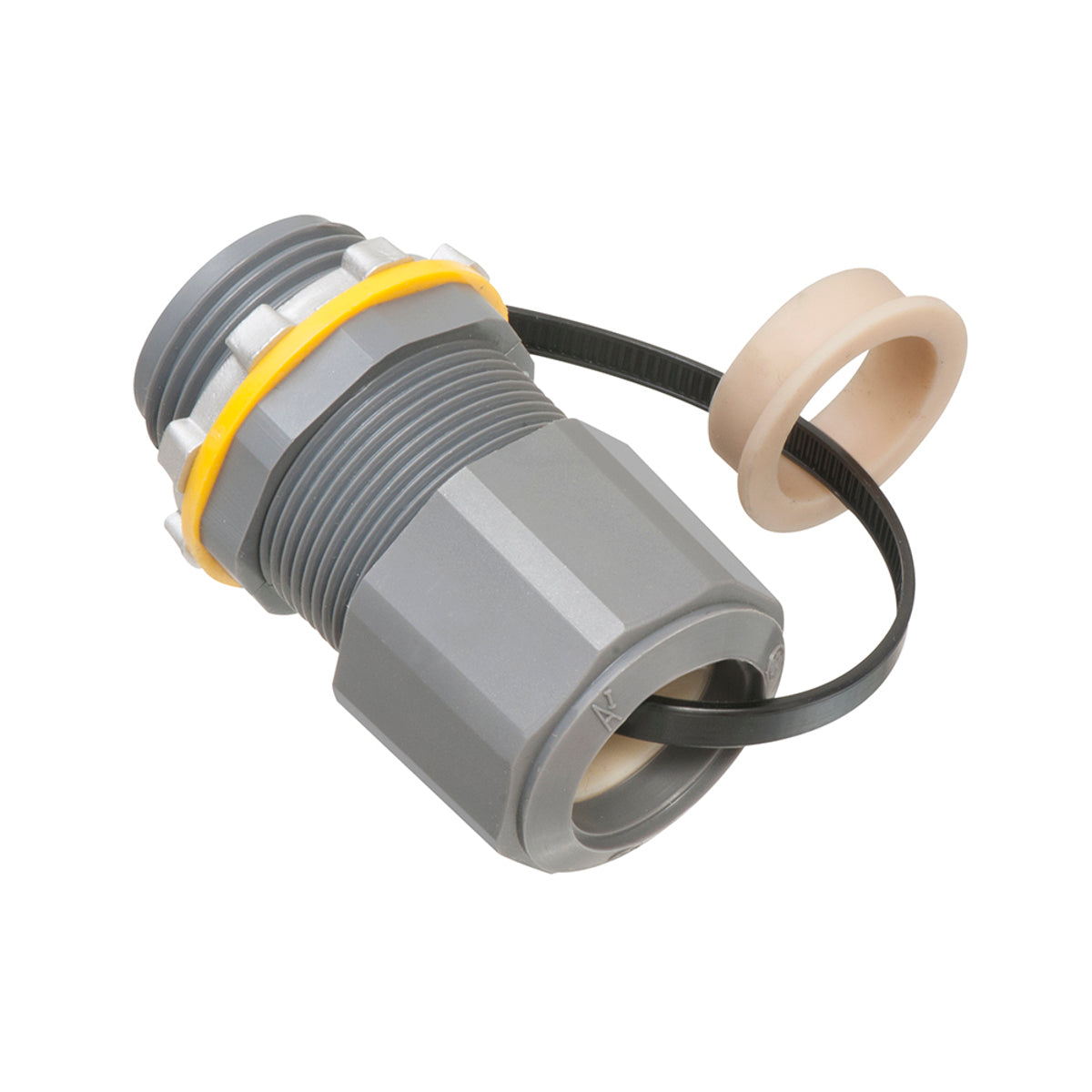

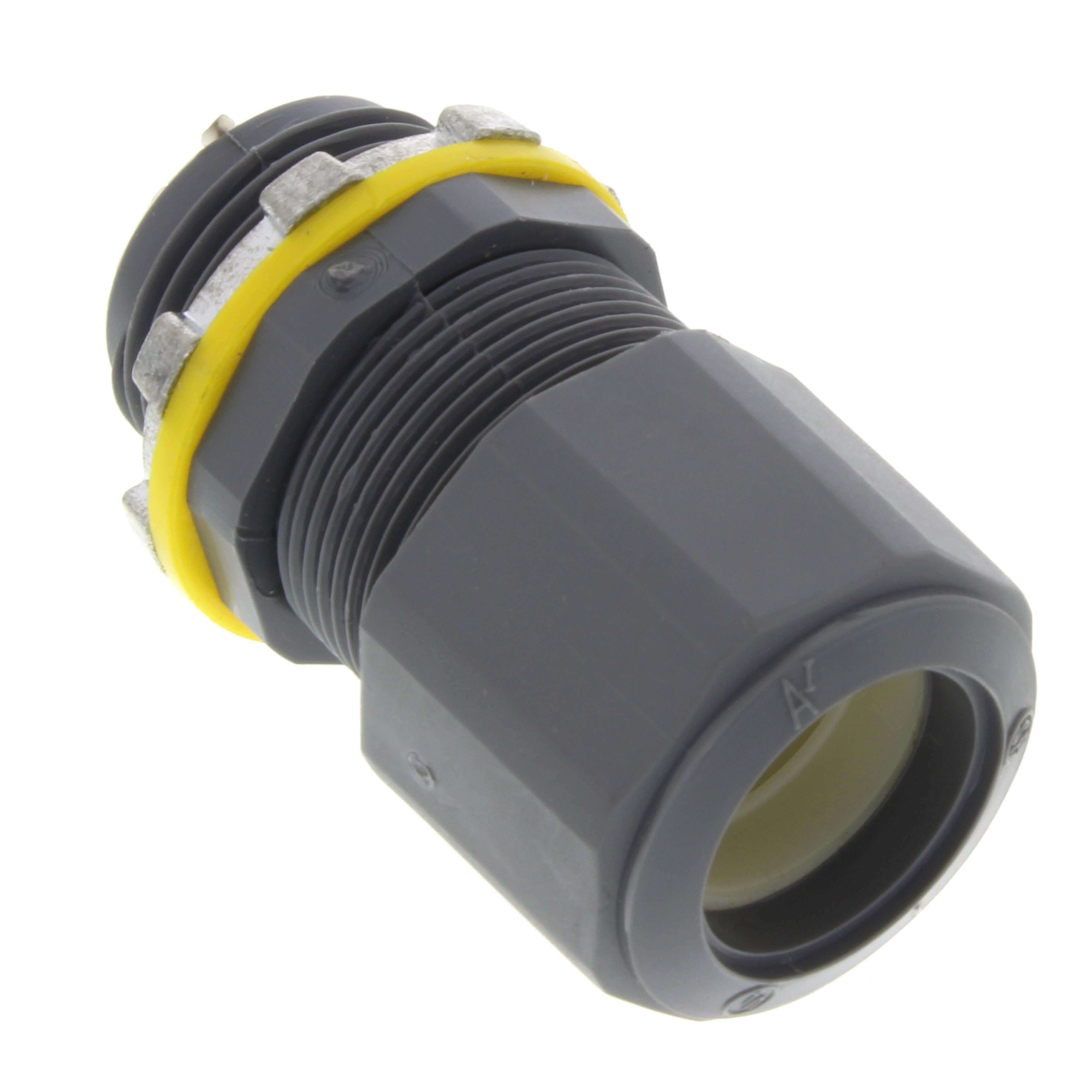

The Arlington LPCG757 cord connector is a low profile, liquidtight, oiltight strain relief with a unique grommet and gripping fingers. These connectors accommodate cable openings from 0.385 to 0.75 inches and have a 3/4 inch trade size. A sealing ring assures a liquidtight seal when installed in non-threaded openings. Includes grommets and locknut.
- Oil-tight, furnished with sealing ring and locknut
- Liquidtight and provides strain relief termination
- Constructed from nylon, polyethylene, santoprene, and zinc
Product Highlights
The LPCG757 cord connector offers a liquidtight seal and superior pullout resistance by tightening the nut. It has the largest cord range in the industry.
Product Information
Standard Information
-
Brand: ARLINGTON
-
Manufacturer Part Number: LPCG757
-
Country of Origin: US
Technical Specifications
-
Type: Low Profile Liquidtight Oiltight Strain Relief
-
Cable Openings: 0.385 to 0.75 in
-
Manufacturer: ARLINGTON
-
Material: Nylon/Polyethylene/Santoprene™/Zinc
-
Trade Size: 3/4 in
-
Country of Origin: US
-
Thread Size: 3/4 Inch
-
Approval: UL, CSA
-
Application: Liquidtight, Oiltight, Strain Relief
-
Cord Size: 0.385 to 0.75 Inch
-
Thread Length: 0.6
-
Standards: UL E105706 Listed, CSA LR49636 Certified
-
Brand: ARLINGTON
-
Hub Size: 3/4 Inch
-
Connection Type: Straight Male
-
Connection Rating: Liquidtight
-
Connector Material: Nylon
-
Includes: Sealing Ring and Locknut
