Arlington Industries SG3838 Duplex Saddle Grip Connector 1/2 inches Knockout

Product Description

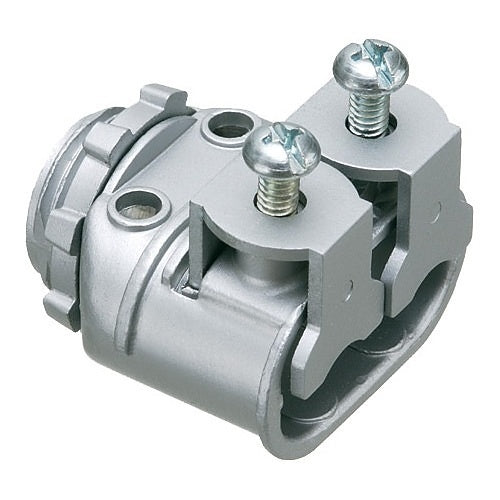

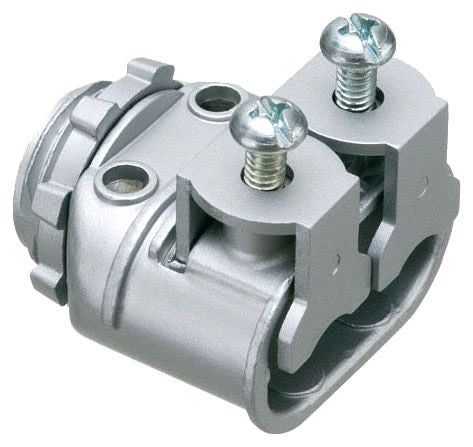

The ARLINGTON INDUSTRIES SG3838 duplex saddle grip connector is a zinc die-cast, 1/2" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. It snaps into a knockout with an external spring steel clip and is concrete tight when taped. It is suitable for armored cable and flexible metal conduit.

• Concrete tight when taped
• Snaps into knockout with external spring steel clip
• For use with steel and aluminum flexible conduit

Product Highlights

This Arlington Industries saddle grip connector is UL Listed and CSA approved. It features a screw clamp connection and is made of die-cast zinc.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: SG3838
• Country of Origin: USA

Technical Specifications

• Approval: UL (Canada and US), CSA
• Cable Opening: Duplex
• Cable/Conduit Type: Armored Cable, Flexible Metal Conduit, Metal Clad Cable
• Cord Size: 0.445 to 0.612 Inch
• Installation: Saddle
• Knockout Size: 1/2 Inch
• Manufacturer Name: Arlington Industries
• Material: Die-Cast Zinc
• Product UPC: 01899717383
• Throat Type: Non-Insulated
• Cable Openings: 0.445 to 0.612 in
• Cable Type: Aluminum/Steel/Flex/AC/AC90/MC/MCI/MCI-A
• Connection Type: Screw Clamp
• Number of Conductors: 2
• Trade Size: 3/8 in
• Part Number: SG3838
• Cable Range: (2) 0.445 - 0.610
• Brand Name: Arlington Industries
