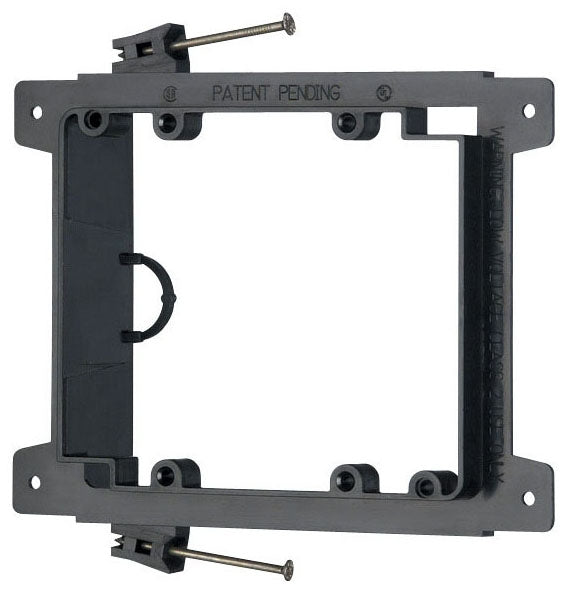

Arlington Industries LVN2 Low Voltage Mounting Bracket 2-Gang

Product Description

The ARLINGTON INDUSTRIES LVN2 is a low voltage mounting bracket designed for new construction. It comes complete with nails parked in place ready to install. It installs in 25% less time than steel or plastic mud rings. The bracket has a built-in loop to tie off cable and eliminates pushback.

• Built-In Loop to Tie Off Cable
• Eliminates Pushback
• Comes Complete with Nails Parked in Place Ready to Install

Product Highlights

This 2-gang, nail-on bracket is ideal for Class 2 communications, computer, and cable TV wiring in new construction.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: LVN2
• Country of Origin: US

Technical Specifications

• Approval: UL, CSA
• Manufacturer Name: Arlington Industries
• Material: Plastic
• Mounting: Nail on
• Product UPC: 01899700275
• Type: Double Gang
• Series: LV Series
• Suitable For Use With: Cable Management System
• Brand: ARLINGTON
• Model Number: LVN2-1
• Manufacturer: Arlington Industries
• Manufacturer Part Number: LVN2-1
• Mounting Type: Wall Mount
• ADI Part Number: 9N-LVN2
• Product Model: LVN2
• Product Name: Nail On Low Voltage Mounting Brackets for New Construction
• Product Series: LVN
• Product Type: Mounting Bracket
• Device Supported: Mounting Low-Voltage Products
• For Low Voltage Class 2 Use Only: Yes
• Application: New Construction
• Gang: Dual Gang
• Back Type: Open Back
• Minimum Sheetrock or Panel Thickness: 0.45"
• Side Wall Thickness: 0.080"
• Nailing Flange Thickness: 0.090" (Front and Side)
• Panel Cut Out Dimensions: 4.12" W x 3.60" H
• MPN: LVN2
• Box / Bracket / Plate Type: New Construction
• Size: Two Gang
• Country of Origin: United States
