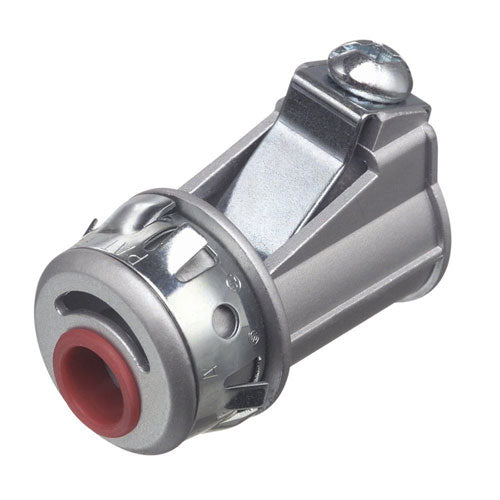

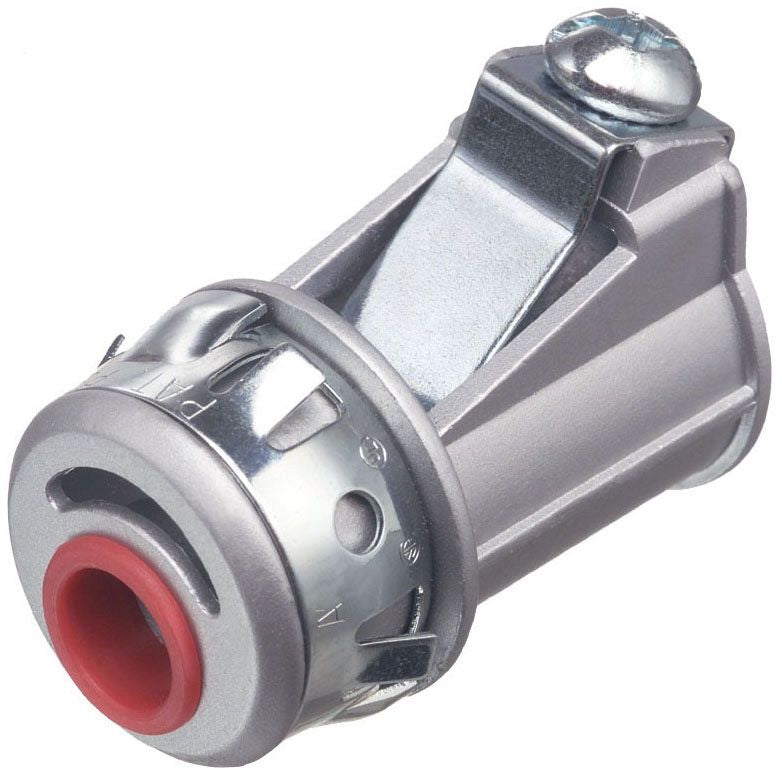

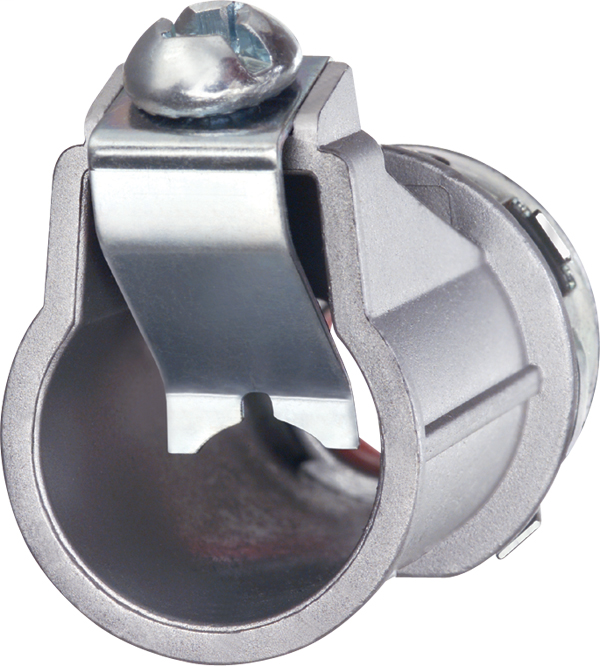

Arlington Industries 3810AST Conduit Adapter (3/8 Knockout)

Product Description

The Arlington Industries 3810AST conduit adapter is a zinc die-cast connector that snaps quickly onto the conduit with a removable screw in spring steel clip, and then snaps into the knockout with an external spring steel clip. No tools are required for installation. It comes with an insulated throat and is concrete tight when taped.

• Low Cost, Saves Time and Money
• Fast and Easy to Install
• Built-In End Stop in Fitting

Product Highlights

The 3810AST connector is designed for use with steel and aluminum flexible conduit and MC cable. It features a snap-in connection and an insulated throat.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: 3810AST
• Country of Origin: United States

Technical Specifications

• Brand Name: Arlington Industries
• Manufacturer Part Number: 3810AST
• Type: Straight
• Approval: UL (Canada and US), CSA
• Cable Opening: 0.37 to 0.49 in
• Cable/Conduit Type: Armored Cable/Flex Metal Conduit/Metal Clad Cable
• Cord Size: 0.37 to 0.49 Inch
• Installation: Snap-In
• Knockout Size: 1/2 Inch
• Material: Die-Cast Zinc
• Throat Type: Insulated
• Cable Type: Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI-A/MC-PCS
• Connection Type: Snap-In
• Trade Size: 3/8 in
• Listing: cULus, CSA
• Material(s): Zinc
• Cable Range: 0.370 - 0.490
• Conduit Size (In.): 3/8
• KO Size (In.): 1/2
• Fits: MC/HCF steel and AC/HCF steel and aluminum cable
• Mounting Style: Through-Hole
