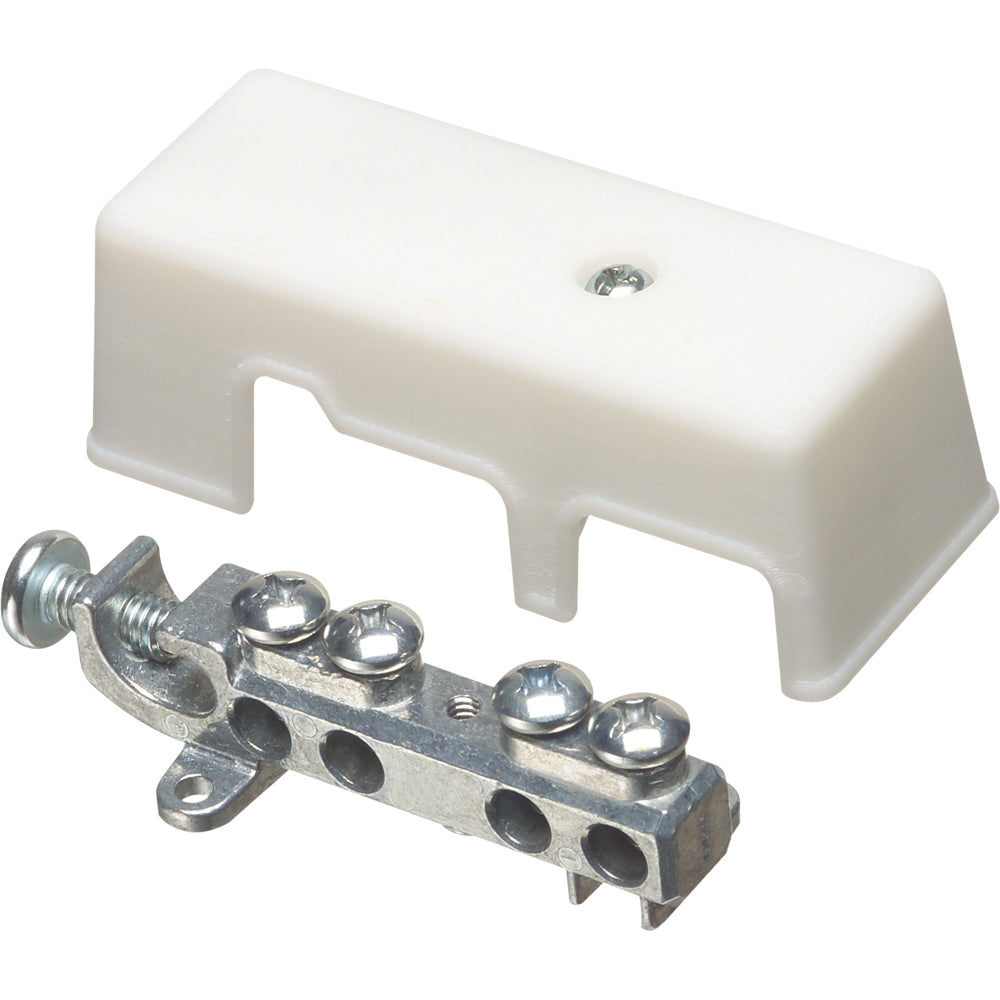

Arlington GB5 Grounding Bridge

Product Description

The Arlington GB5 Grounding Bridge offers a reliable solution for intersystem grounding. This component features two different grounding conductor sizes and is suitable for both outdoor and indoor applications. With four termination points, this product exceeds the NEC requirements for grounding connections, providing increased versatility for installation.

• Has four termination points for enhanced functionality.
• Accommodates wire sizes from #4 to #14, solid or stranded.
• Includes a lay-in style lug for easy attachment to grounding conductors.

Product Highlights

The Arlington GB5 Bridge ensures proper bonding between power and communication systems, allowing for efficient installations.

Product Information

Standard Information

• Brand: Arlington
• MPN: GB5

Technical Specifications

• Bar Length: 0.872 inches
• Bar Width: 3.383 inches
• Material: Zinc with painted plastic cover
• Number of Holes: 4
• Weight: 0.5 pounds
• Conductor Range: #4 to #14 AWG solid or stranded
• Grounding Electrode Size: #6 to #2 AWG
• Application: Indoor/Outdoor, Communication Systems
• Warranty: 1 Year Warranty Against Manufacturer Defects
