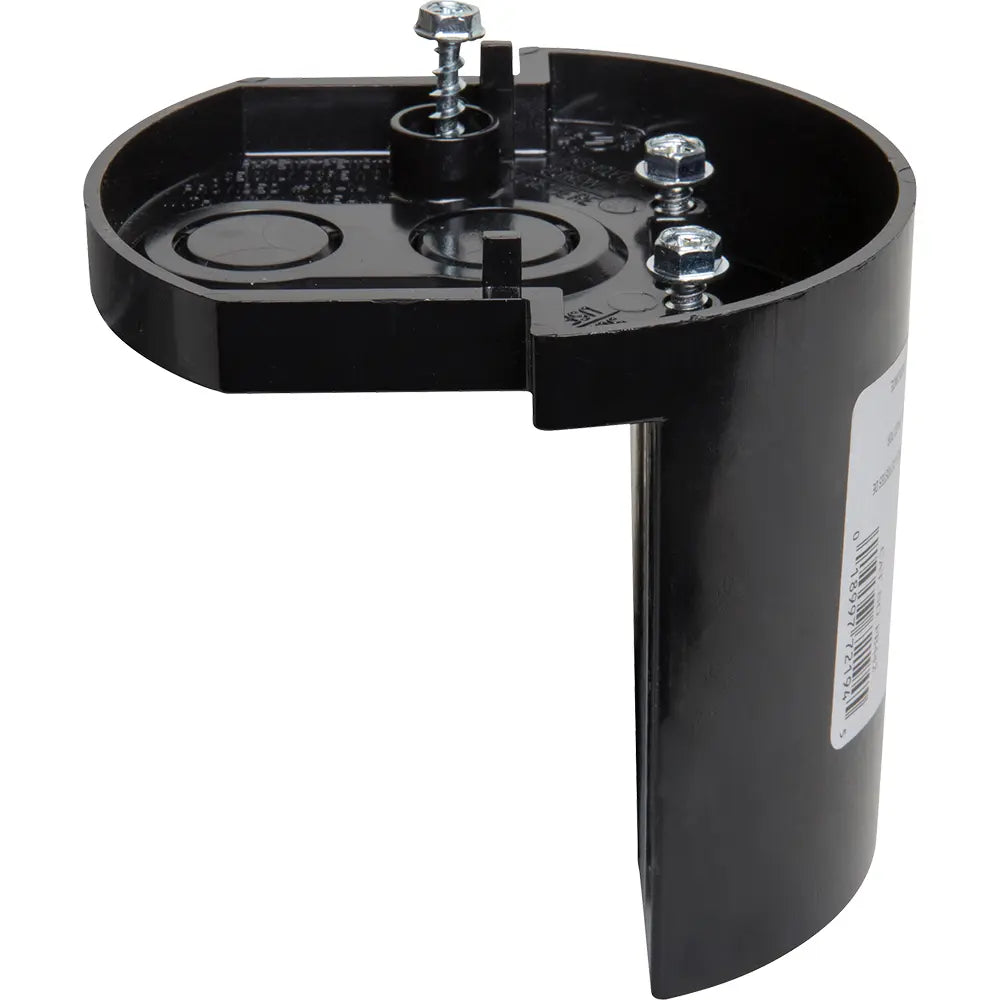

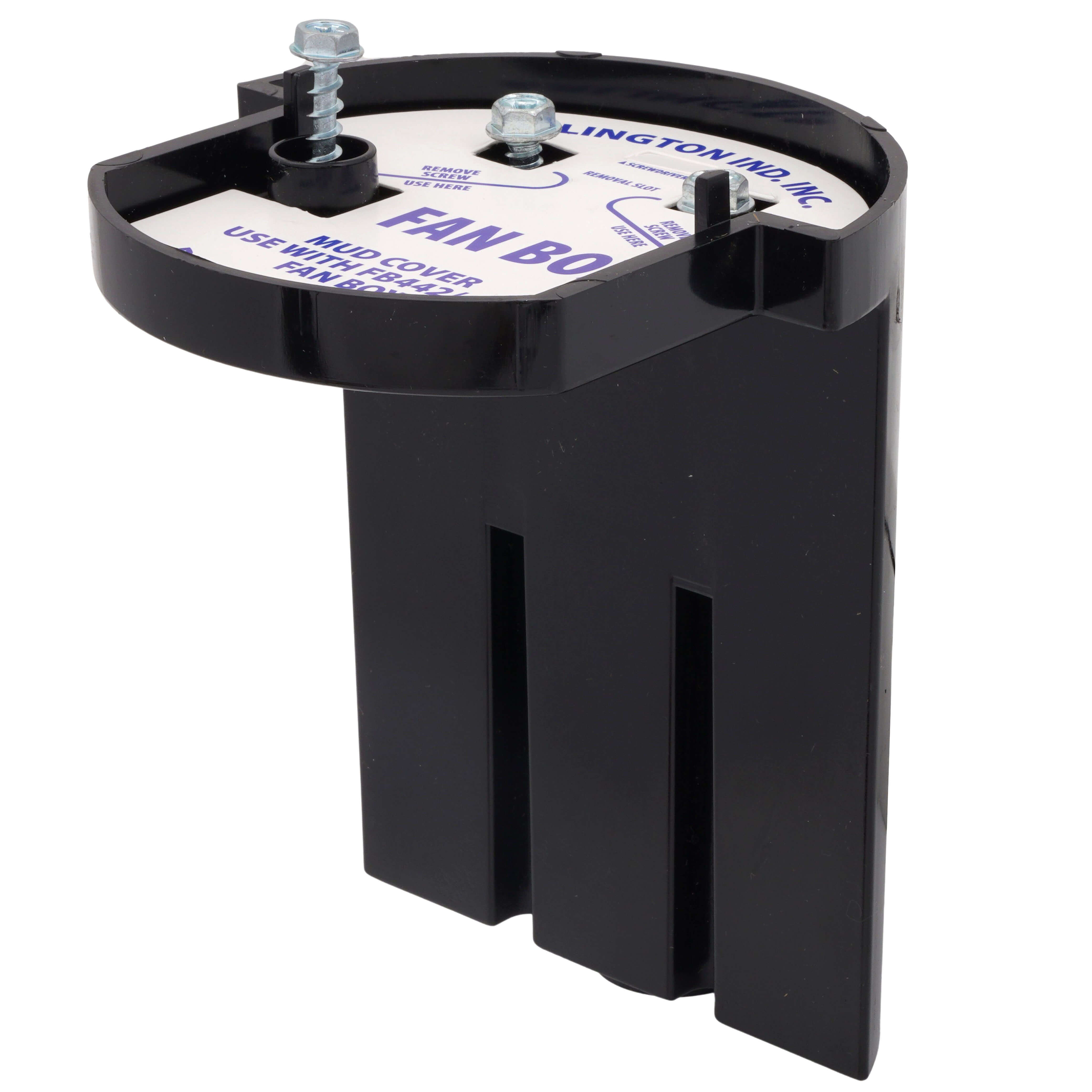

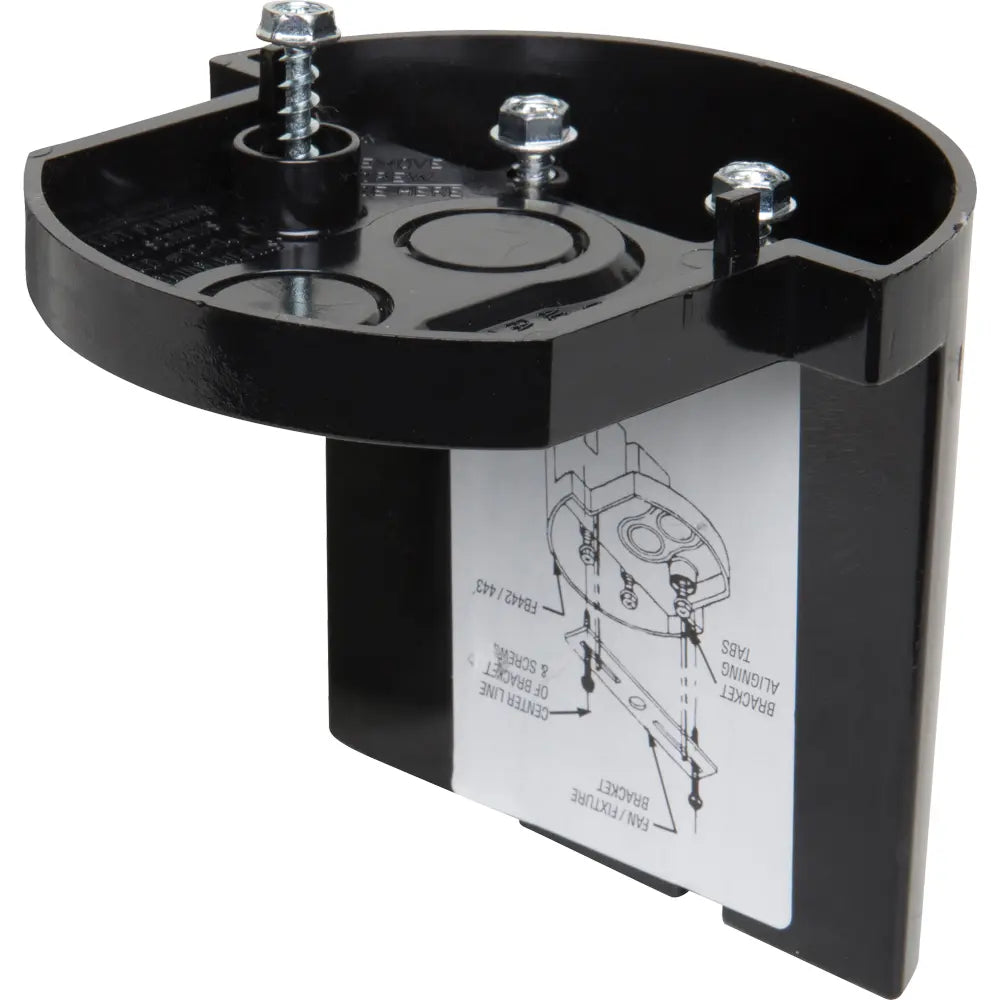

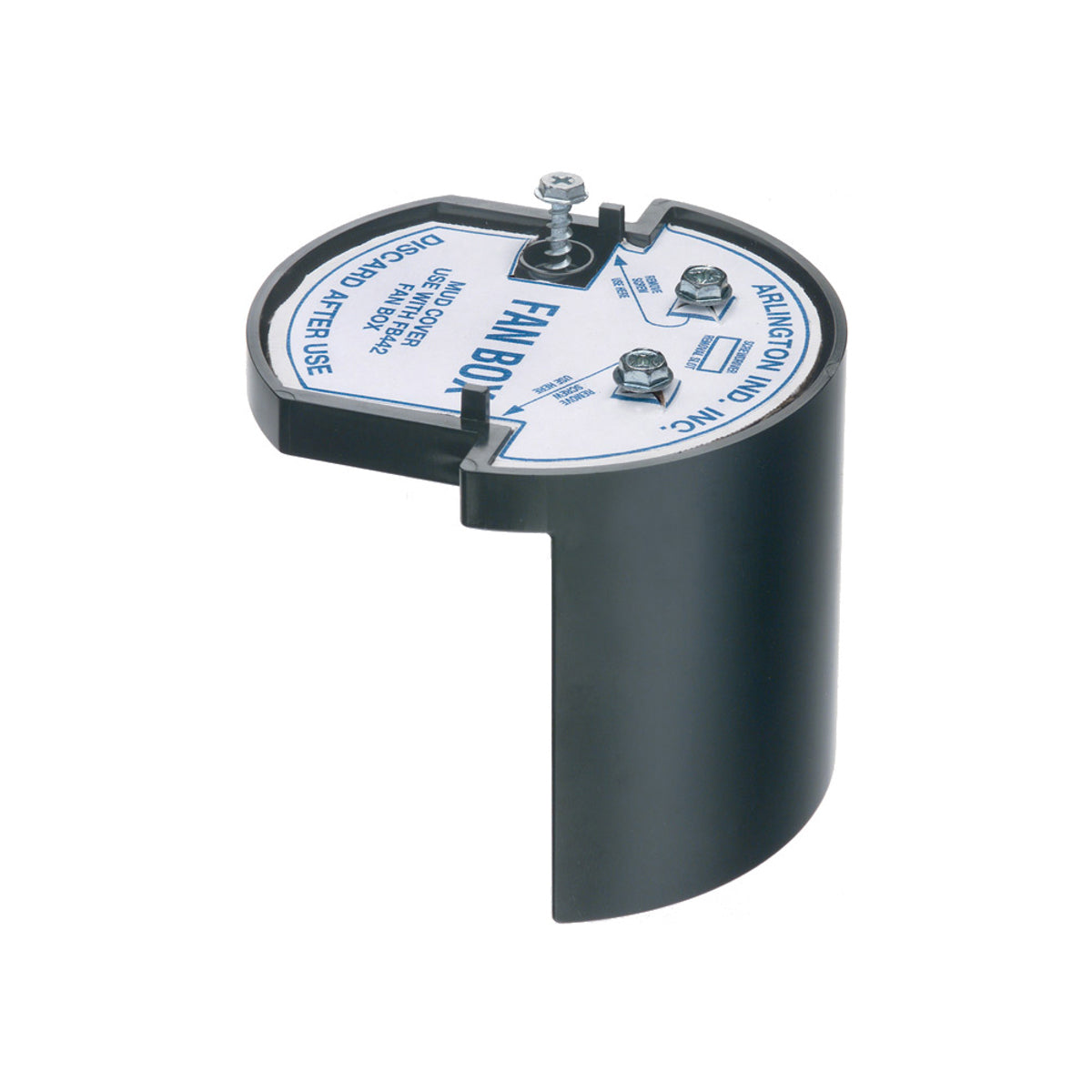

Arlington FB442 Fan/Fixture Mounting Box 13.4 cu-in

Product Description

The ARLINGTON FB442 is a fan/fixture mounting box with a 13.4 cu-in capacity. This L-shaped box is designed for mounting fans and fixtures to single or double joists. It features a knockout cable entry and includes a center screw and installed NM cable connector. It is suitable for use with 1/2" or 5/8" drywall.

• L-shaped design for fan and fixture mounting
• 13.4 cu-in capacity
• Knockout cable entry

Product Highlights

The Arlington FB442 provides a secure and convenient mounting solution for ceiling fans and light fixtures.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: FB442
• Country of Origin: USA

Technical Specifications

• Mounting Type: Threaded
• Capacity: 13.4 cu-in
• Shape: L-Shape
• Material: Plastic
• Diameter: 4.24 in
• Cable Entry Size: Knockout
• Batteries Included?: No
• Batteries Required?: No
• Fire Rating: 2 hour
• Fan Load Rating: 70lb
• Fixture Load Rating: 200lb
• Drywall Thickness: 1/2" or 5/8"
• Cubic Capacity: 13.4 Cubic Inches
• Standard: UL
• Application: For used to Install NM cable connector
• Includes: Center Screw and Installed NM Cable Connector
• Standards/Approvals: CSA File No. LR49636|UL File No. E170558
• Mounting: Screw
• Insulated: No
• Country of Origin: US
• Special Features: Includes Center Screw, Installed NM Cable Connector
• Series: FB
• Model Number: FB442
• Included Components: FB442
• Unit Count: 1.0 Count
• Installation Type: Screw-In
