Arlington DBVMA1C Low Profile Inbox For Foam Wall Systems Adjustable

Product Description

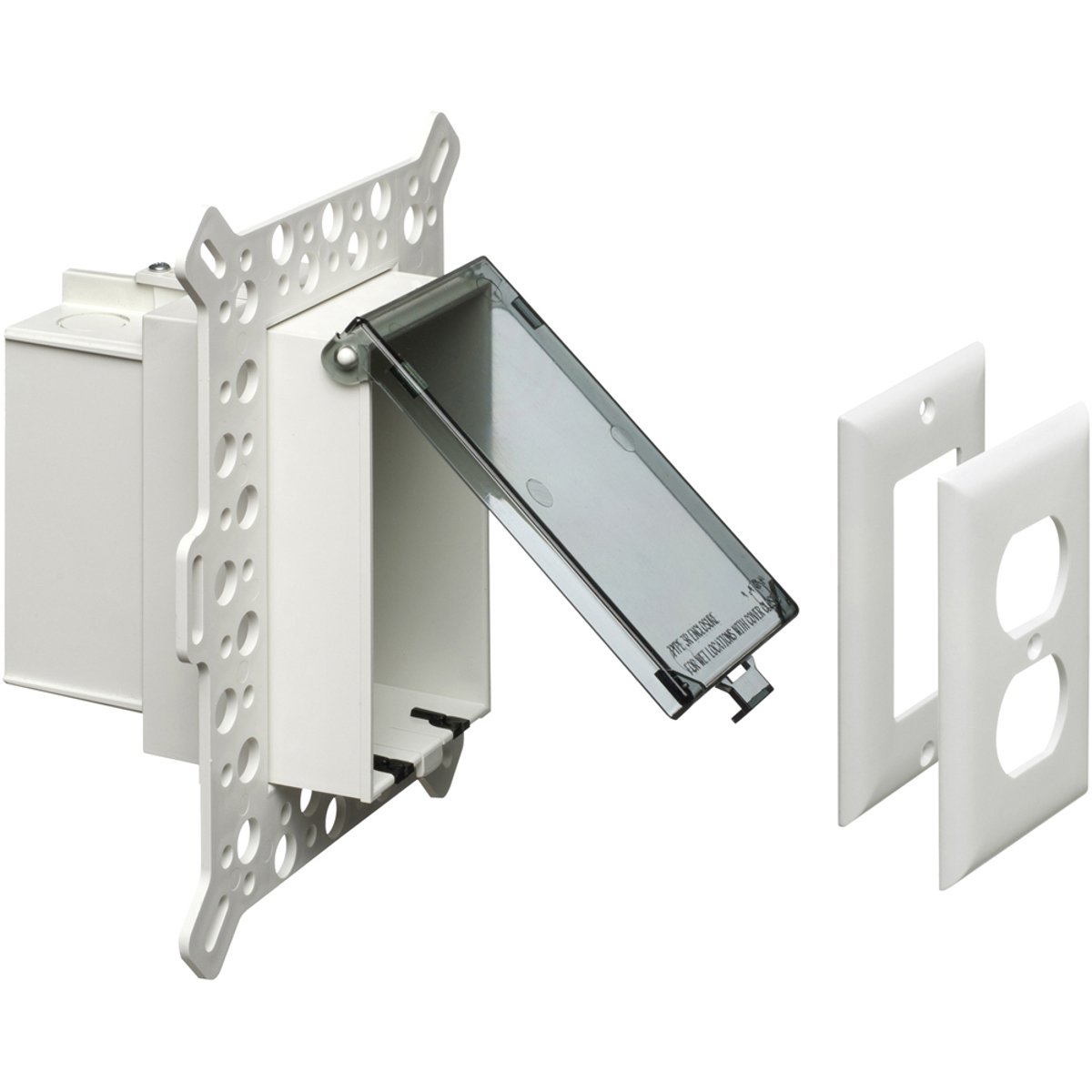

The Arlington DBVMA1C is a low profile inbox designed for foam wall systems. It adjusts from two and three-quarters inches to five inches and features a clear weatherproof cover for use in outdoor applications. The box is made of UV-rated plastic, ensuring durability and longevity.

• Adjustable depth for various foam board thicknesses.
• Weatherproof cover provides protection while in use.
• Meets UL and CSA standards for safety and compliance.

Product Highlights

Designed for easy installation in foam wall systems, the inbox eliminates the need for additional bubble covers and provides a clean finish.

Product Information

Standard Information

• Manufacturer: Arlington Industries
• Part Number: DBVMA1C

Technical Specifications

• Color: Clear/White
• Material: UV-Rated Plastic
• Application: For foam wall systems
• Capacity: 22 cu in
• Enclosure Type: NEMA 3R
• Dimensions: Length (9.058 in) x Width (7.012 in) x Height (5.160 in)
• Mounting Orientation: Vertical
• Number of Gangs: 1
• Number of Outlets: 1
• Standards/Approvals: UL Listed, CSA Certified
