Arlington DBHR1C Low Profile Inbox for Flat Surface Retrofit Construction Horizontal Clear

Product Description

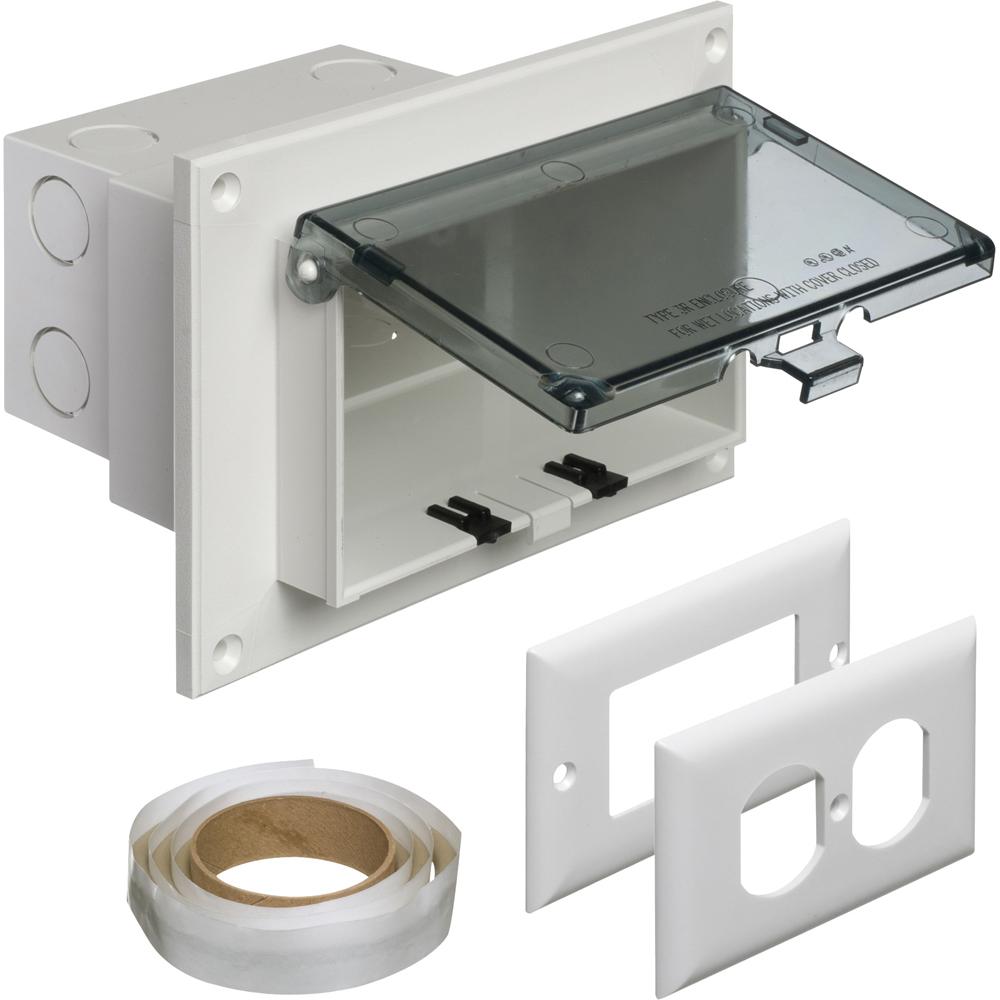

The Arlington DBHR1C is a low-profile inbox designed for flat surface retrofit construction. This one-piece electrical box features a weatherproof clear cover that maintains protection during use. It is suitable for horizontal mounting and offers a capacity of twenty-two cubic inches. The box is compatible with most single gang wiring devices and is crafted from UV-rated plastic to ensure durability against outdoor elements.

• Weatherproof while in use extra duty cover
• Easy installation without the need for gaskets
• Compatible with standard indoor wall plates or GFCI cover plates

Product Highlights

This product is ideal for installation in existing structures and can be used with plywood, T-111, and similar materials. It provides an efficient solution for protecting electrical outlets and features a texturable surface for paintability.

Product Information

Standard Information

• Manufacturer: Arlington
• Type: Low Profile In Box

Technical Specifications

• Model Number: DBHR1C
• Cubic Capacity: 22 CU IN
• Color: Clear with White Base
• Material: UV Rated Plastic
• Dimensions: 7.186 inches L x 4.934 inches W x 5.16 inches D
• Enclosure Type: NEMA 3R
• Number of Gangs: 1
• Mounting Orientation: Horizontal
• Warranty: 1 Year Against Manufacturer Defects
