Arlington CPS50 Concrete Pipe Sleeve 5 Inches

Product Description

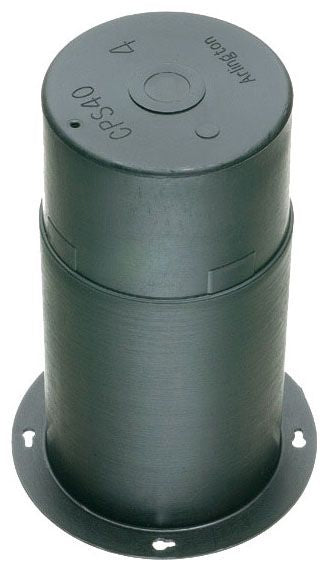

The ARLINGTON CPS50 is a 5-inch concrete pipe sleeve designed to create a clean, code-ready opening through poured concrete slabs and walls. The sleeve is set in place before the pour, holding the void open so conduit, pipe, or other utilities can pass through once the concrete cures. Electricians, plumbers, and general contractors use this sleeve on new construction projects where penetrations must be planned ahead of the pour. The lightweight design, weighing 0.430 pounds, makes handling on the job site straightforward before the form is set.

The CPS50 is suited for residential and light commercial construction where a 5-inch diameter penetration is required through a concrete foundation wall, floor slab, or structural deck. It is installed before concrete is poured and removed or left in place depending on the application. Typical use cases include utility service entries, drain rough-ins, and conduit runs that must pass through a concrete structure in a controlled, protected manner.

Key Features

• 5-inch diameter opening for pipe or conduit penetrations through concrete
• Set-before-pour design creates a clean, finished void without core drilling
• Lightweight at 0.430 pounds for easy handling and positioning before the form is set
• Eliminates post-pour core drilling on planned penetration locations
• Suitable for residential and light commercial new construction applications

Compatibility

Designed as an OEM-style sleeve for 5-inch penetrations through poured concrete slabs and walls in new construction applications.

Installation Notes

Install the CPS50 sleeve prior to pouring concrete, securing it to the form so it does not shift during the pour. Electricians and plumbers should coordinate placement with the concrete crew to ensure the sleeve is positioned at the correct height and alignment before concrete is placed. Follow local building codes and applicable NEC or IPC requirements for penetration sizing and sealing after the utility is run through the sleeve. Once concrete has cured, inspect the sleeve opening and apply an approved fire-stop or sealant as required by local code.

Technical Specifications

• Diameter: 5 inches
• Weight: 0.430 pounds
• UPC: 01899772154

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: CPS50
