Product Description

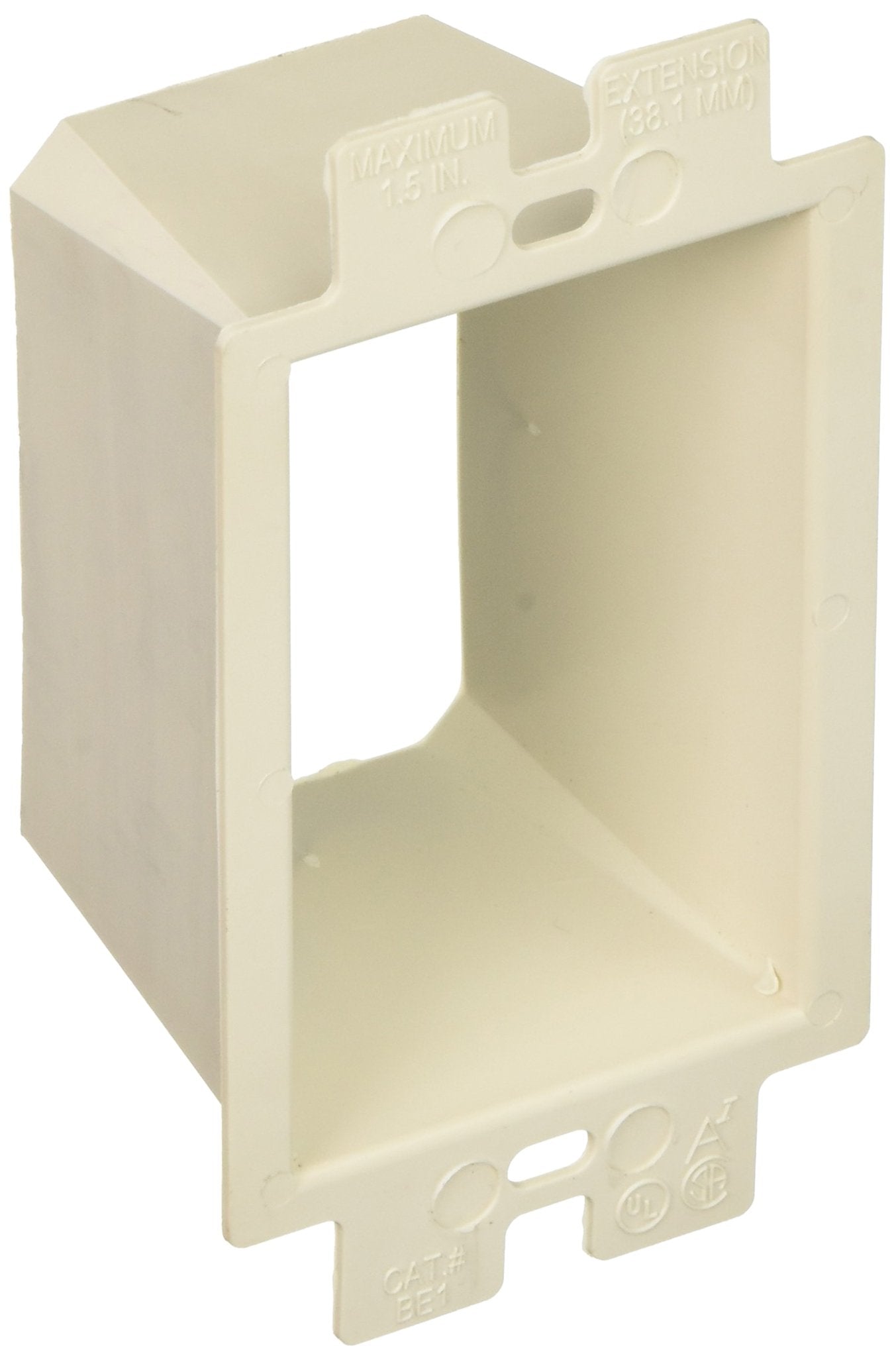

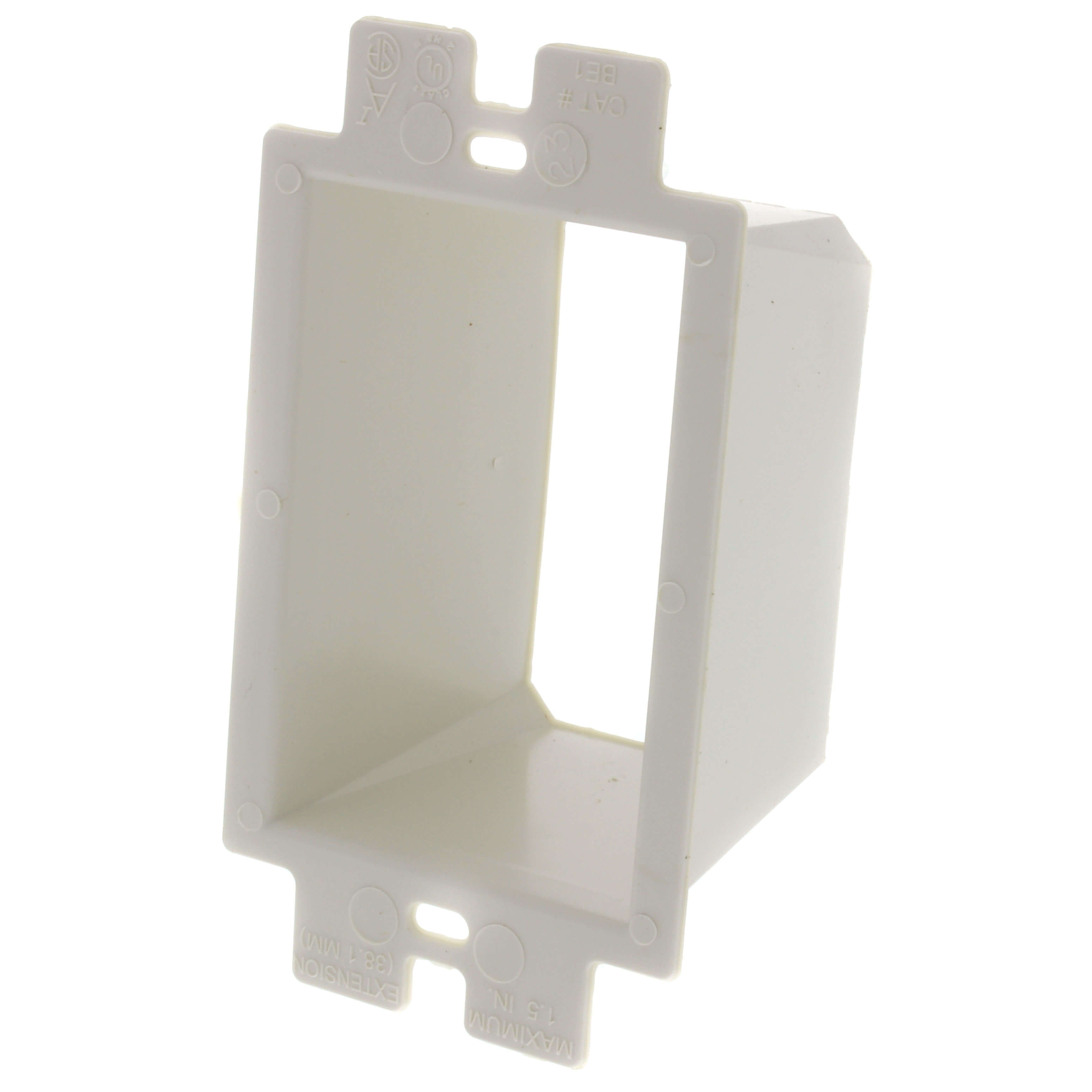

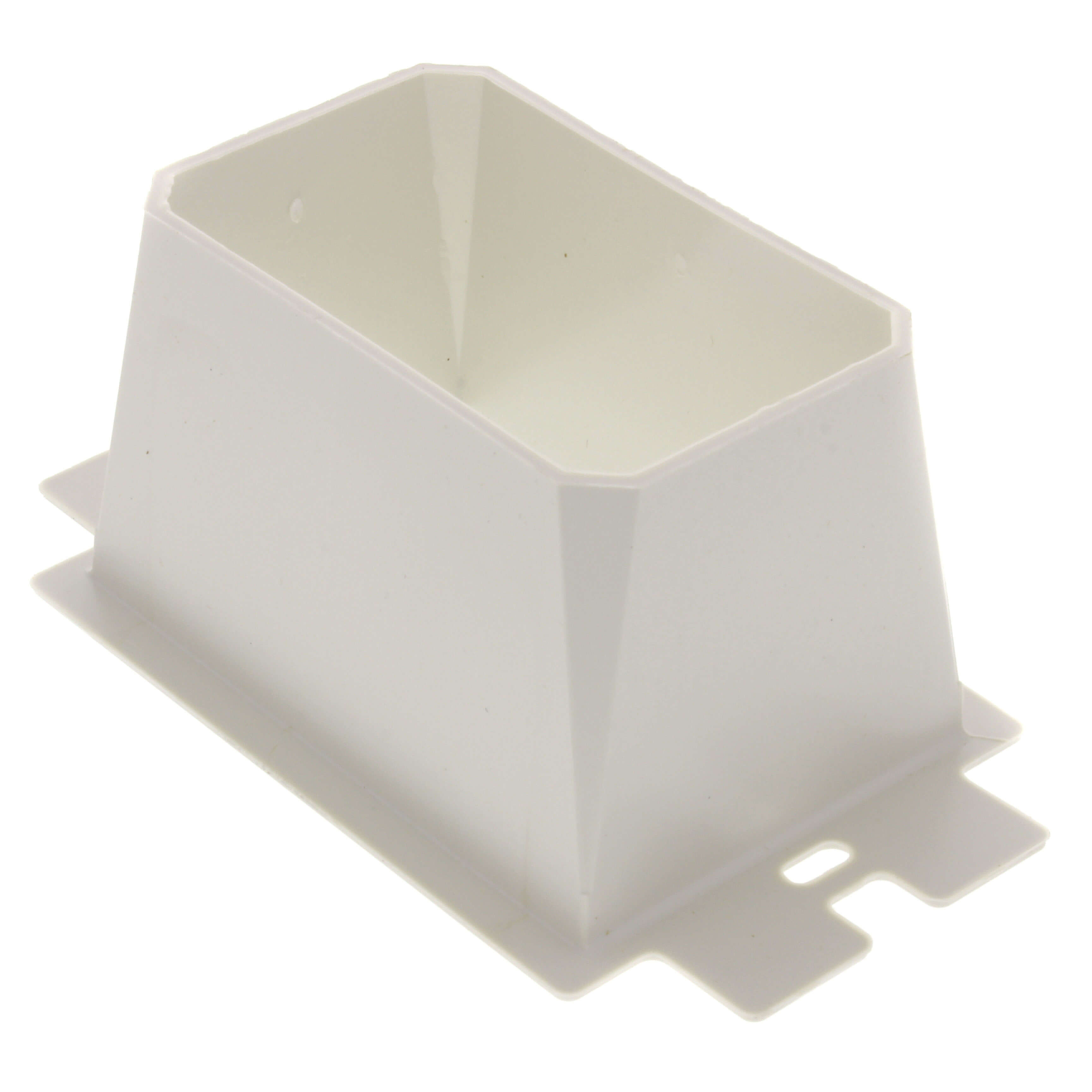

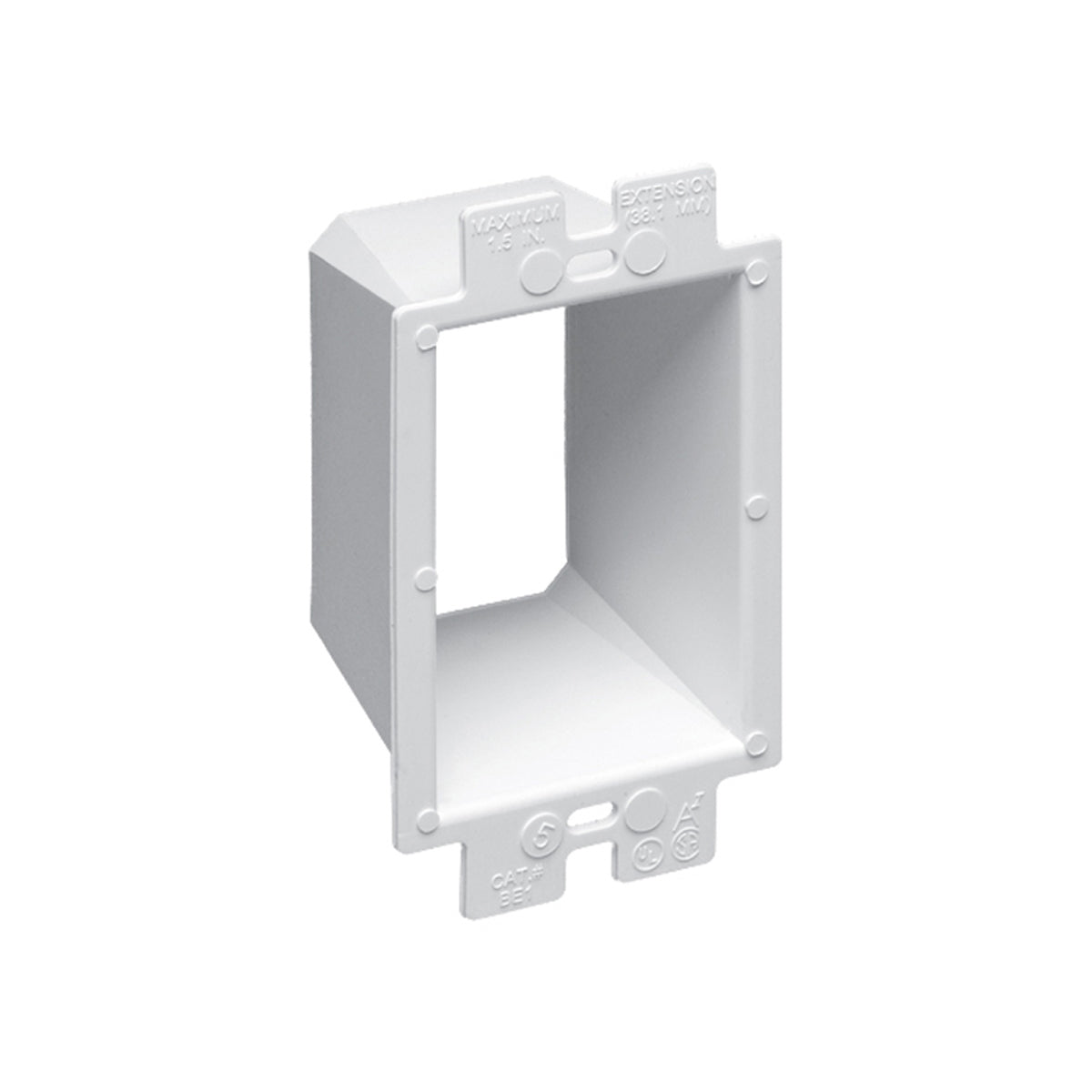

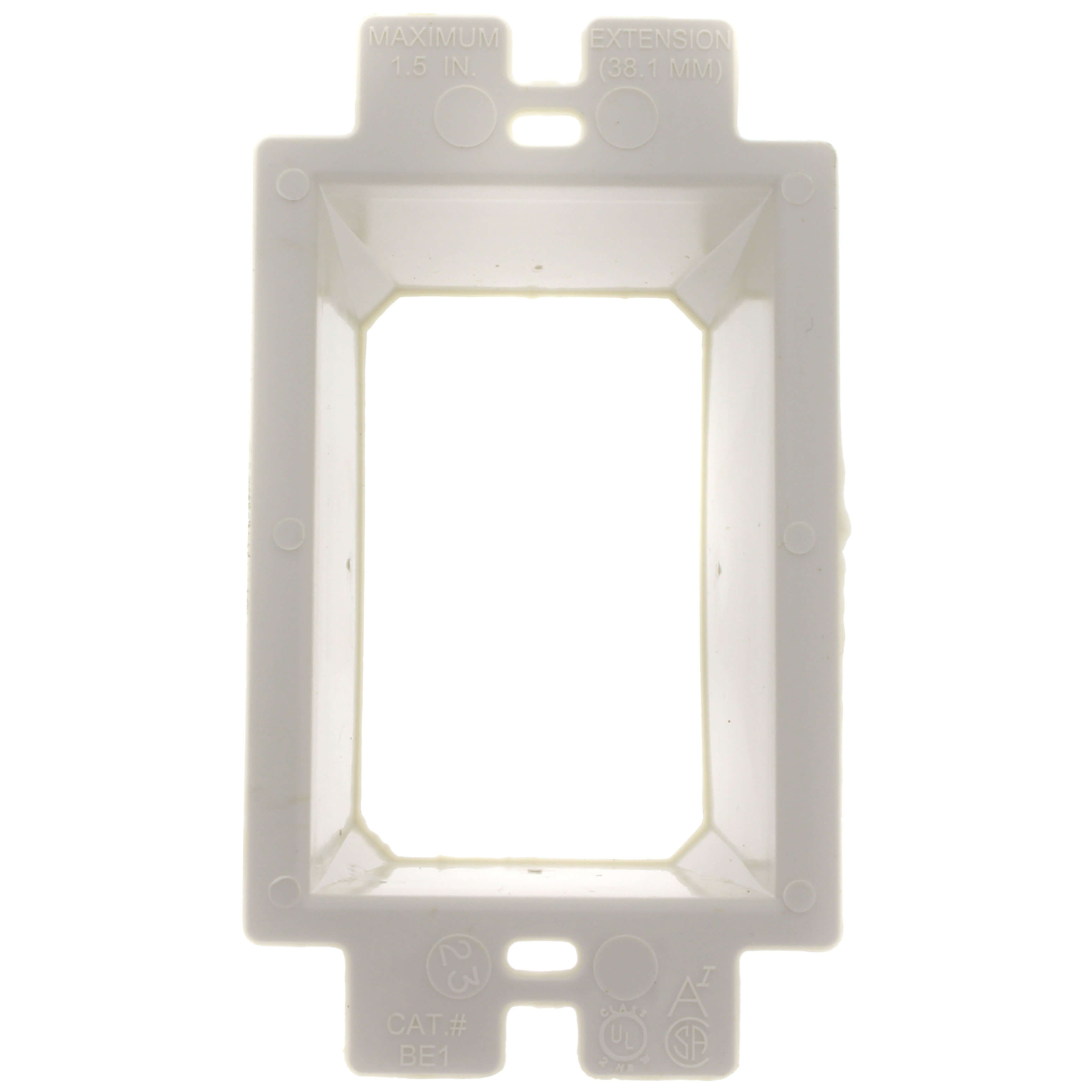

The ARLINGTON BE1 box extender extends set back metal or non-metallic electrical boxes. This non-conductive extender works with any 1-gang device and most steel and non-metallic outlet boxes. It provides a level, fully supported wiring device that's flush with the wall surface. Prevents arcing and shorting in steel boxes.
- Levels and supports the wiring device where the box is set back from the wall surface (adjusts up to a 1-1/2 in box extension)
- Functions with all standard devices, switches and GFCIs
- Manufactured from 105 deg C continuous use 94 V-0 rated flame-retardant plastic for safer installations
Product Highlights
Extends electrical boxes up to 1-1/2 inches. Made of heavy duty non-conductive plastic with a 2 hour fire rating.
Product Information
Standard Information
-
Brand: ARLINGTON
-
Manufacturer Part Number: BE1
-
Country of Origin: US
Technical Specifications
-
Material: Plastic
-
Mounting Type: Old Work
-
Item Model Number: BE1
-
Part Number: LV1RP
-
Number of Gangs: 1
-
Width: 2.313 in
-
Length: 4.188 in
-
Standards: UL Listed, CSA Certified
-
Type: 1-Gang Box Extender
-
Size: 2.313 Inch x 4.188 Inch
-
Shape: Rectangular
-
Depth: 1.813
-
Item Name: Box Extender
-
For Use With: Handy Boxes and 4 Inch Square Electrical Boxes
-
Manufacturer Name: Arlington
-
Manufacturer Part Number: BE1
-
Brand Name: Arlington
-
Country Of Origin: United States of America
-
Mounting: Screw
-
Gang: 1
-
Standard: cULus
-
Insulated: No
-
Application: For handy boxes and 4 in square electrical boxes with plaster rings for a single switch or receptacle, standard devices, switches and GFCIs
-
Standards/Approvals: CSA Certified|UL Listed|cULus Listed|2014 NEC Article 314.20
-
Trade Size: 1 1/2IN
-
Description: ARL BE1 BOX EXTENDER
-
Product Name: Box Extender
-
Number Of Outlet: 1
-
Special Features: Made of heavy-duty, non-conductive plastic
-
Stripped Catalog Number: BE1
-
Catalog Description (MFR): Box Extender, levels and supports the wiring device where the box is set back from the wall surface extends the box up to 1-1/2". 2 hour fire rating. Single Gang.
-
Invoice Description (MFR): BOX EXTENDER
-
Concatenated Invoice Description: BOX EXTENDER
-
Overall Dimension: 2.313 Inch Width x 1.813 Inch Depth x 4.188 Inch Height
-
Extend Size: 1-1/2 Inch
-
Approval: UL (Canada and US)
-
Buy Line: ARL
-
Manufacturer: Arlington Industries
-
Category 1: Electrical Supplies
-
Category 2: Electrical Enclosures & Boxes
-
Category 3: Non-Metallic Outlet & Mounting Boxes
-
Category 4: Box Extenders
-
Final Category: Box Extenders
-
Box Depth: 1-1/2 in.
-
Box Shape: Rectangle
-
Comes With: (1) Single Gang Box Extender
-
Style: Compact
-
Finish Type: Painted or Powder Coated
-
Installation Type: Recessed
-
Use With: Metallic or Non-Metallic Electrical Boxes
-
Extension: 1-1/2 Inch
