Arlington AS7 Anti-Short Bushing 1-1/2 inches

Product Description

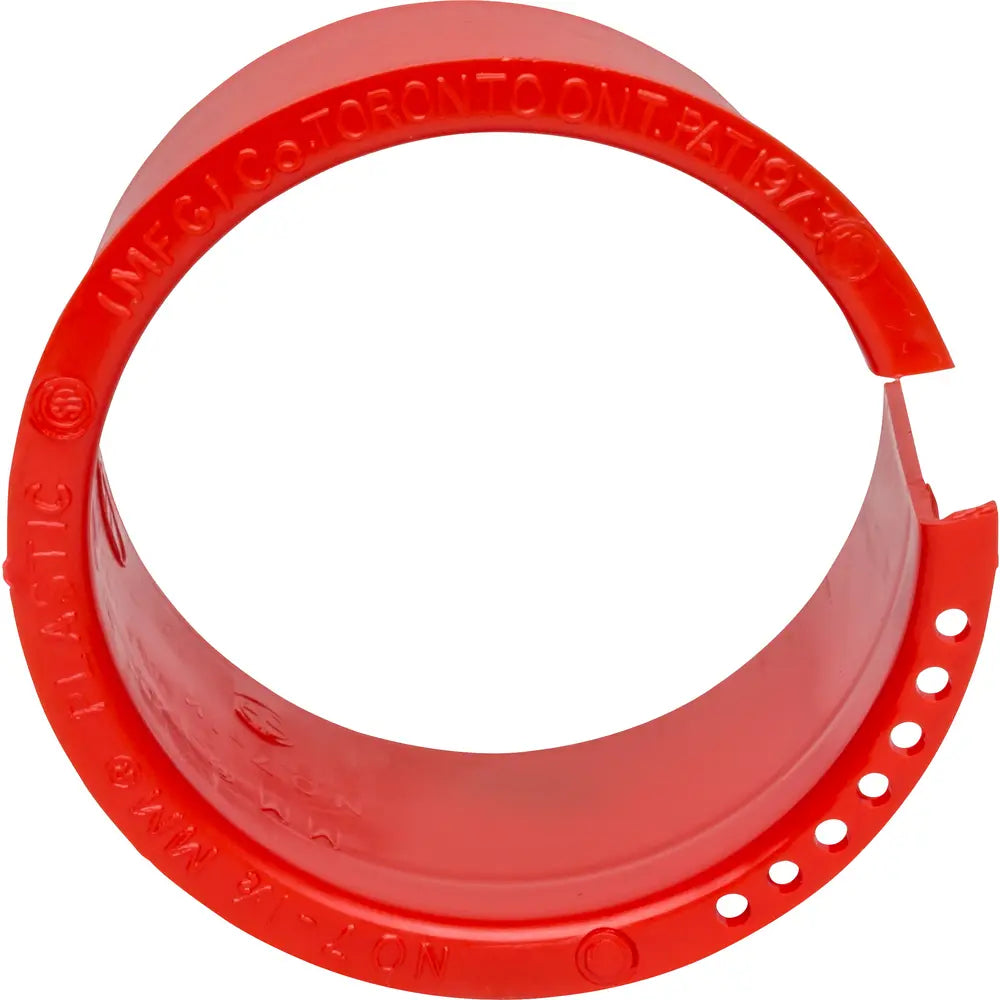

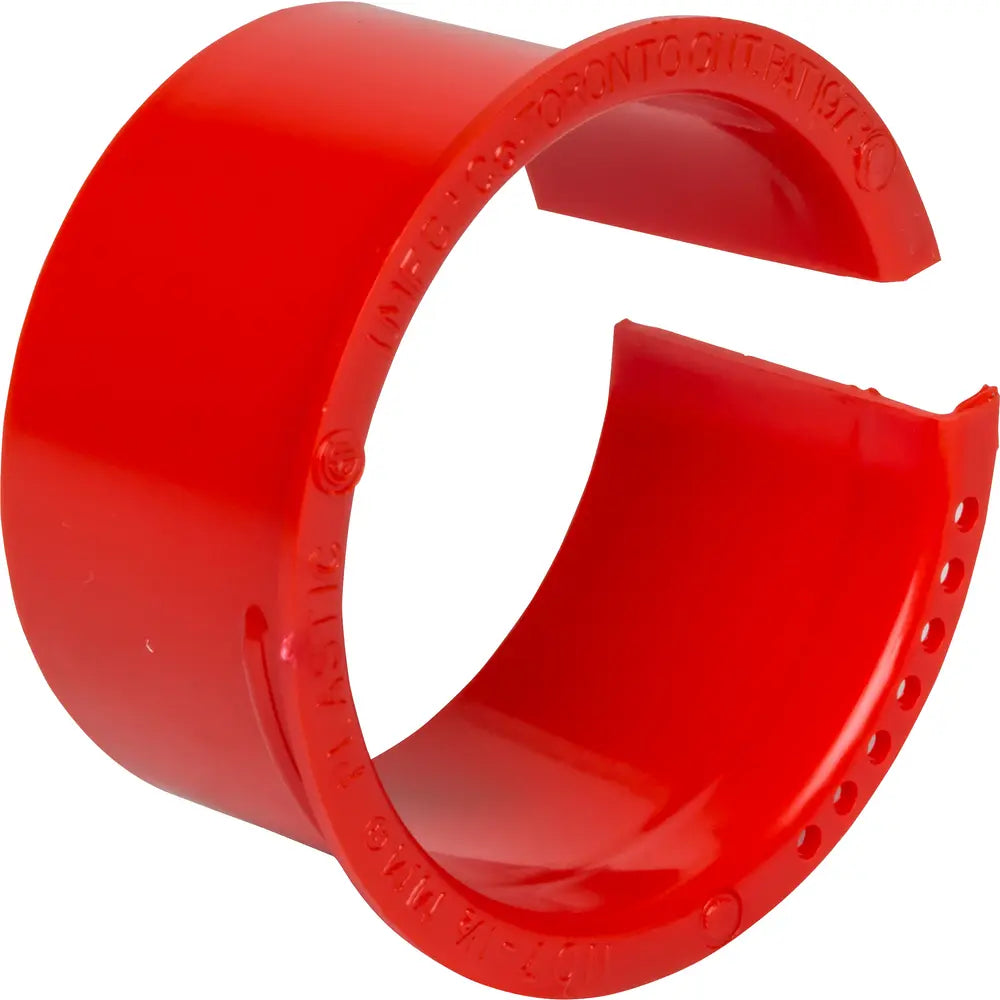

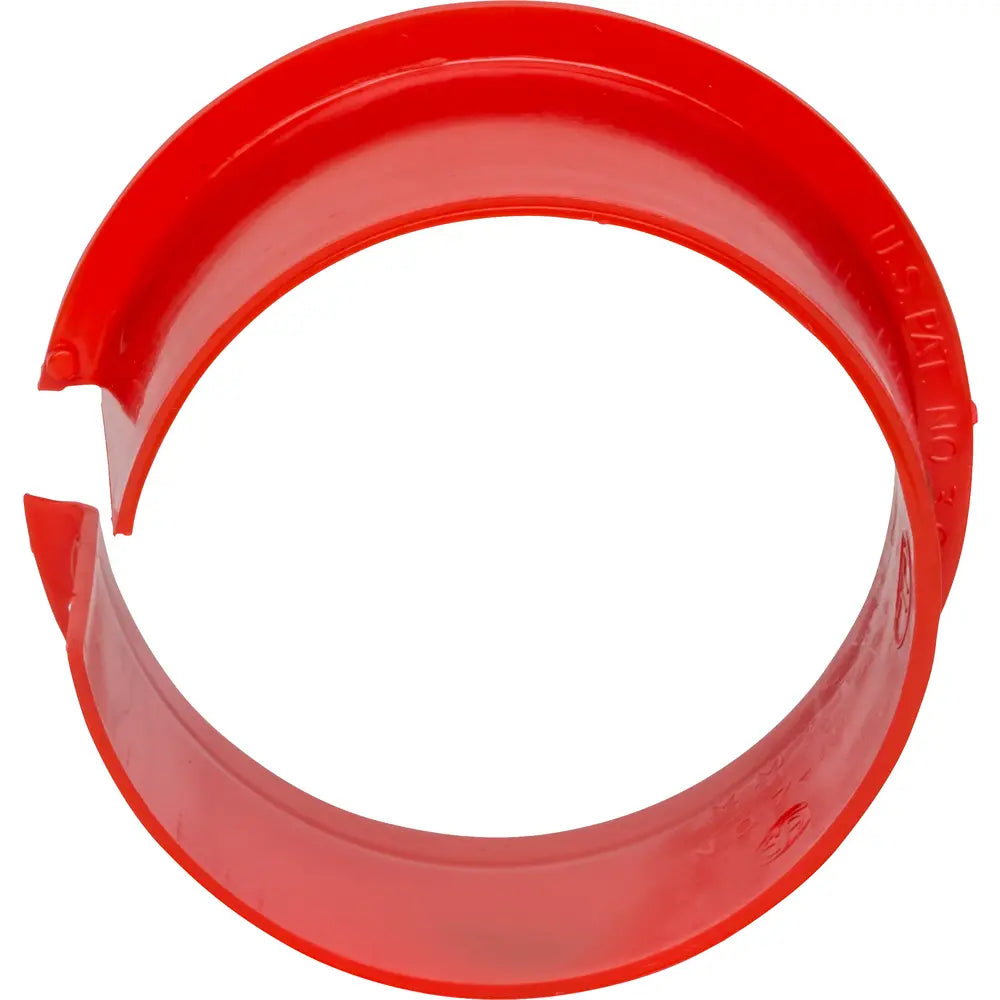

The ARLINGTON AS7 anti-short bushing is made of plastic and designed to protect cable sheathing. This bushing fits a 1-1/2 inch trade size and accommodates cable ranging from 4/3 AWG to 1000 MCM. It is suitable for flexible metallic conduit, armored cable, and metal clad cable.

• Trade size of 1-1/2 inches
• Constructed from plastic
• Protects cable sheathing from damage

Product Highlights

This anti-short bushing is ideal for protecting cable in conduit and armored cable applications.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: AS7
• Country of Origin: CA

Technical Specifications

• Type: Anti-Short Bushings
• Color: Red
• Material: Plastic
• Standard: UL, CSA
• Trade Size: 1-1/2 in
• AC Cable Size: 4/3 AWG to 1000 kcmil
• Application: For flexible, AC and MC cables
• Manufacturer Part Number: AS7
• Brand: Arlington
• Cable Sizes: 4-3/0, 4-4/0, 3-4/0, 3-250MCM, 3-300MCM, 2-250MCM, 2-300MCM, 2-350MCM, 1-1000MCM
• Diameter: 1 1/2 in
• Conductor Compatibility: four 4/0 AWG, three 4/0 AWG, four 3/0 AWG, three 250 MCM, two 250 MCM, three 300 MCM, two 300 MCM, two 350 MCM and one 1000 MCM conductors
• Use: For Indoor Use
• UL Listed: E62807
• CSA Certified: LR49636
• ECCN: EAR99
• UNSPSC: 39121312
