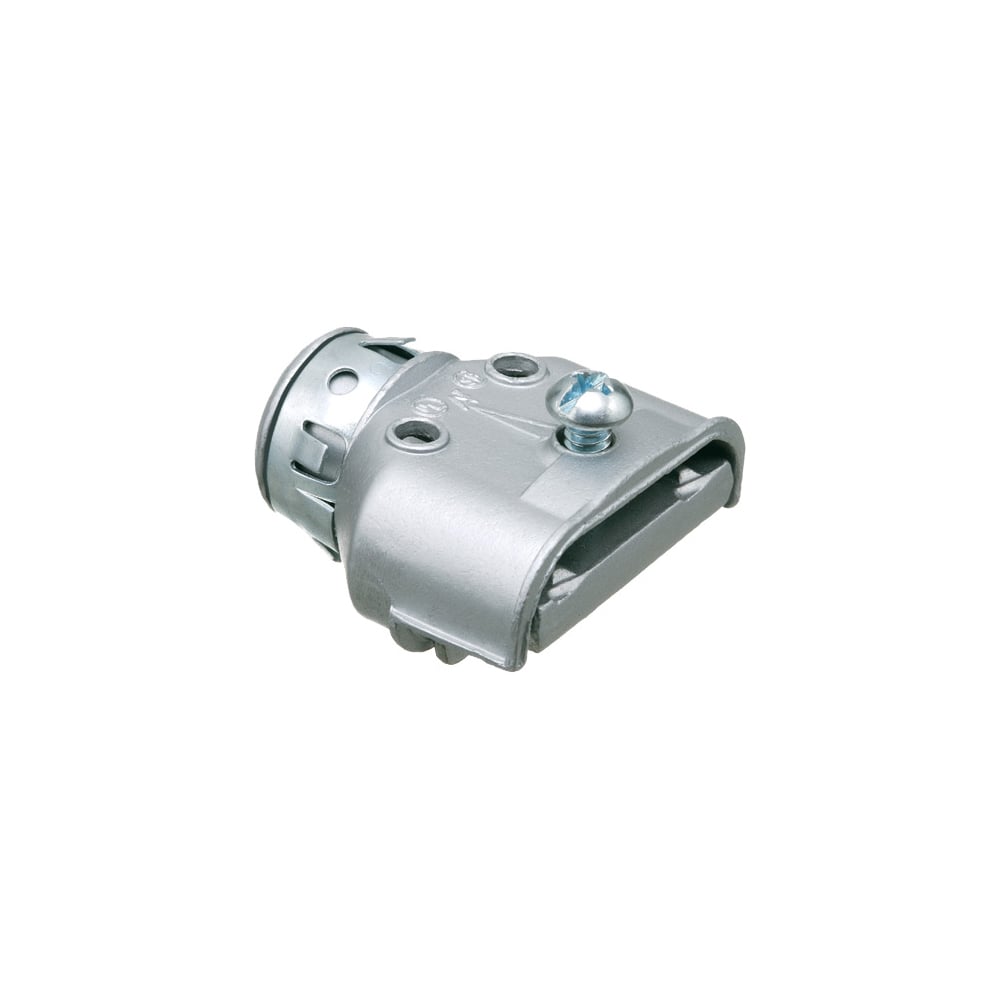

Arlington 846ST Duplex Single Cable Connector 3/8 in Trade 1/2 in Knockout

Product Description

The Arlington 846ST is a duplex single cable connector designed for use in armored and metal clad cable applications. This connector snaps into a half-inch knockout and features an external spring steel clip. It is suitable for cable openings ranging from zero point one five inches to zero point six one two inches.

• Concrete tight when taped
• Manufactured from die-cast zinc
• Compatible with AC, MCI, MCI-A, and NM cables

Product Highlights

This duplex connector allows for easy installation and provides a secure connection for cables used in electrical systems.

Product Information

Standard Information

• Manufacturer: Arlington Industries
• Part Number: 846ST

Technical Specifications

• Type: Duplex Single
• Knockout Size: 1/2 inches
• Cable Openings: 0.15 to 0.612 inches
• Color: Silver
• Material: Die Cast Zinc
• Dimensions: Length 1.622 inches x Width 0.866 inches x Height 1.668 inches
• Connection Type: Screw
• Standards: UL File No. E60812, CSA File No. LR49636
