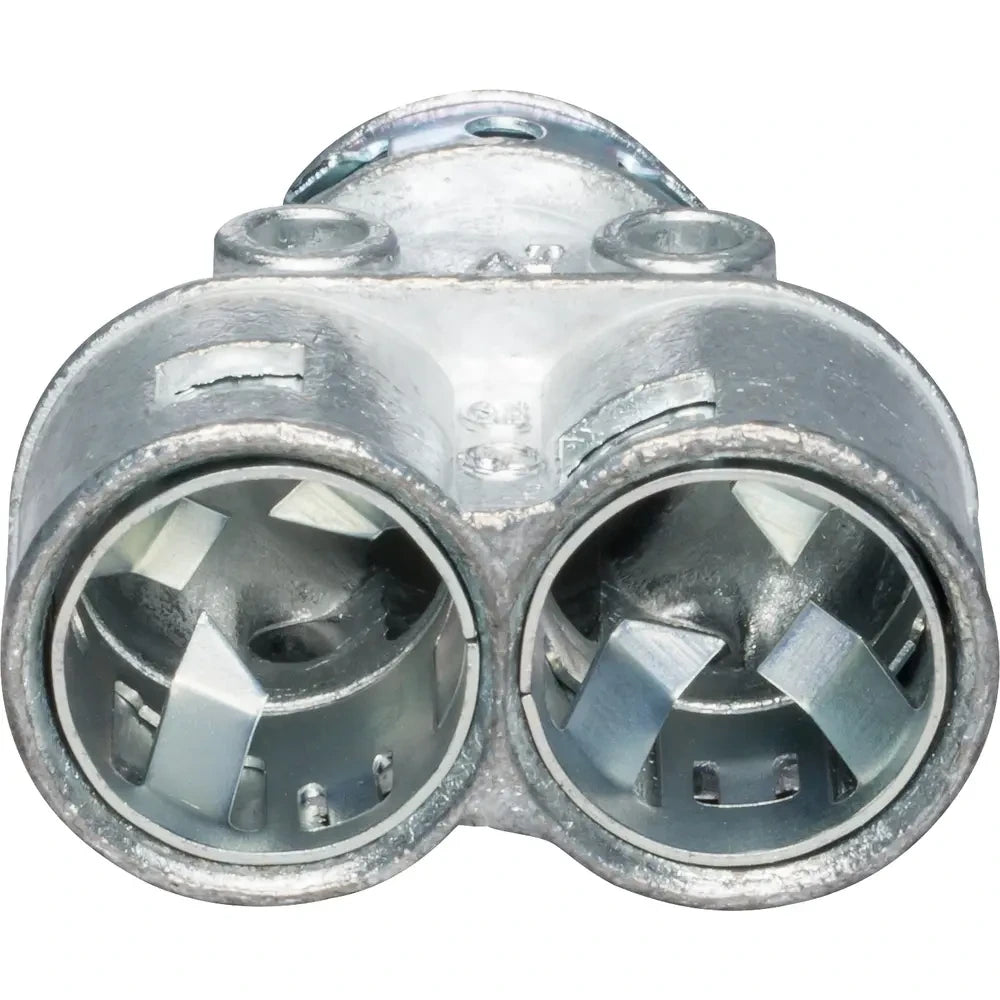

Arlington 3838ST snap2it Duplex Connector, 3/8 inches

Product Description

The Arlington 3838ST SNAP2IT duplex connector is a zinc die-cast, 1/2" Knockout MC cable connector that snaps quickly onto the conduit with an internal spring steel clip and then snaps into the knockout with an external spring steel clip. No tools are required. It is concrete tight when taped and has a rectangular end stop. It is suitable for AC/MCI-A/HCF/MCI/Flexible Metal Conduit cable.

• Snaps quickly onto conduit with spring steel clip
• No tools required for installation
• Concrete tight when taped

Product Highlights

The Arlington 3838ST duplex connector provides a tool-free, secure, and concrete-tight connection for various cable types.

Product Information

Standard Information

• Brand: Arlington
• Manufacturer Part Number: 3838ST
• Country of Origin: USA

Technical Specifications

• Type: AC/MC Duplex Connectors
• Width: 1.605 Inches
• Height: 1.772 Inches
• Material: Zinc
• Standard: cULus Listed
• Connection: Snap-In
• Country of Origin: US
• Cable Type: AC/MCI-A/HCF/MCI/Flexible Metal Conduit
• Trade Size: 3/8 in
• Knockout Size: 1/2 in
• Cable Openings: (2) 0.405 to 0.612 in
• Application: For steel and aluminum flexible conduit
• Standards/Approvals: CSA File No. LR49636|cULus Listed|UL File No. E18304
• OD Min: 0.41 in.
• OD Max: 0.61 in.
• Installation: Snap-In-KO, Snap-In-Cable
• Angle: Straight
