Argo Z213 Arm-3P 3 Zone Relay With Priority

Product Description

The Argo Z213 Arm-3P is a 3 zone relay designed for managing hot water heating systems. It operates on a 120VAC input and is perfect for hydronic systems. This unit supports circulator management and boiler control for up to three zones, with the possibility to expand to fifteen zones using add-on modules.

• Built-in electronic fuse with auto-reset feature
• Robust transformer capable of managing up to fifteen zones

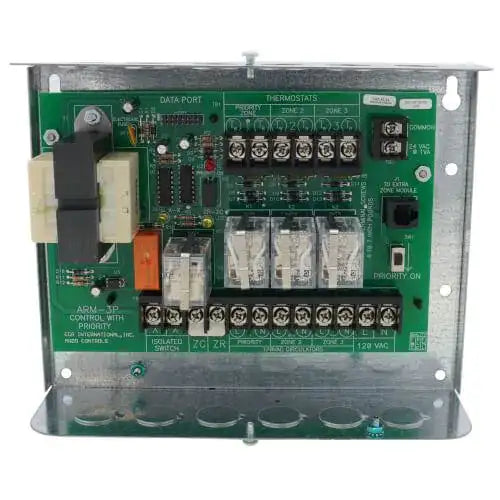

• Durable double-sided printed circuit board construction

Product Highlights

This relay is suitable for both residential and light commercial settings requiring discrete zone control with priority functions and diagnostics. Preconfigured settings along with diagnostic indicators facilitate quick setup and minimize service callbacks.

Product Information

Standard Information

• Brand: Argo
• Item Type: Switching Relays

Technical Specifications

• MPN: Z213
• Amperage Rating: 7.2 A
• Frequency Rating: 60 Hz
• Power Rating: 30 VA
• Voltage Input: 120 VAC
• Thermostat Voltage: 24 VAC
• Transformer Rating: 30 VA
• Relay Load Rating: 1/3 hp motor
• Boiler Shut-Off Delay: 5 seconds
