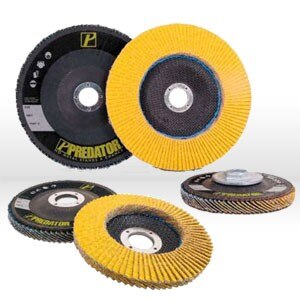

Arc Abrasives 71-10816AF Flap Disc Type 29 80 Grit 4-1/2 in

Product Description

The ARC ABRASIVES 71-10816AF is a Type 29 flap disc designed for general-purpose grinding and blending on metal and composite surfaces. Measuring 4-1/2 inches in diameter with a 5/8 inches-11 threaded hub, it mounts directly to standard angle grinders. The 80-grit aluminum oxide abrasive delivers a balance of stock removal and surface finish suited to production and field work alike. Cotton backing reinforces each flap, adding structural rigidity and durability through the full life of the disc. Installers and fabricators in metalworking, HVAC fabrication, and structural trades will find this disc a reliable everyday tool.

This flap disc is built for use on mild steel, aluminum, and composite materials. The Type 29 conical angle is optimized for aggressive material removal on flat and contoured surfaces, making it well suited for weld blending, edge work, and surface preparation before coating or welding. It is commonly used in shop and field environments where a single disc needs to handle both grinding and finishing passes without swapping tooling.

Key Features

• Type 29 conical profile for aggressive grinding on flat and contoured surfaces
• 80-grit aluminum oxide abrasive balances stock removal with finish quality
• 4-1/2 inches diameter with 5/8 inches-11 threaded hub fits standard angle grinders
• Cotton backing adds strength and extends disc service life
• Suitable for mild steel, aluminum, and composite materials

Compatibility

Designed as a general-purpose replacement flap disc for standard angle grinders accepting a 5/8 inches-11 threaded arbor.

Installation Notes

Installation should be performed by a qualified operator familiar with angle grinder safety practices. Confirm the grinder's maximum RPM rating meets or exceeds the disc's rated speed before mounting. Always power down and disconnect the grinder from its power source before changing discs. Wear appropriate PPE including a face shield and gloves during disc changes and operation.

Technical Specifications

• Disc Diameter: 4-1/2 inches
• Arbor Size: 5/8 inches-11
• Disc Type: Type 29
• Grit: 80
• Backing Material: Cotton
• Weight: 0.17 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: ARC ABRASIVES
• Manufacturer Part Number: 71-10816AF
