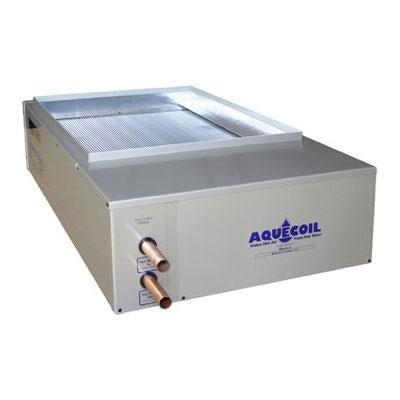

Aquecoil hhu-mi-3 Hydronic Heating Unit

Product Description

The AQUECOIL hhu-mi-3 is a hydronic heating unit designed to work alongside a compatible air handler and a hot water source to deliver residential space heating. It extracts heat energy from hot water and uses the air handler to distribute warm air throughout the conditioned space. The cabinet is constructed from rust-proof aluminum with a baked enamel finish and is fully insulated with high-R rigid foam. Design Certified and Listed to meet UL and CSA Standards, and tested to comply with ANSI/NSF 61-2012, the hhu-mi-3 is installed by HVAC technicians as a direct alternative to a furnace or heat pump for space heating applications.

The hhu-mi-3 is intended for residential space heating in installations where a hot water source such as a gas-fired water heater or boiler is already present or planned. It mounts directly onto the air handler's discharge or return side and supports both horizontal and vertical configurations. This makes it well suited for retrofit and new-construction applications where conventional furnace or heat pump heating is not preferred or practical. The unit is sized specifically for Mitsubishi large air handlers.

Key Features

• Mounts directly onto the air handler discharge or return in horizontal or vertical orientation
• Heavy-duty rust-proof aluminum cabinet with baked enamel finish
• Fully insulated with high-R rigid foam for thermal efficiency
• Compatible with any hot water source providing sufficient BTUH output
• Optional 230-volt or 115-volt circulation pump for integration with air handler wiring and controls
• Optional water-lubricated, low-wattage circulation pump requires no maintenance
• Optional no-lead valve kit includes full-port ball valves, bleed ports, and swing check valves
• Design Certified and Listed to UL and CSA Standards; tested to ANSI/NSF 61-2012

Compatibility

Designed for use with Mitsubishi large air handlers. Accepts any hot water source with sufficient BTUH capacity, including gas-fired water heaters and boilers. Supports optional return-side air handler configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with hydronic heating systems and air handler integration. Shut off the hot water supply and disconnect power to the air handler before beginning installation or service. Plumbing connections must comply with applicable local codes and ANSI/NSF 61-2012 requirements for potable or heating water systems. Do not operate the unit without verifying that the circulation pump and hot water source are properly commissioned and that all bleed ports have been purged of air.

Technical Specifications

• Cabinet Material: Rust-proof aluminum with baked enamel finish
• Insulation: High-R rigid foam
• Circulation Pump Options: 230-volt or 115-volt; water-lubricated low-wattage
• Certifications: UL Listed, CSA Certified, ANSI/NSF 61-2012 compliant
• Warranty: 3-Year Limited

Standard Information

• Brand: AQUECOIL
• Manufacturer Part Number: hhu-mi-3
