Aquatherm 1040200995 8 inches Electrofusion Coupling

Product Description

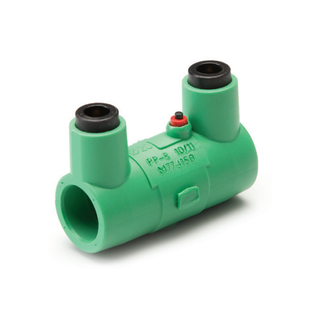

The AQUATHERM 1040200995 8" Electrofusion Coupling joins Aquatherm pipe (PP-R, RP(RCT)) using electrofusion, a technique where a coupling with embedded heating element wires is slipped over pipe ends. Applying electrical current generates heat, melting the PPR of the coupling and pipe together, forming a fusion bond. It cannot be used in conjunction with UV pipe.

• Cannot be used in conjunction with UV pipe.
• Electrofusion is another technique for joining Aquatherm pipe (PP-R, RP(RCT))
• Can be used in some cases where normal fusion equipment cannot be used because of space or height restrictions

Product Highlights

Electrofusion couplings can be used in some cases where normal fusion equipment cannot be used because of space or height restrictions or when making a final connection in a small space where the rest of the piping is already rigidly in place.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1040200995

Technical Specifications

• Nominal Size: 8 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Method Of Manufacturer: Electrofusion
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 200 X 243 MM Socket End, 105 MM Center To End
