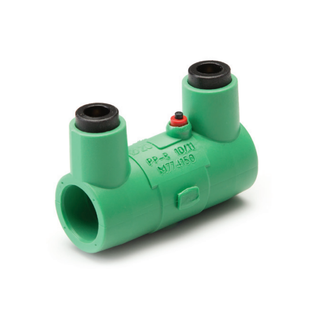

Aquatherm 1040090991 3 inches Electrofusion Coupling

Product Description

The AQUATHERM 1040090991 is a 3" electrofusion coupling designed for joining Aquatherm pipe (PP-R, RP(RCT)). This coupling utilizes embedded heating element wires within PP-R to create a fusion bond when electrical current is applied, melting the PPR of the coupling and pipe together. It conforms to ASTM F2389, DIN 16962, and DIN EN ISO 15874 industry standards.

• Nominal Size: 3 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen® PP-R
• Aquatherm pipes and fittings are made from polypropylene and designed for heat fusion.

Product Highlights

Electrofusion couplings can be used where normal fusion equipment cannot be used because of space or height restrictions.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1040090991

Technical Specifications

• Nominal Size: 3 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Method Of Manufacturer: Electrofusion
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 90 X 113.5 MM Socket End, 72.5 MM Center To End
