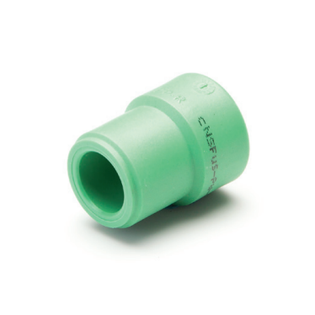

Aquatherm 1040090944 3 X 1-1/2 Aquatherm Green Bushing

Product Description

The AQUATHERM 1040090944 reducer bushing has a nominal size of 3 X 1-1/2 IN and is made of Fusiolen PP-R. This bushing features a socket weld connection type and complies with material standard ASTM F2389. It conforms to industry standards DIN 16962 and DIN EN ISO 15874. The female side is identified by a socket-fitting structure, and the male side has a beveled edge.

• Nominal Size: 3 X 1-1/2 IN
• Connection Type: Socket Weld
• Material: Fusiolen PP-R
• Female to male for use with standard fitting.

Product Highlights

Reducer bushing with socket weld connection, made from Fusiolen PP-R, designed for heat fusion, providing a strong connection.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1040090944

Technical Specifications

• Nominal Size: 3 X 1-1/2 IN
• Connection Type: Socket Weld
• Length: 75 MM
• Material: Fusiolen PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 50 X 68 MM Female Socket End, 90 MM Male Socket End, 51.5 MM Center To End
• Brand: Aquatherm
• MPN: 1040090944
• Product Type: Plastic Bushings
