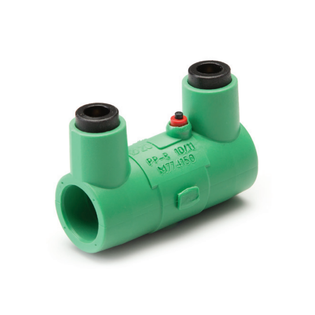

Aquatherm 1040063989 2 inches Electrofusion Coupling

Product Description

The AQUATHERM 1040063989 2" Electrofusion Coupling joins Aquatherm pipe using electrofusion, a technique where a coupling with embedded heating element wires is slipped over pipe ends. Applying electrical current generates heat, melting the PPR of the coupling and pipe together to form a fusion bond. This coupling can be used where normal fusion equipment cannot be used because of space or height restrictions.

• Nominal Size: 2 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen® PP-R
• Electrofusion method of manufacturer

Product Highlights

Electrofusion couplings are ideal for use in space or height restricted areas. Fusion joining provides a connection that is stronger than the pipe itself.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1040063989

Technical Specifications

• Nominal Size: 2 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Finish/Color: Green
• Method Of Manufacturer: Electrofusion
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 63 X 81.5 MM Socket End, 59 MM Center To End
• Item Name: Coupling
