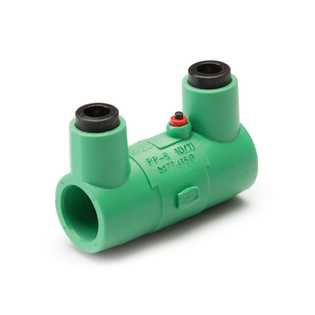

Aquatherm 1040040987 Electrofusion Coupling 1-1/4 IN

Product Description

The AQUATHERM 1040040987 Electrofusion Coupling is designed for joining Aquatherm pipe using electrofusion, a technique where a coupling with embedded heating element wires is slipped over pipe ends. Applying electrical current heats the coils, melting the PPR of the coupling and pipe together, forming a strong fusion bond. It is made of Fusiolen® PP-R material.

• Nominal Size: 1-1/4 IN
• Connection Type: Electro Socket Weld
• Material conforms to ASTM F2389 standard
• Manufactured using the electrofusion method

Product Highlights

This electrofusion coupling is suitable for use in confined spaces where standard fusion equipment is difficult to use. Compliant with Industry Standards DIN 16962, DIN EN ISO 15874.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1040040987

Technical Specifications

• Nominal Size: 1-1/4 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Method Of Manufacturer: Electrofusion
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 40 X 54 MM Socket End, 46 MM Center To End
