Aquatherm 1030160926 Green Fusion Outlet 6 X 1/2 IN

Product Description

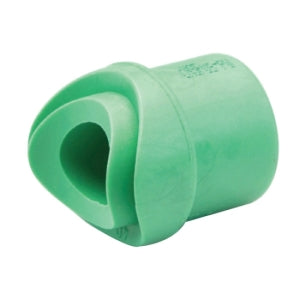

The AQUATHERM 1030160926 is a weld-in saddle fusion outlet with a nominal size of 6 X 1/2 IN. Constructed from Fusiolen PP-R material conforming to ASTM F2389 standards. It features a socket weld connection and complies with industry standards DIN 16962 and DIN EN ISO 15874. Dimensions include a 20 X 29.5 MM socket end, 25 MM saddle end, 160 MM saddle diameter, and 27.5 MM center to end.

• Weld-In Saddle Fusion Outlet
• Socket Weld Connection
• Made from polypropylene and designed for heat fusion

Product Highlights

This fusion outlet fitting is rated at SDR 6, with allowances for connection to other SDRs. It facilitates easy integration of Aquatherm piping with other systems.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030160926

Technical Specifications

• Nominal Size: 6 X 1/2 IN
• Connection Type: Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Socket End Size: 20 X 29.5 MM
• Saddle End Size: 25 MM
• Saddle Diameter: 160 MM
• Center To End: 27.5 MM
