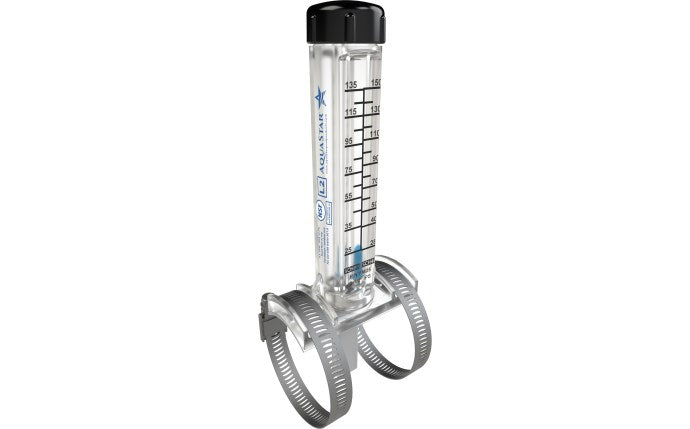

Aquastar Pool Products FM25 FlowStar Flow Meter Assembly 2-1/2 inches Pipe

Product Description

AquaStar Pool Products FM25 is a FlowStar flow meter assembly designed for installation on 2-1/2" PVC pool pipe. The unit features a one-piece molded acrylic body and a PVDF internal float resistant to corrosion, and mounts as a saddle to existing Schedule 40/80 pipe. The assembly uses a pitot tube design to measure flow rates and includes mounting clamps and a gasket for outdoor pool applications.

• One-piece molded acrylic body with PVDF internal float for corrosion resistance
• Saddle-mount design for 2-1/2" PVC Schedule 40/80 pipe; includes mounting clamps and gasket
• Pitot tube flow measurement; installation requires drilling and correct orientation to the flow arrow

Product Highlights

2-1/2" saddle-mounted pool flow meter with PVDF float, acrylic body, pitot tube design, and included clamps and gasket

Product Information

Standard Information

• Brand: AQUASTAR POOL PRODUCTS
• Manufacturer Part Number: FM25

Technical Specifications

• Brand: AquaStar Pool Products
• MPN: FM25
• Product Name: FlowStar Flow Meter Assembly
• Pipe Size: 2-1/2"
• Available Pipe Sizes: 1-1/2", 2", 2-1/2", 3", 4" (Schedule 40/80)
• Mounting Type: Saddle mount (vertical)
• Mounting Method: Saddle mounts to existing pipe; installation requires drilling into pipe
• Body Material: One-piece molded acrylic
• Internal Float Material: PVDF (polyvinylidene fluoride)
• Design: Pitot tube flow measurement
• Included Accessories: Mounting clamps and gasket
• Application: Pool
• Suitable For: Outdoor installations
• UPC: 0883612999524
• Manufacturer Part Number: FM25
