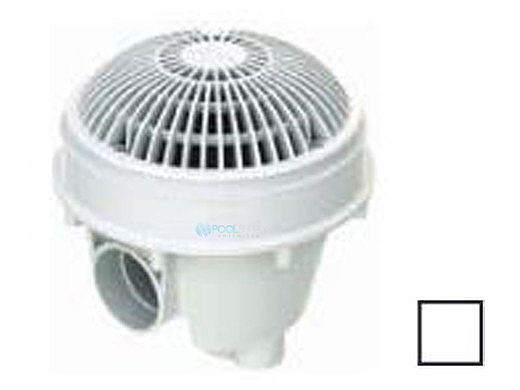

AquaStar 8MFSBAC101 Round MoFlow Suction Outlet Cover and Mud Frame with Adjustable Collar | 1-1/2 NPT and 2 Socket

Product Description

The AquaStar 8MFSBAC101 is a round MoFlow suction outlet cover and mud frame with an adjustable collar. It is designed for 1-1/2 NPT and 2 socket installations. This product is suitable for both single and multiple drain applications, providing flexibility in pool designs.

• Integrated adjustable collar for varied installations
• High flow rates for efficient water circulation
• Manufactured with UV-resistant polymers for long-lasting use

Product Highlights

This suction outlet cover ensures compliance with ANSI/APSP and NSF standards, making it a reliable choice for pool maintenance. Replace this cover every five years for optimum safety and performance.

Product Information

Standard Information

• Brand: AquaStar Pool Products
• MPN: 8MFSBAC101

Technical Specifications

• Diameter: Eight inches
• Flow Rates: Floor - 166 GPM at 3.2 fps, Wall - 113 GPM at 2.2 fps
• Opening Size: 16.6 square inches
• Material: ABS with stainless steel screws
• Replacement Cycle: Every five years
• Compliant Standards: ANSI/APSP 16-2011, NSF/ANSI 50-2009
